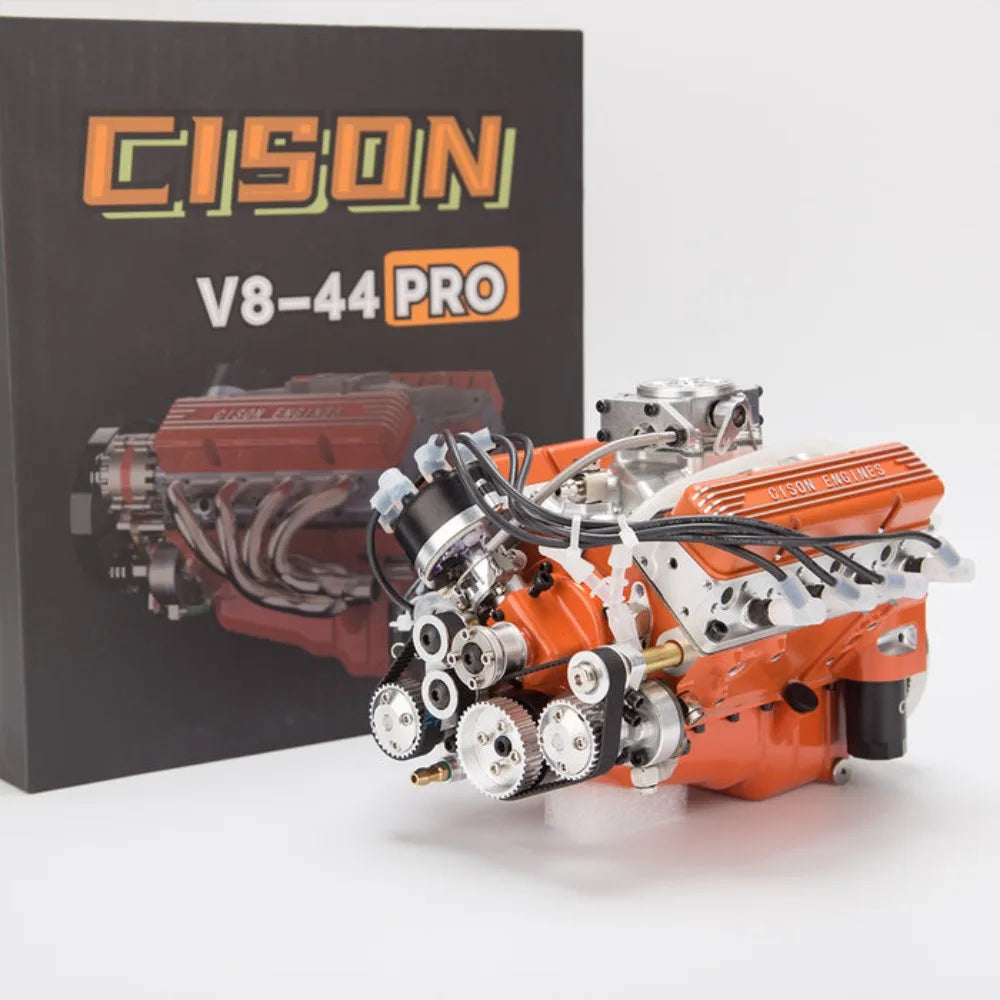

CISON V8 Engine 44CC 1/6 Scale Small Block Water Cooled Four Stroke Eight Cylinder Internal Combustion V8 Engine Model Kit


Know More About CISON Small-block V8 Pro Engine:

Age Recommendation: 14+

Specifications:

.Material: Metal
.Color: Orange
.Brand: CISON

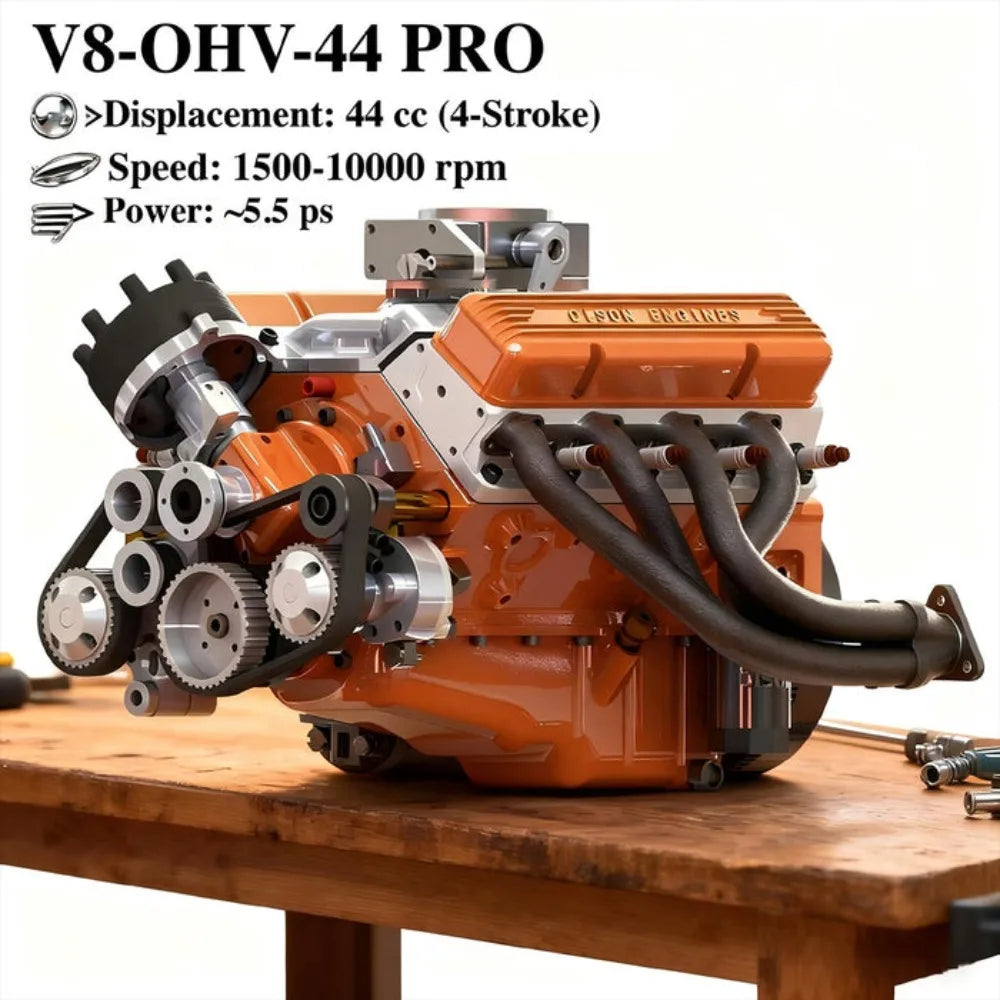

.Model: V8-OHV-44 PRO
.Product Name: Small-block V8 Gasoline Engine Model
.Form: Kit Version
.Engine Type: Gasoline Internal Combustion Engine
.Valve Train: Overhead Valve (OHV)
.Displacement: 44 cc（8 x 5.5cc）
.Cylinder: V-Type 8-Cylinder
.Stroke: 4-Stroke
.Cylinder Diameter: 18.5mm
.Stroke:20.5mm
.Speed: 1500-10000 rpm
.Power: Approxl. 5.5ps
.Cooling Method: Water Cooling
.Startup Method: Electric Starter
.Ignition Method: CDI Induction Ignition
.Spark Plug Type: Imperial Thread 3/16-40 Spark Plug (not included)
.Starting Power: 12V battery (not included)
.Lubrication Method: Independent Lubrication System
.Fuel: 92# Gasoline (92# or higher recommended)
Engine Oil: 4T engine oil (10W50 engine oil/25ML recommended)
.Product Weight: 1700g
.Package Weight: 3200g
.Product Dimensions: 15.6 x 11.7 x 9.9cm
.Package Dimensions: 19 x 21 x 19cm
.Packing: Gift box with top and bottom lid

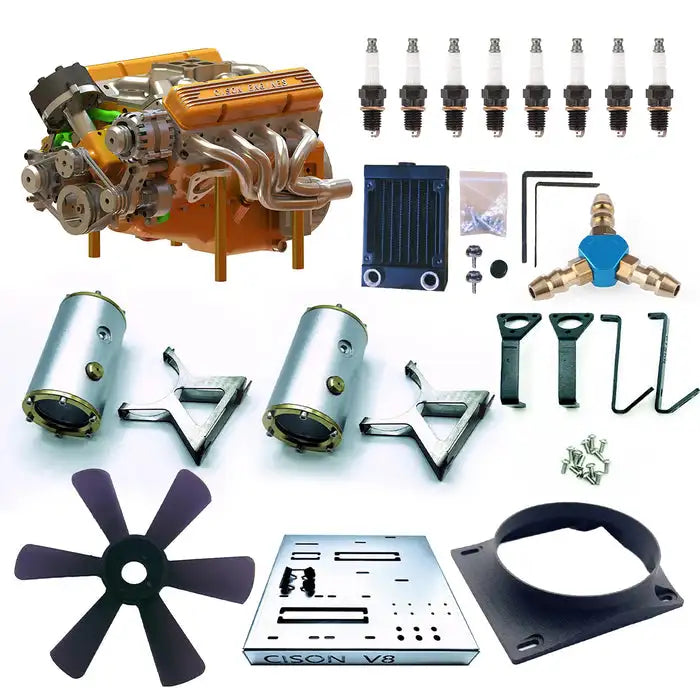

Package List:

.Engine Parts *1set
.Accessories *1set
.Instruction Manual *1



CISON Small-block V8 Pro 44cc Engine Kit is a 1/6 scale high-performance DIY model that replicates a real V8 gasoline engine with impressive detail and functionality. Featuring a top-mounted valve (OHV) design, this four-stroke, water-cooled internal combustion engine delivers powerful performance and mechanical authenticity. Perfect for RC model upgrades, engineering education, or desktop display,

New vs. Old – Key Upgrades:

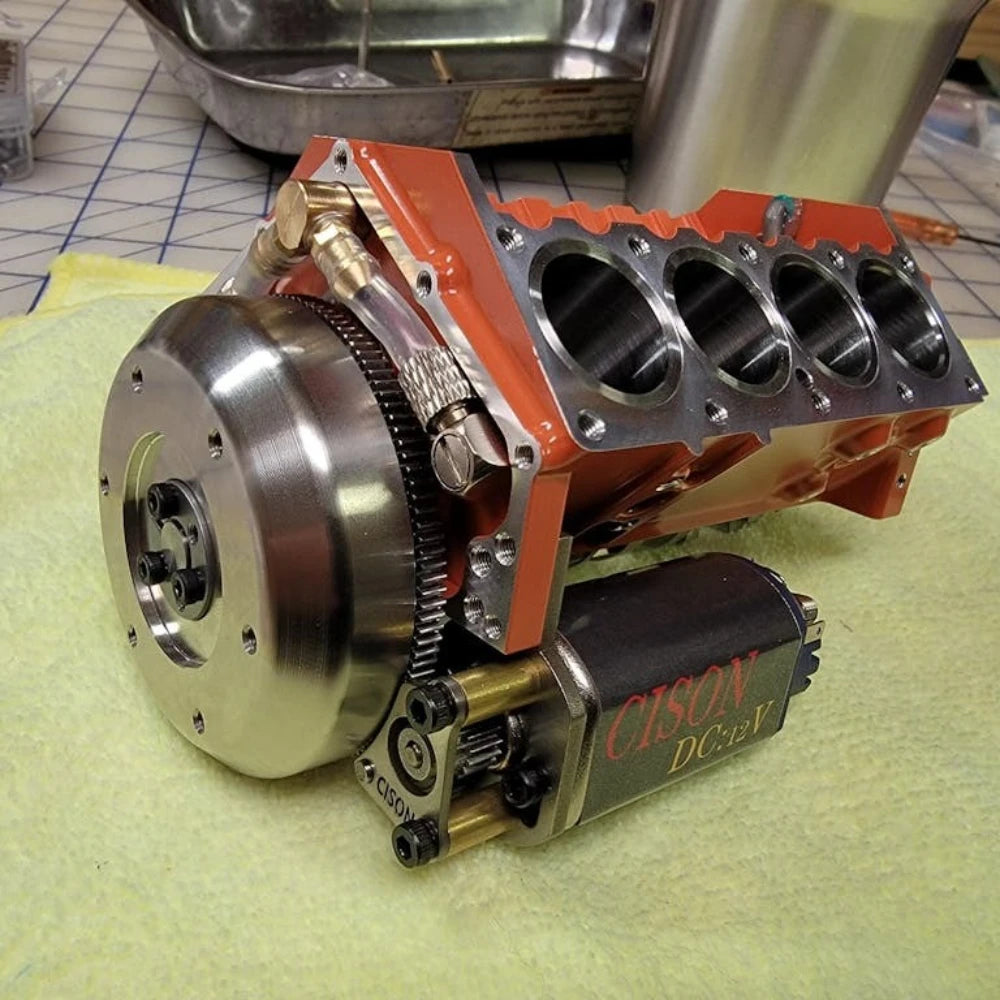

Structural Reinforcement: The engine now uses flange bearings on both the front and rear of the cylinder block, eliminating previous wear issues caused by bearing shifting. This significantly enhances stability and durability during operation.

Performance Optimization: Compression ratio has been re-calibrated to reduce fuel injection needs and improve spark plug longevity. These adjustments resolve common wear issues and deliver smoother, more stable power output.

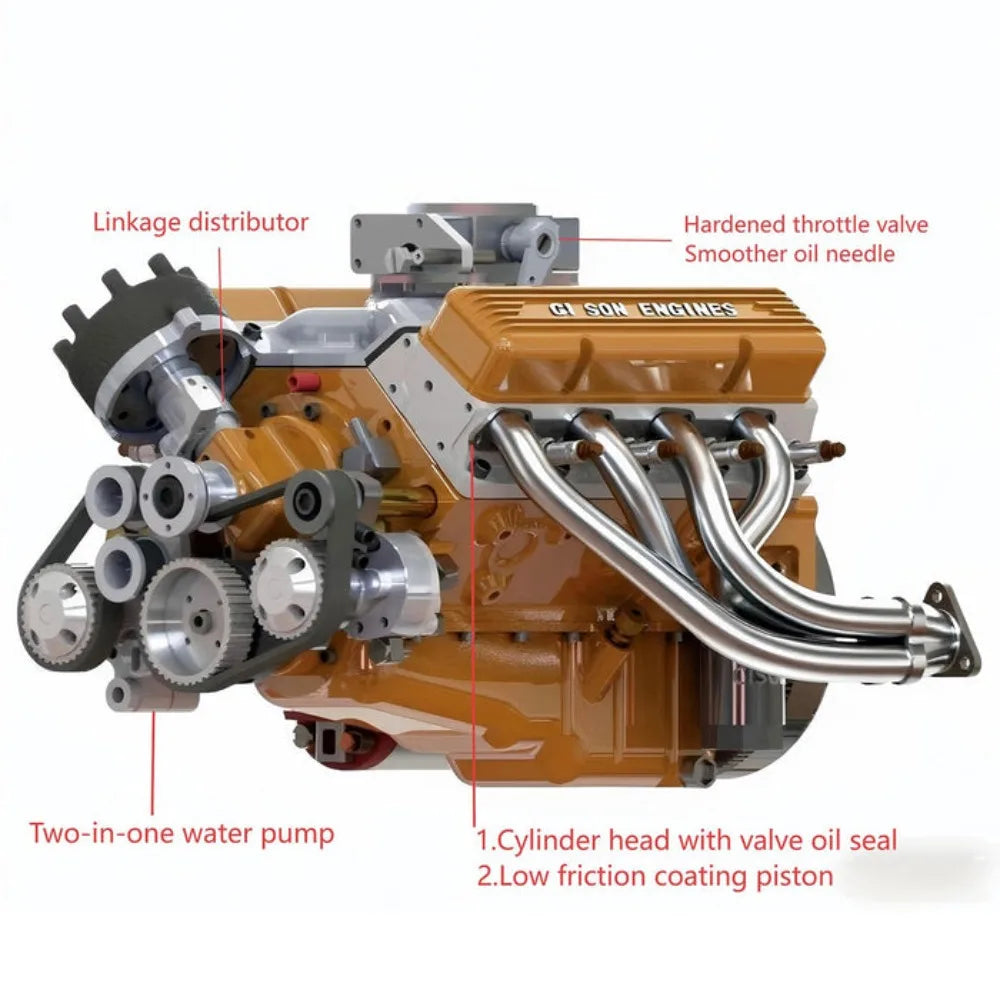

Improved Smoothness: The carburetor rotor has been hardened for smoother rotation without jamming, addressing defects found in ordinary steel parts. Paired with a distributor that adjusts ignition timing with throttle input, the engine supports lower idle speeds and higher peak performance.

Durability Enhancement: Upgraded coated pistons offer 200% improved wear resistance and corrosion protection. Added valve stem seals and optimized rocker lubrication reduce oil burning and fuel spraying, greatly extending engine lifespan.

Premium User Experience: Delivered in an all-new deluxe V8 PRO gift box with top-and-bottom case design. Whether for desktop display, RC model upgrades, or as a luxurious gift, it delivers a refined and impressive presence.
