Beekeeping Queen Bee Insemination Device with Hook Efficient Queen Bee Mating Equipment Honeybee Artificial Insemination Tool

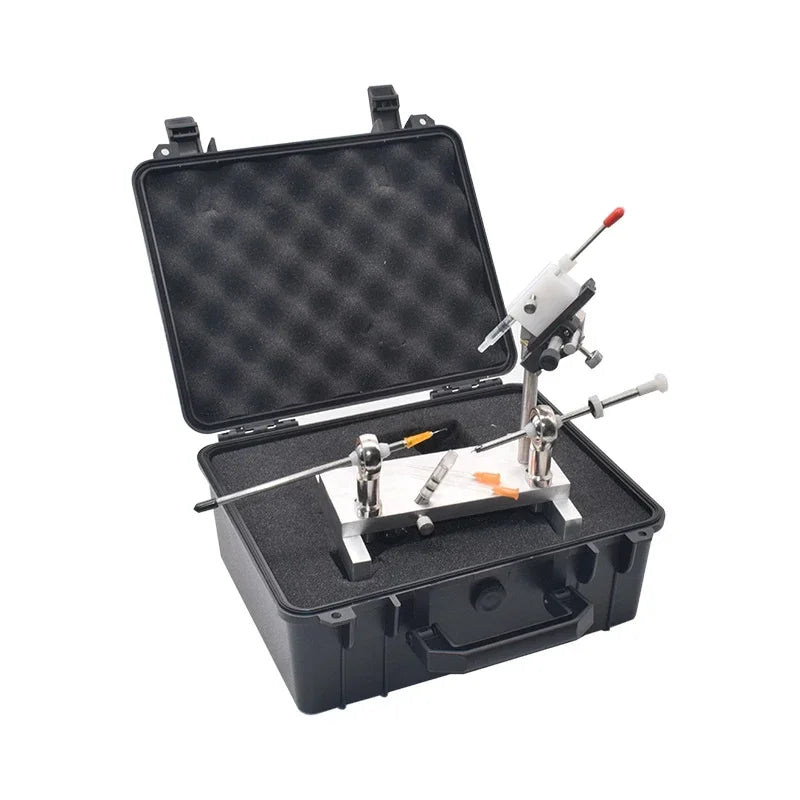

Insemination instrument:

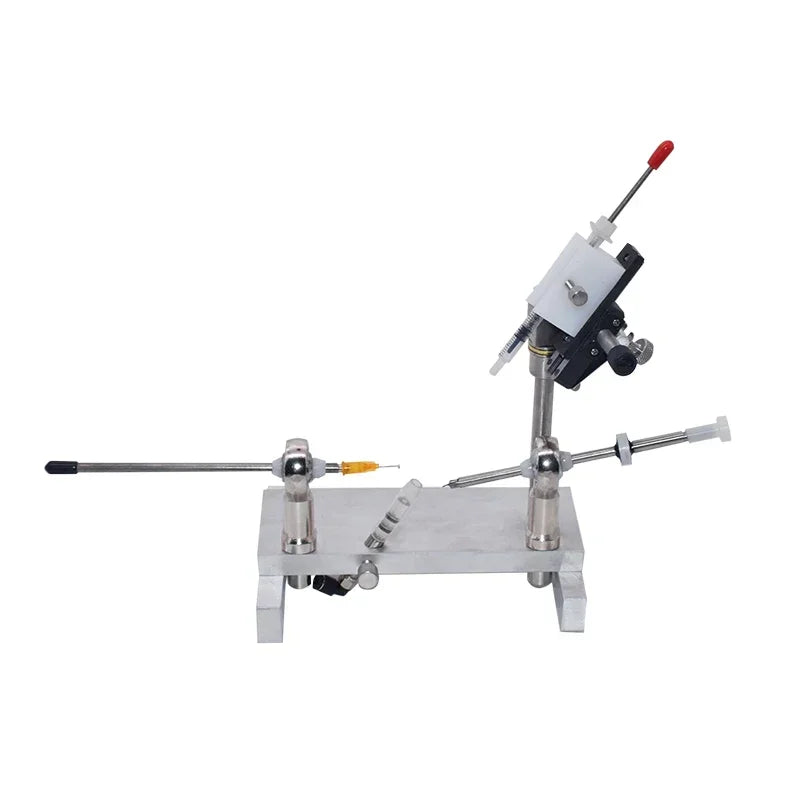

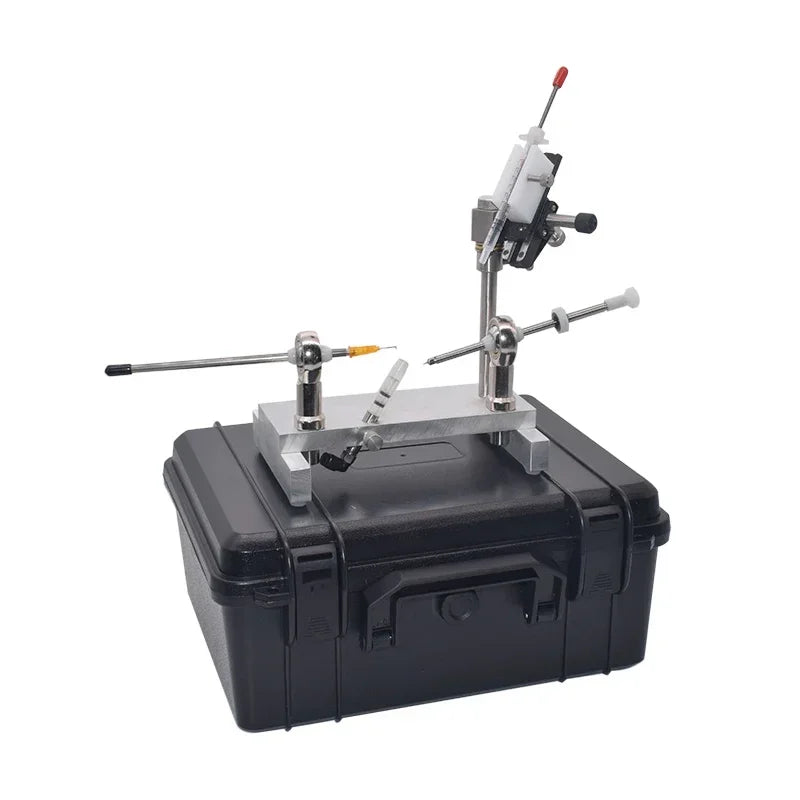

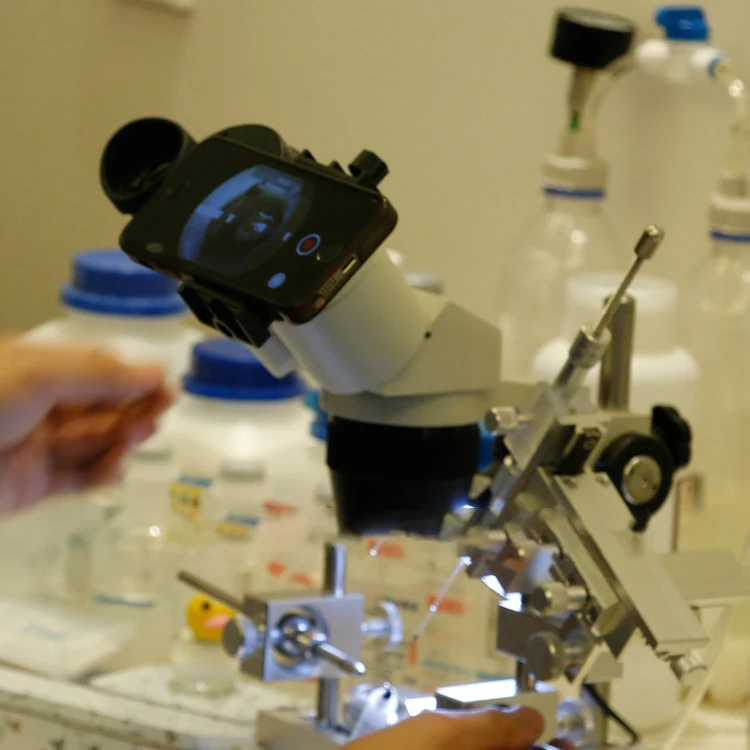

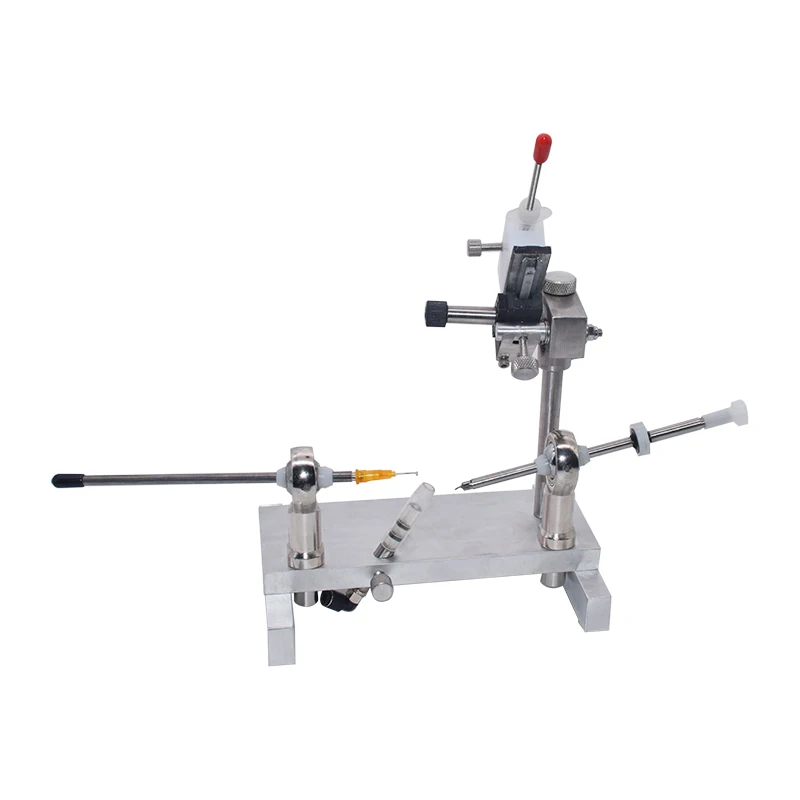

The insemination instrument consists of a base supporting the hooks and syringe holders and a queen holder. It is a specially designed manipulator which facilitates the collection and insertion of semen into the vaginal orifice of the queen (with pressuregrip or dorsal perforated hook). The low height has advantages under the microscope.

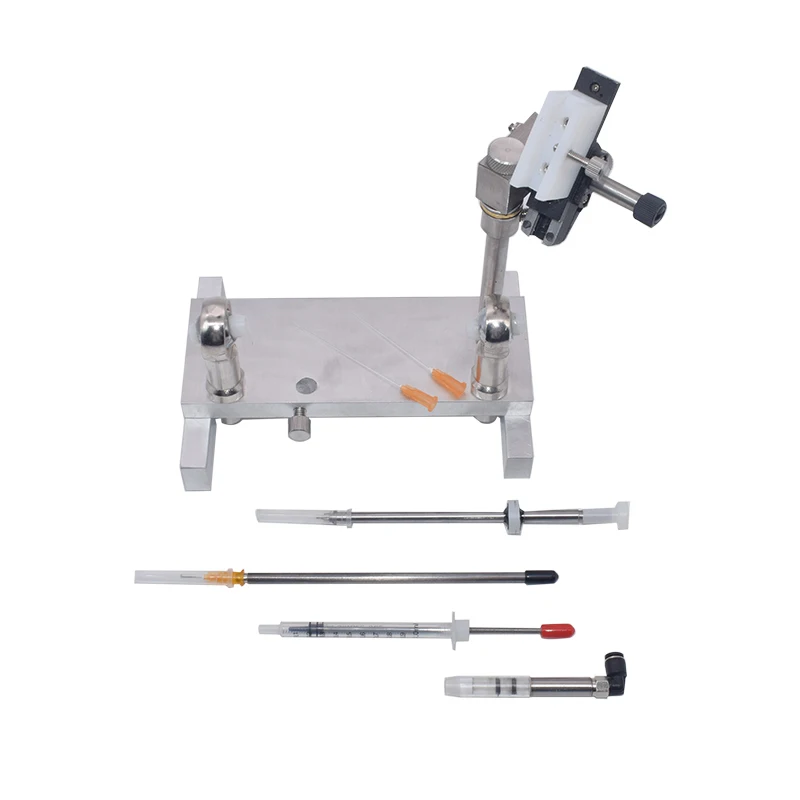

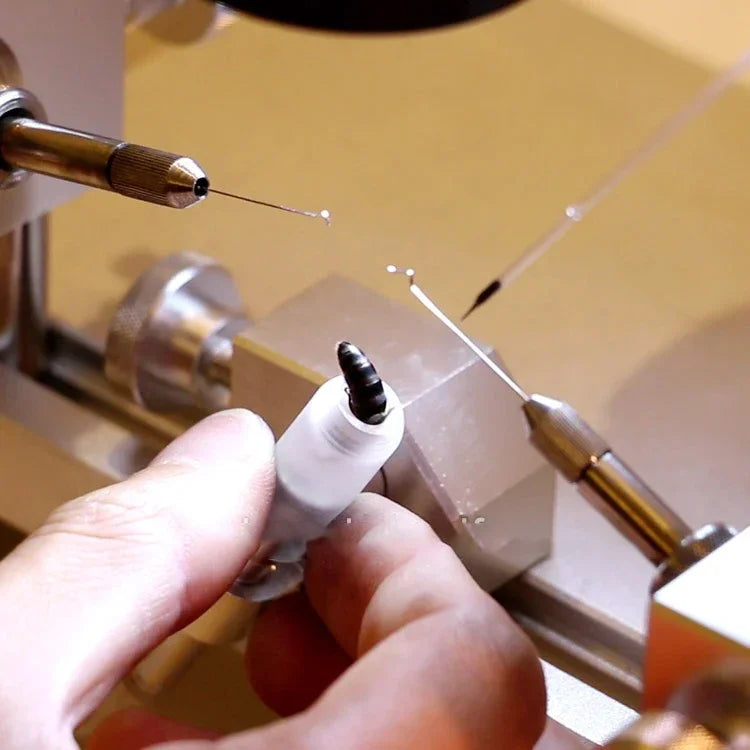

Semen is collected in the syringe, of which the assembly is shown under the picture. The parts of the instrument which have contact with the semen and saline solution must be sterilized to avoid problems with contamination. A house-hold pressure cooker is useful to sterilize the instrument parts.


1. Product Name: Queen Bee Artificial Insemination Instrument

2. Material: Stainless Steel

3. Syringe: acrylic material 100μl micro injector

4. Syringe needle outer diameter: 0.3mm

5. Syringe needle inner diameter: 0.17mm

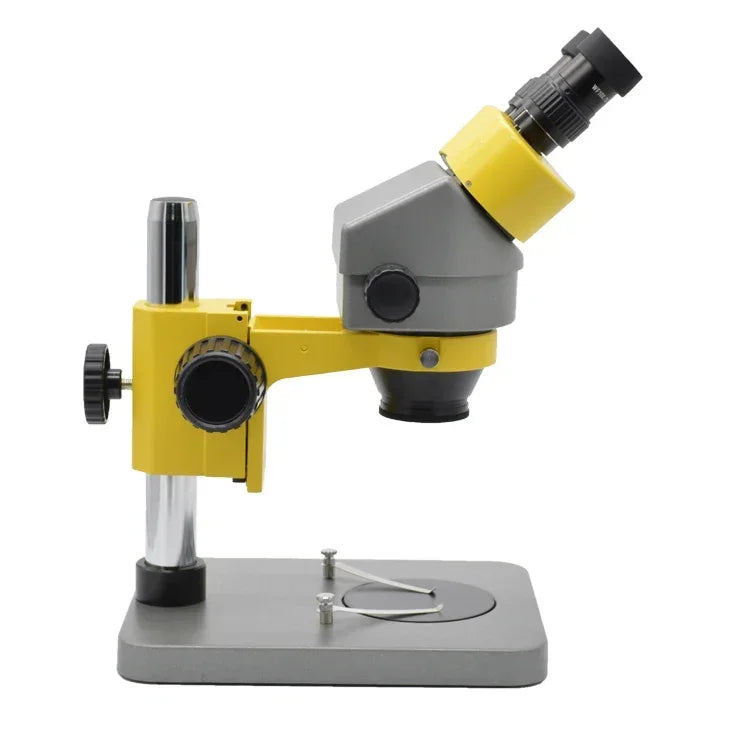

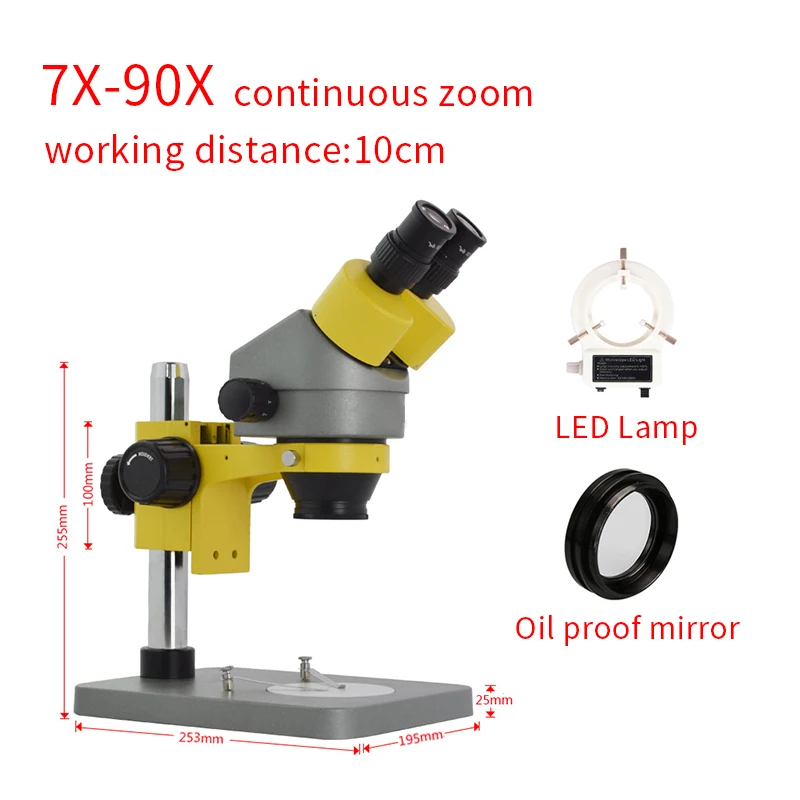

6. Microscope: 7X-90x Binocular Continuous Zoom

7. Eyepiece: 10X

8. Objective Lense: 0.7X-4.5X Continuous

9. Working Distance: 10cm

10. Work Table Size: 25.5*20*2.2cm
