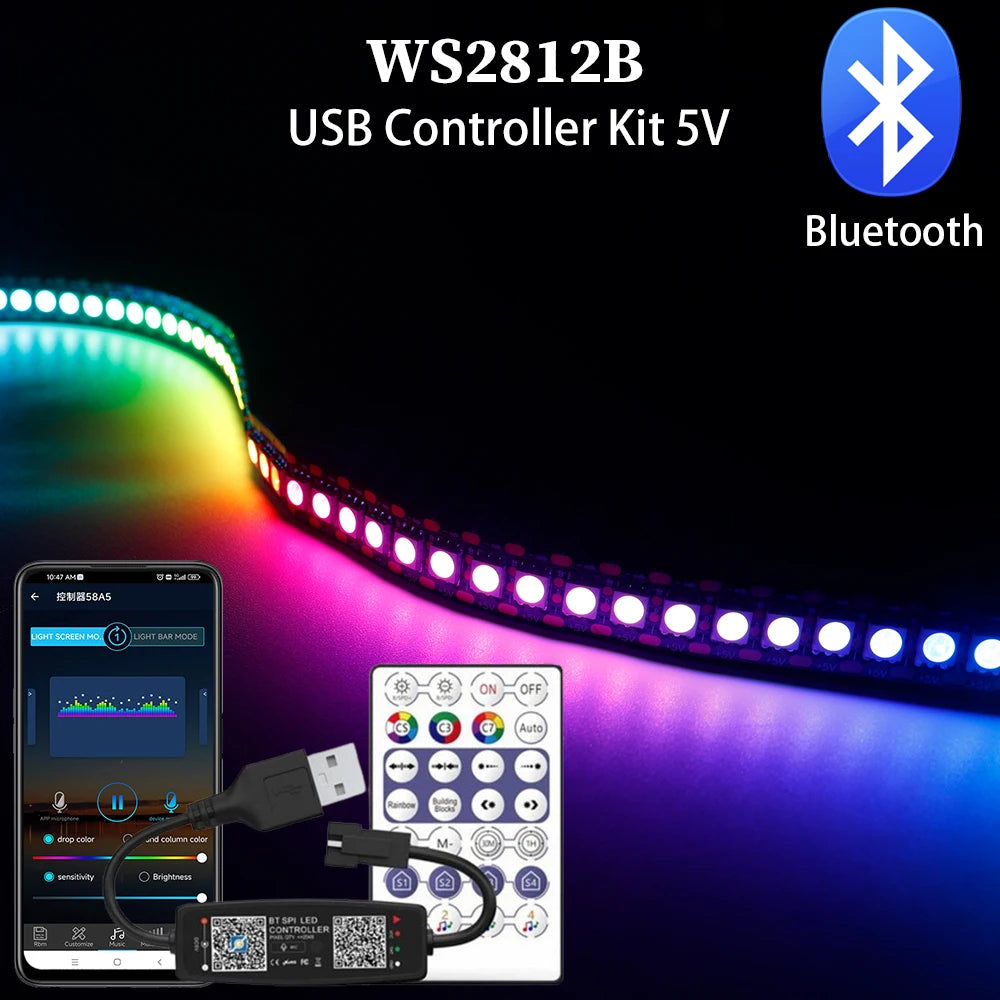

WS2812B Led Strip Individually Addressable Smart RGB LED Strip 30/60/144Leds/m and 28Keys Bluetooth Music Controller Kit USB 5V
SPECIFICATIONS
Average Life (hrs): More than 50000Hours
Brand Name: Xnbada
Certification: CCC,ce,FCC,ROHS
Choice: yes
Color Temp(K): 3000-6500k
Hign-concerned Chemical: None
Is Batteries Included: No
Is Smart Device: Yes
Item Type: Strip
LED Chip Brand: Epistar
LED Chip Model: WS2812
LEDs Number/M: 30/60/74/96/144
Luminous Flux: 249-2000
Model Number: WS2812b
Occasion: LIVING ROOM
Origin: Mainland China
Power Consumption (W/m): 11.52W/m
Power Generation: Switch
Power Source: DC
Specifications (light beads / m): 30/60/74/96/144
Strip type: SMD
Voltage: 5V
Waterproof: Yes
semi_Choice: yes

Pay attentionοΌ
1. Led strip welded by 0.5m is very normal in an electronic product,not a quality problem.if you mind this, do not place orderοΌ

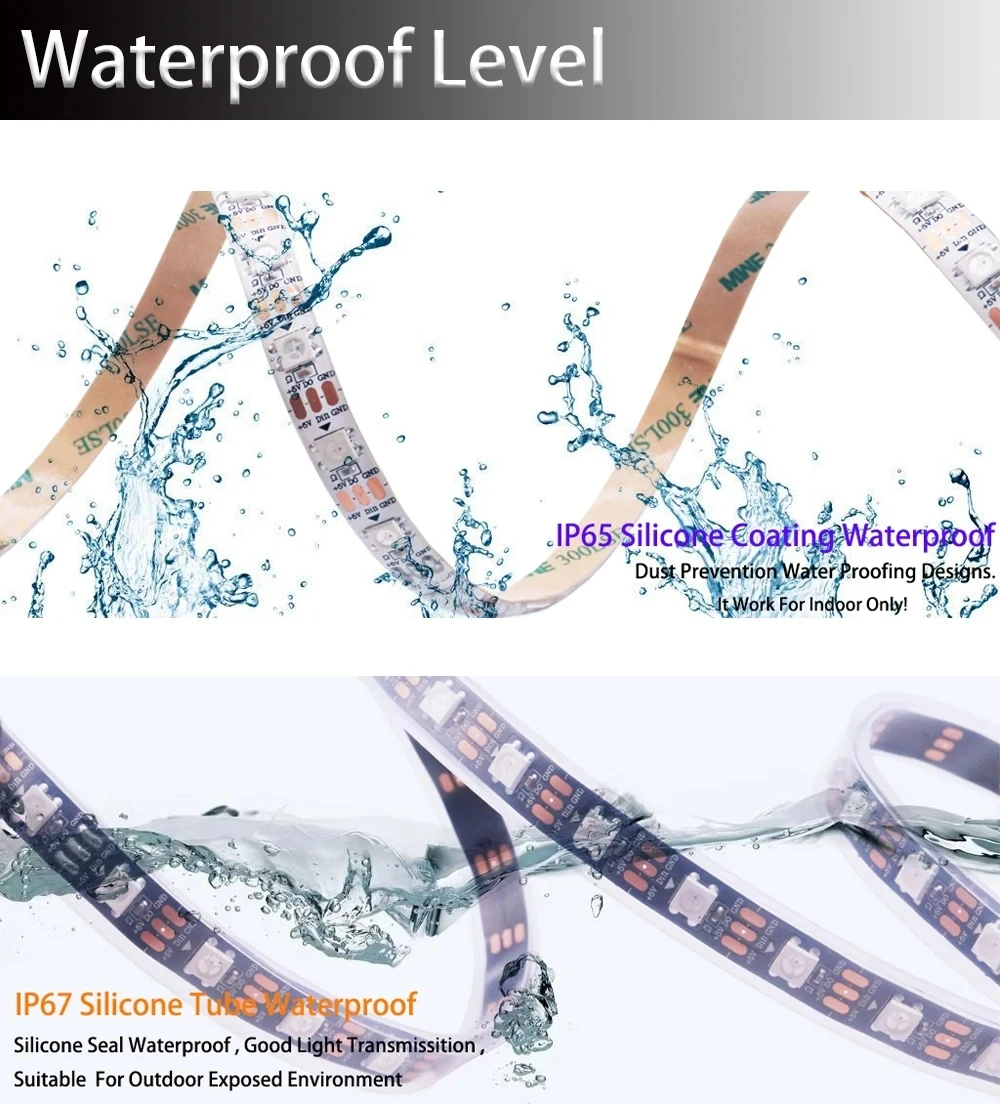

2. IP30: Non- Waterproof
IP65: Waterproof in Silicon Coating
IP67: Waterproof in SiliconTube
this link is not include power supply ,please know it
this link is not include power supply ,please know it
Pay Attention (Important: WS2812B Must Work With 5V LED Power Supply,Over DC5.5V Will Burn Led Strip)
Product Decsription:
1. 3-Pin JST Connector Included: Red:VCC, Withe:GND, Green:DATA.
2. The Strip Has 3M Adhesive Tape On The Back(Except Ip67). Installation Surface Must Be Smooth, Clean And Dry.
3. Led Strip Can Be Cut Between Every Led To Create Custom Lengths.
4. Do Not Bend Strip Sharply.
5. Longer Runs Should Be Powered From Both Ends To Reduce Voltage Drop.
6. 3-Pin JST Connector Wire is 20AWG.
Products Application:
WS2812B Dream Color Strips Can Be Used For TV Hotel, KTV, Bar, Game Room And Other Leisure, Entertainment Decoration To Heighten The Atmosphere, Car Chassis, Car Decoration, Shop Decoration, Home Decoration And Other Decoration.
Product Details:
Input Voltage: DC5V
Power: 30Leds/m----9Watt/meter
60Leds/m----18Watt/meter
144Leds/m----43.2Watt/meter

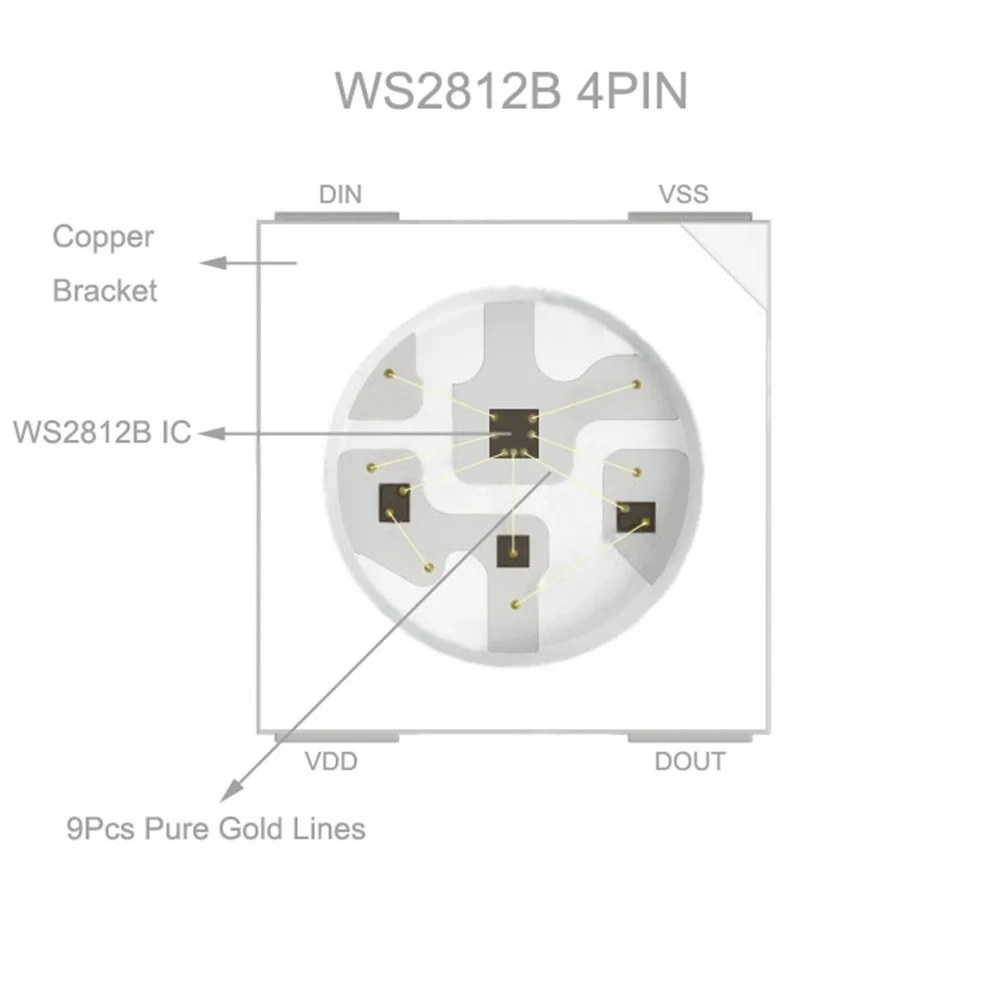

LED Resource: WS2812B Led(5050 SMD RGB LED With Built-in Improved Version Of WS2811 IC)
LED: Each Led is Separately Controlled
IC Type: Improved Version WS2812 IC(Built Inside The 5050SMD RGB LED)
Of IC: 1 IC Drives 1 Led Chip

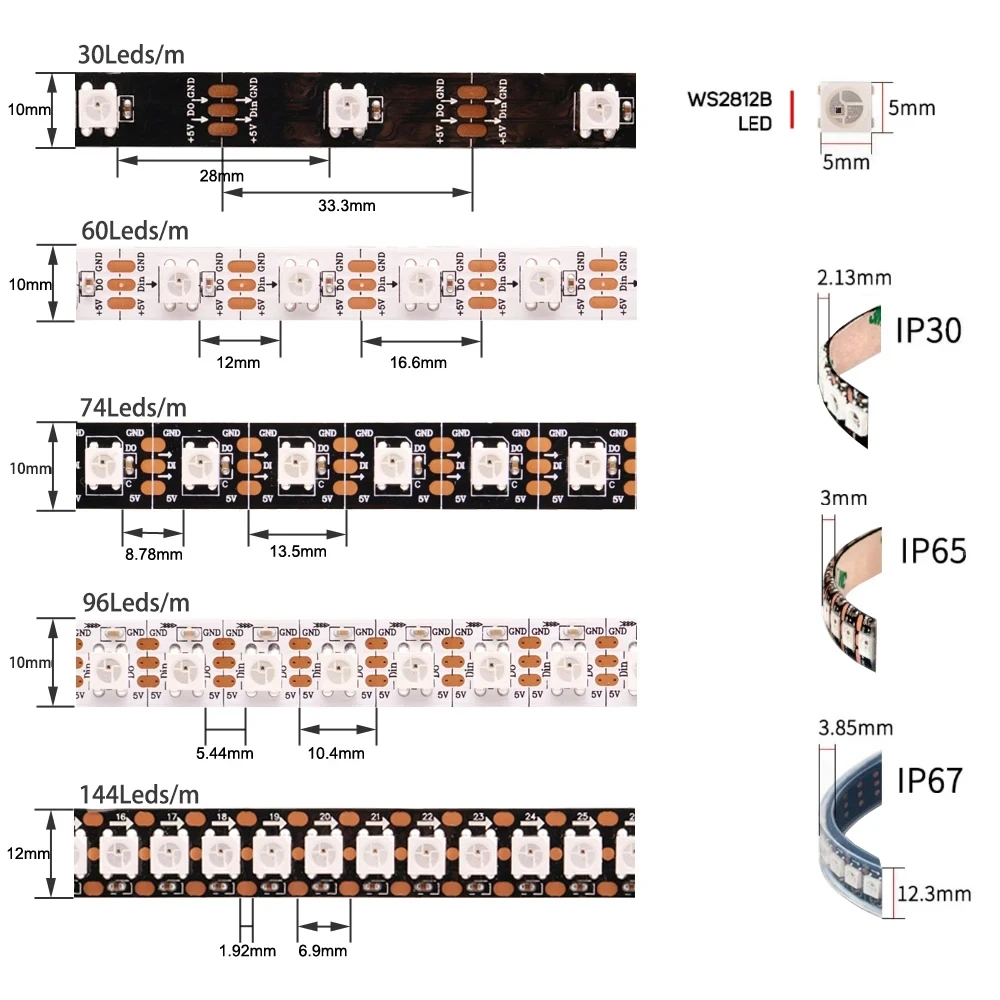

Pixels: 30/60/74/96/144/Meters
Pitch: 16.6mm(1000/64)
Grey Scale: 256
Bits/Color: 8-Bits/Color
FPC Width: 30Leds/m----10mm
60Leds/m----10mm
74Leds/m----10mm
96Leds/m----10mm
144Leds/m----12mm
FPC color: Black/White

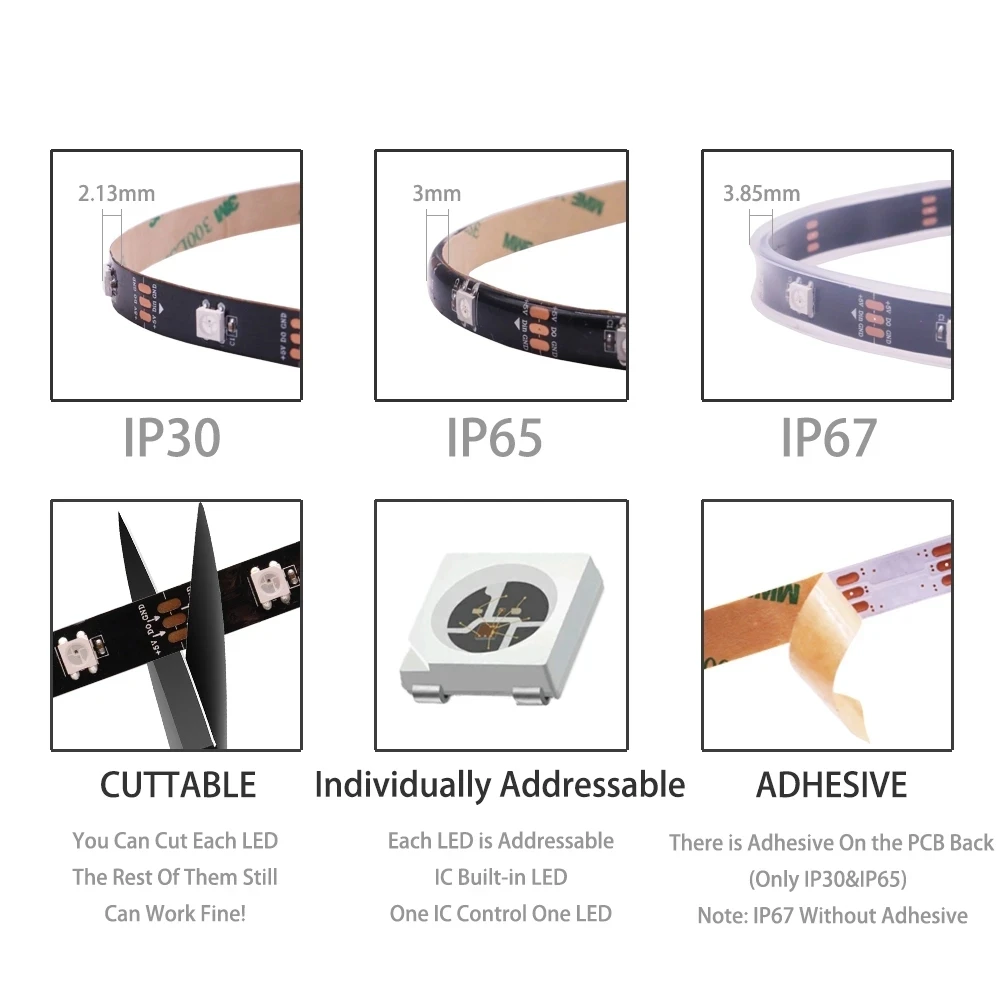

Protection Rate: IP30/ IP65 /IP67
Colors: Full Color RGB, Dream Color Changing
Cuttable: Every LED is Cuttable
Package:In Anti-Static Bag,IP30 IP65 With 3M Adhensive Tape On The Back(IP67 Without 3M Adhensive)
Package Included:
Led Strip kit
1*1m/2m/3m/4m/5m Led Strip

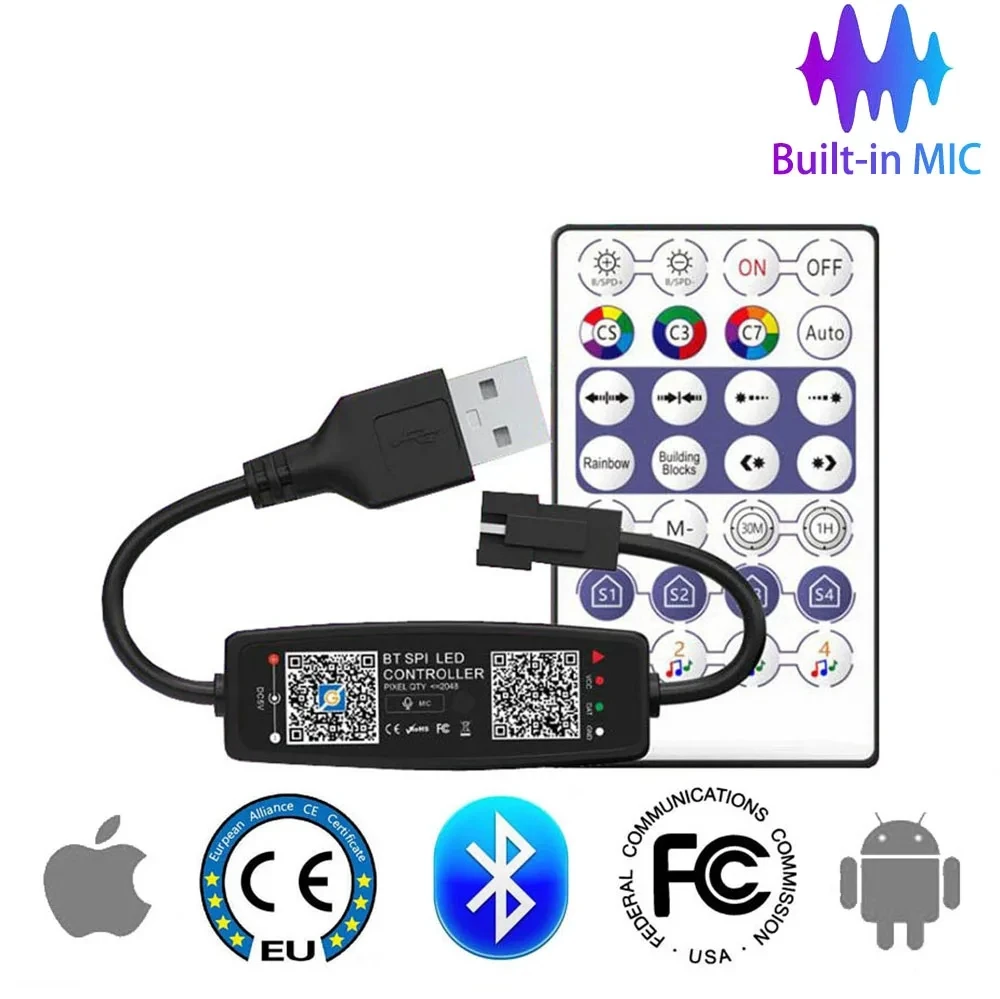

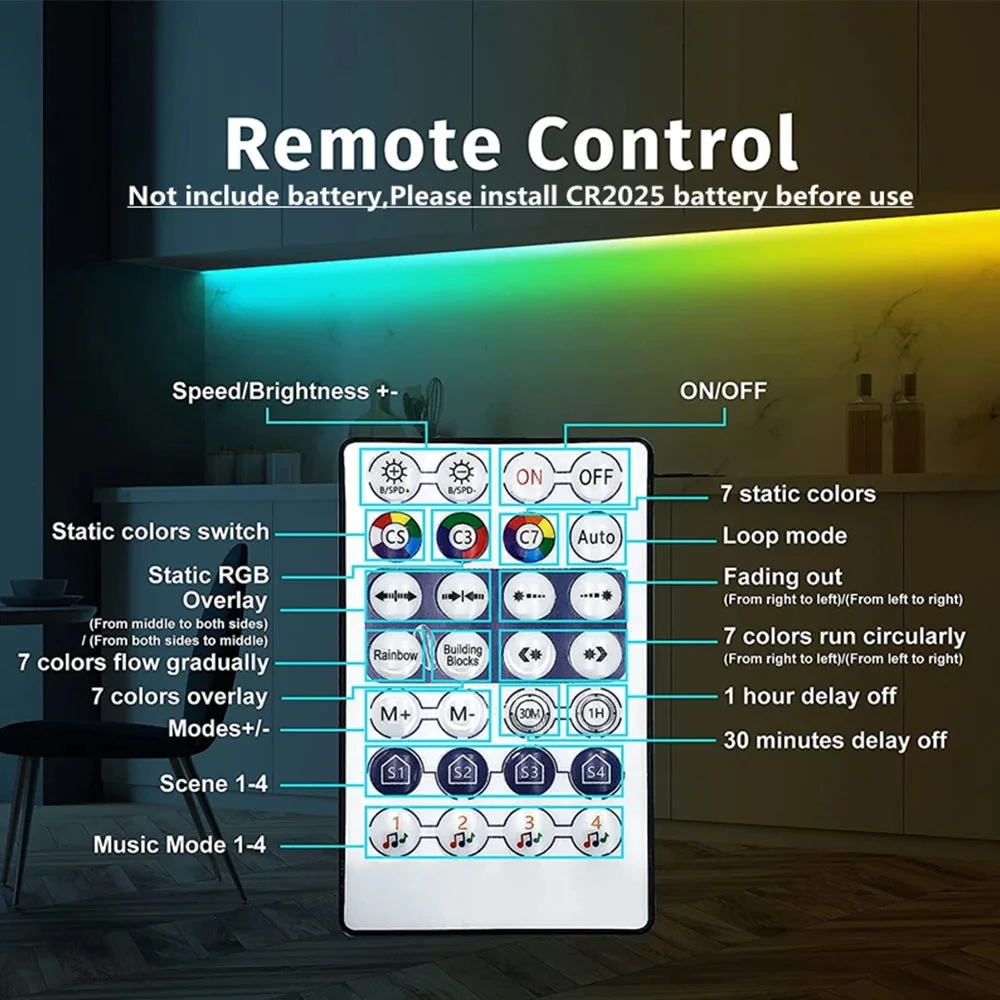

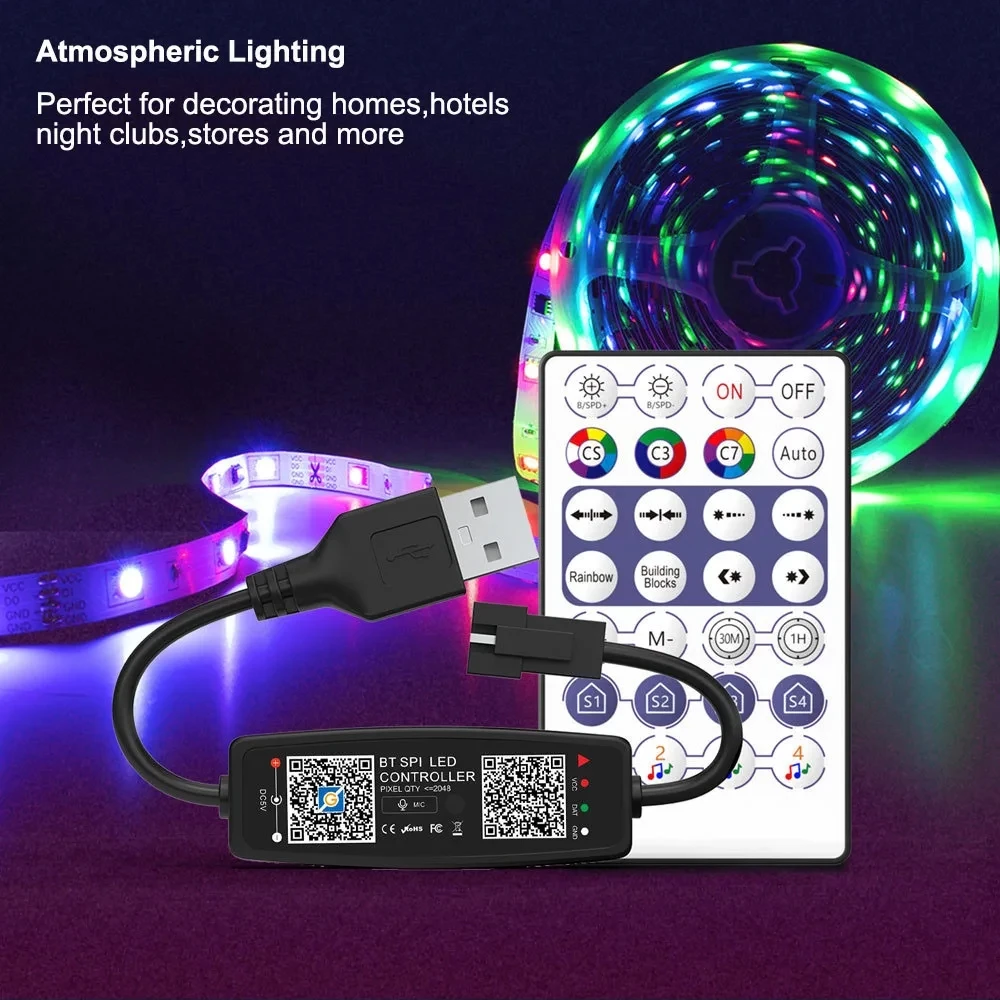

1*28Keys USB Led ControllerοΌWithout batteryοΌ
