SPECIFICATIONS

Brand Name: YIPINGLINK

Cross Reference: No

Freeze Function: Support

Loading Capacity: 1.3 million pixels

Net Weight: 2.0kg

Place of Origin: Guangdong, China

Power Consumption: 15W

Power Supply: 100VAC ~ 240VAC 50/60Hz

Type: Other

Upgrade: Both cable and USB upgrade

Working Humidity: 0%~95%

Working Temperature: 20°C~70°C

Introduction

X102 designed for small fixed installation LED screen, which is a cost-effective all-in-one video processor. It integrates sender, video processor and supports USB-flash-drive plug and play. It supports up to 1.3 million pixels: up to 3840 pixels horizontally or 1920 pixels vertically

1. With two outputs, supports up to 1.3 million pixels;

2. Supports up to 3840 pixels horizontally or 1920 pixels vertically;

3. Up to 100 scene can be saved, and 10 quick paths for calling scenes;

4. Supports USB-flash-drive plug and play;

5. Supports video source hot-backup;

6. Supports switching signal; switching scene instantly; switching audio and video simultaneously;

7. Support audio in/out;

8. Supports brightness adjustment;

9. Supports freeze function;

10. Supports both cable and USB upgrade;

11. Various input: 2HDMI1.3, 1 DVI, 1 VGA, 1 CVBS;

12. Can be set up by network cable and typc-C cable;

13. Supports schedule table;

14. Settings can be backed up by USB flash drive and cloud;

15. Settings can be restored by USB flash drive and cloud ;

16. Supports issuing license;

17. Supports testing and displaying network output connection .

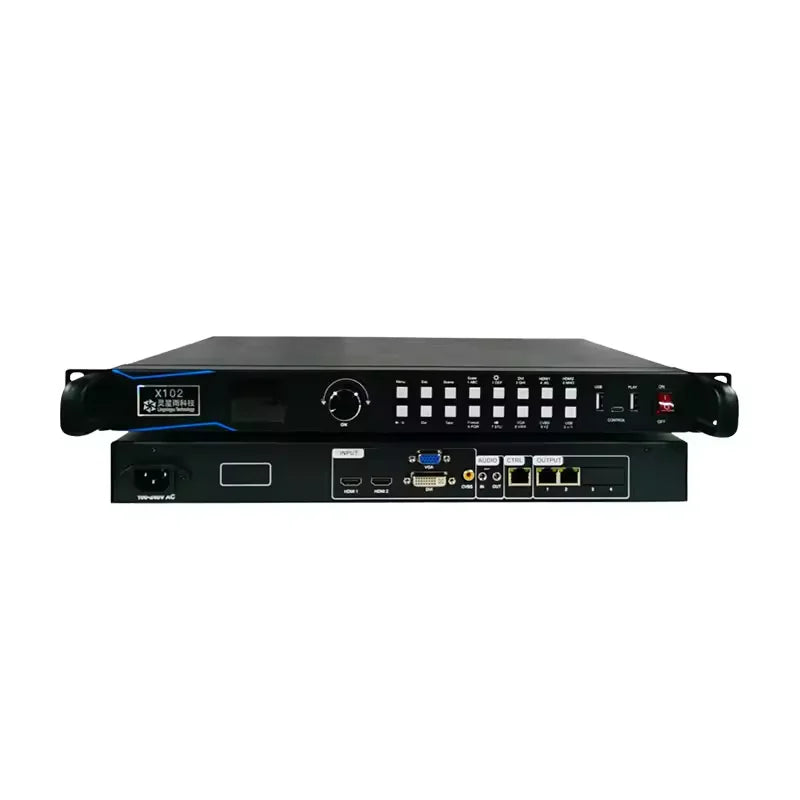

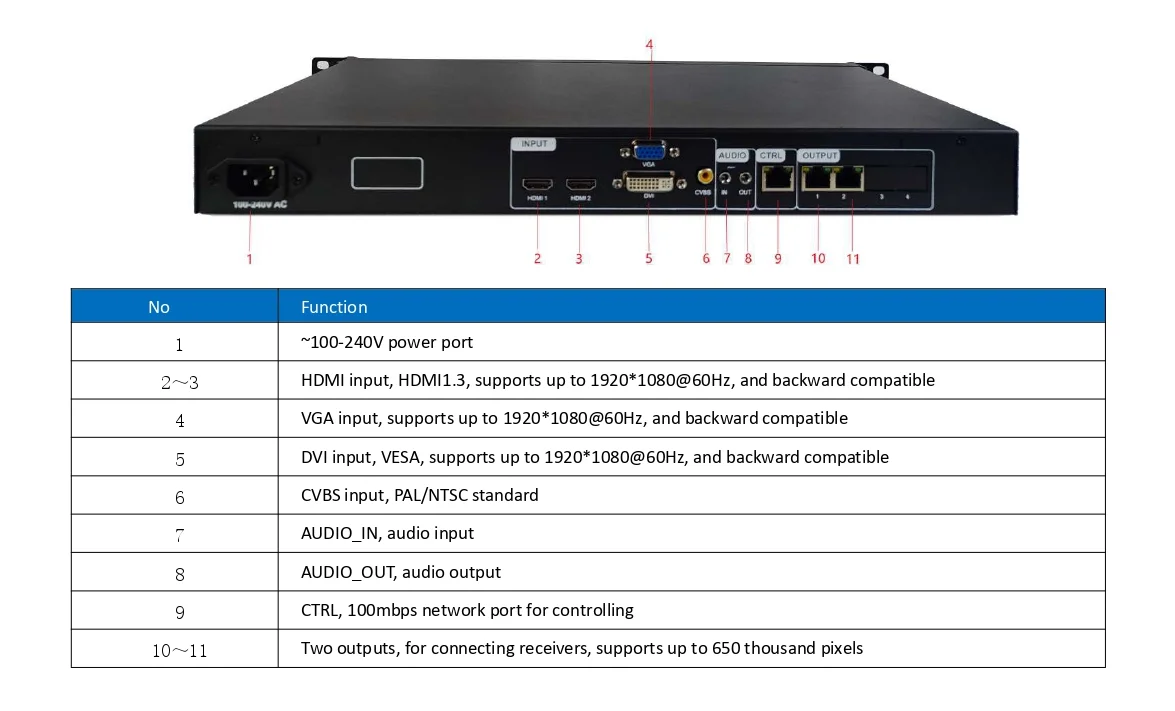

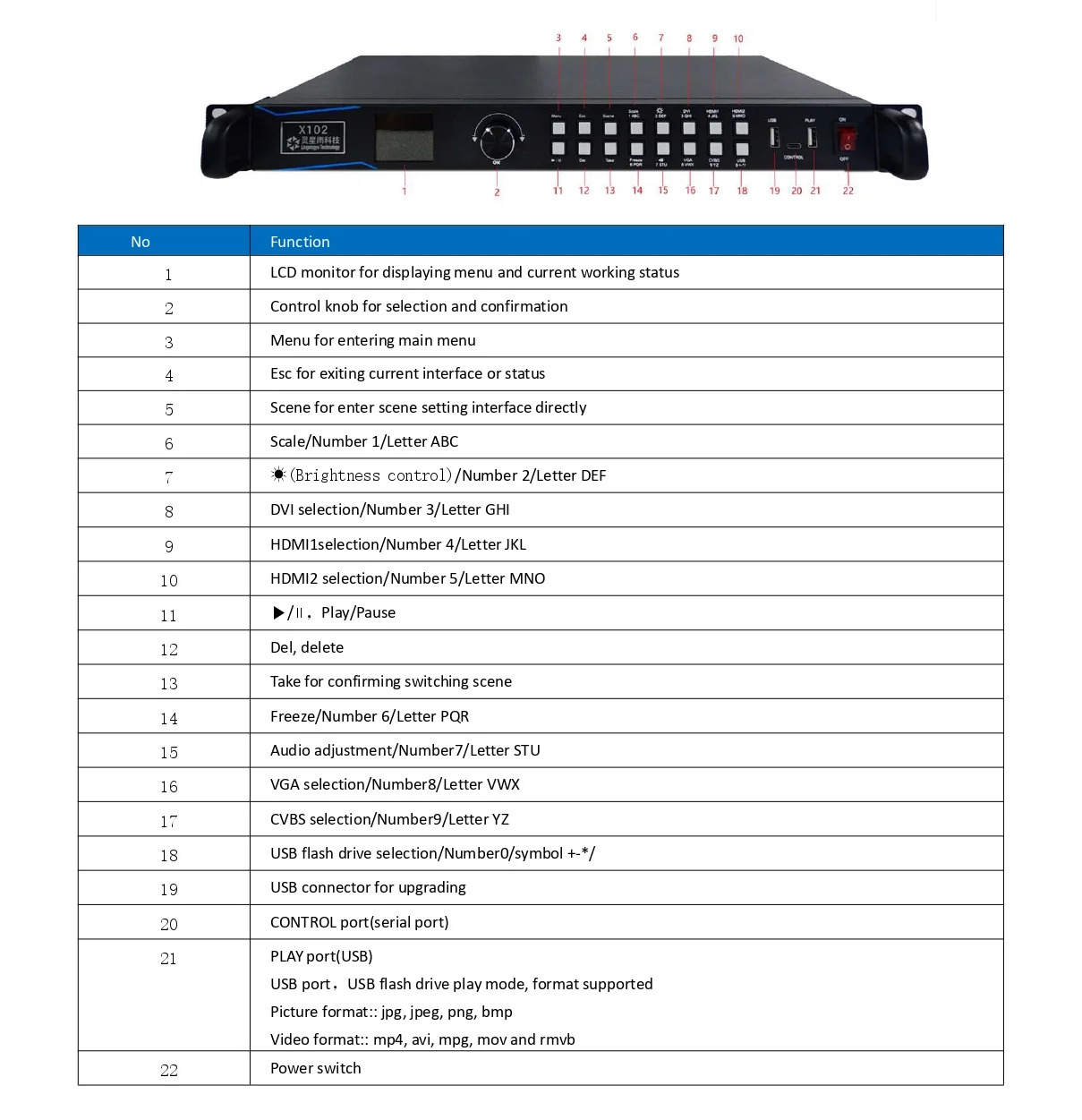

Appearance

Specifications

Power	Input	AC 100-264VAC, 50/60Hz
		Power consumption	15W
Working temperature	Temperature	-20℃～70℃
		Humidity	0%RH～95%RH
Dimensions	Weight	Net weight 2.0kg Gross Weight 3.0kg
		Dimension	Device 482.6mm×225.3mm×44.5mm Package 505mm×135mm×360mm

Recommend Products

Company Profile

Our Advantages

FAQ

Q1:Can I do remote control for my LED display while using media player?
A:Yes, you can connect internet by router or sim card 4G. If you wanna use 4G, your media player must install the 4G module.

Q2:How to make the naked-eye 3D LED display ?
A:Need smaller pitch LED display, better with high refresh, video processor setting pixel by pixel, and play high quality 3D video.

Q3:After I change one of the receiver cards, it does’t work. How can I solve it ?
A:Please check the firmware. If this new card is different with other card, you can upgrade it into same firmware, then it will work.

Q4:If I lose my screen RCFG file, how can I get it back ?
A:You can click “read back” to get it back in the software receiver page if you or provider have saved it before. If fail, you must make smart setup to make a new RCG or RCFG file.

Q5:How to make LED display brightness change automatically in different time ?
A:It is required with light sensor. Some devices can connect with sensor directly. Some devices need to add multi-functional card then can install light sensor.
