SPECIFICATIONS

Application: Desktop,Laptop

Brand Name: SAMSUNG

Bus Type: PCIe 5.0x4

Controller: Presto S4LY027

Cooling Fin: No

High-concerned chemical: None

Interface Type: M.2 2280

Max Sequential Read: 14700

Max Sequential Write: 13400

Nand Flash Type: TLC

Origin: Mainland China

Package: Yes

RGB: No

Size: M.2 2280

Style: SSD

Transport Protocol: NVME

Type: Internal

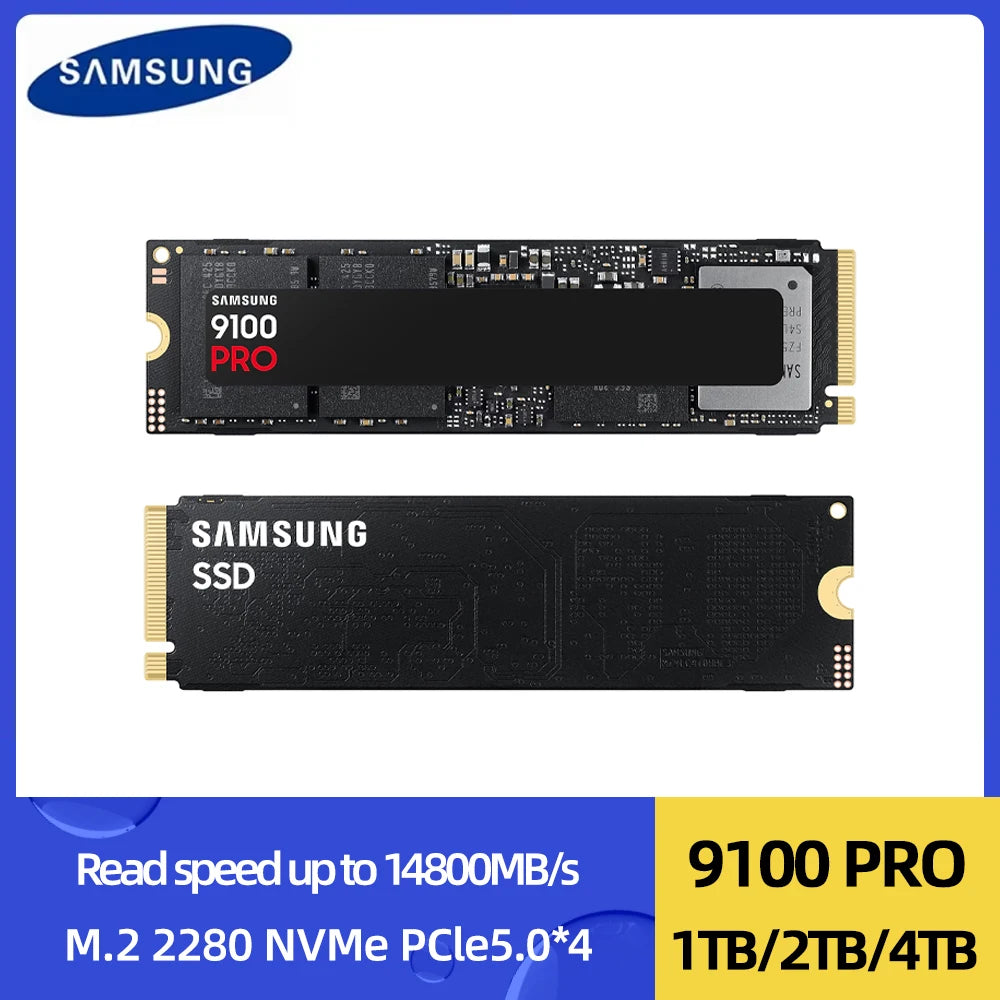

SAMSUNG 9100 Pro SSD 1TB 2TB 4TB NVMe M.2 2280 PCIe 5.0X4 Internal Solid State Drive for Laptop Mini PC Gaming Computer

Features

Model: 9100 PRO

Applications: Client PC, Gaming Consoles

Rated Capacity: 2000GB (1GB = 1 billion bytes in IDEMA)

*Actual available capacity may be reduced (due to formatting, partitioning, operating system, application or other necessary occupation

Form Factor: M.2 (2280)

Interface: PCIe® 5.0 x4, NVMe™ 2.0

Dimensions (WxHxD): 80.15 x 22.15 x 2.38 mm

Weight: Maximum 9.0 g weight

NAND Flash: Samsung V-NAND TLC

Controller: Samsung self-developed internal controller

Cache: Samsung 2GB low-power DDR4X SDRAM

Special Features

TRIM Support: Supported

S.M.A.R.T: Supported

Garbage Collection: Automatic Garbage Collection Algorithm

Security: AES 256-bit Encryption (Class 0)TCG/Opal IEEE1667 (Encrypted Drive)

Device Sleep Mode Support: Supported

Performance

Sequential Read: Up to 14,700 MB/s

Sequential Write: Up to 13,400 MB/s

Random Read: Up to 1,850,000 IOPS

Random Write: Up to 2,600,000 IOPS

* Performance may vary depending on system hardware and configuration.

Environment

Average Power Consumption (System Level)

Average: Read 8.1W / Write 7.9 W

Power Consumption (Standby): Typical 4.8 mW

Power Consumption (Hibernation): 4 mW

Allowable Voltage: 3.3 V ± 5% Allowable Voltage

Reliability: 1.5 million hours (MTBF)

Operating Temperature: 0-70 ℃ Operating Temperature

Vibration Resistance: 1,500 G & 0.5 ms (Half Sine)

Software

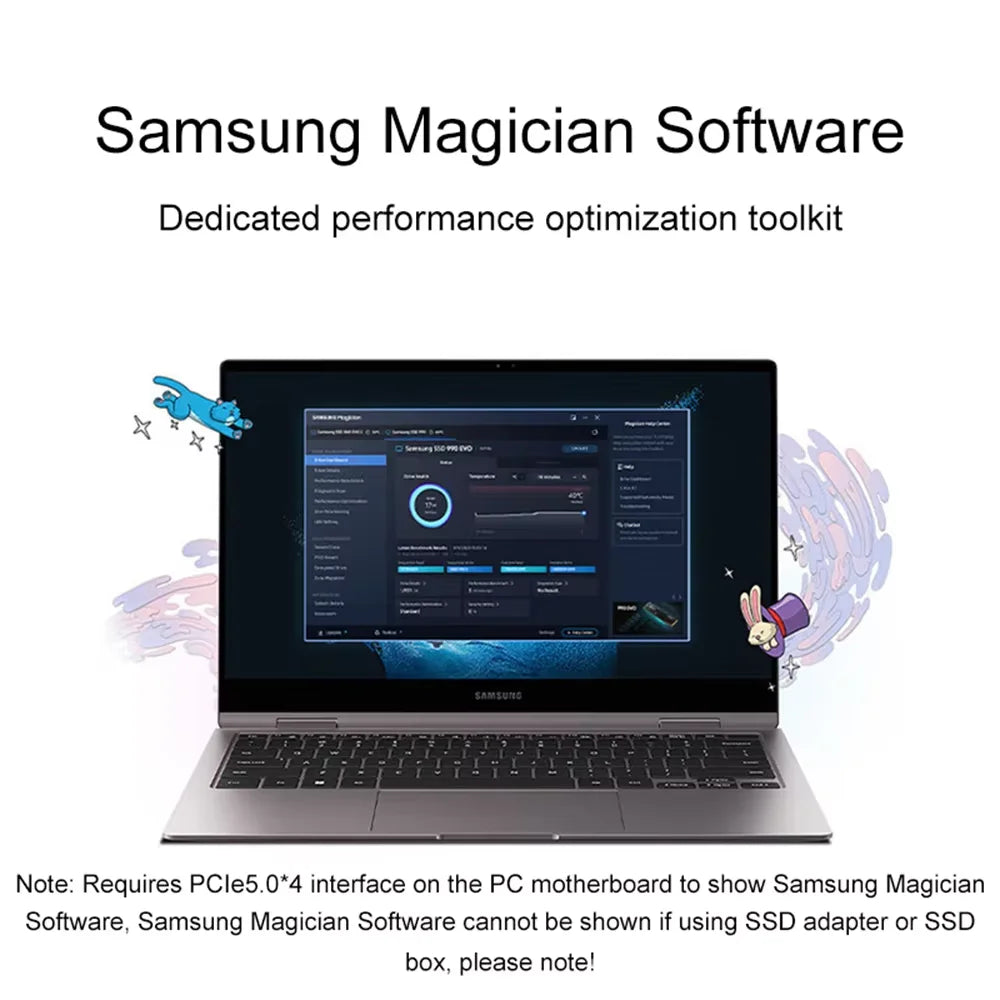

Samsung Magician Management Software

Warranty

5-year warranty/1200TBW
