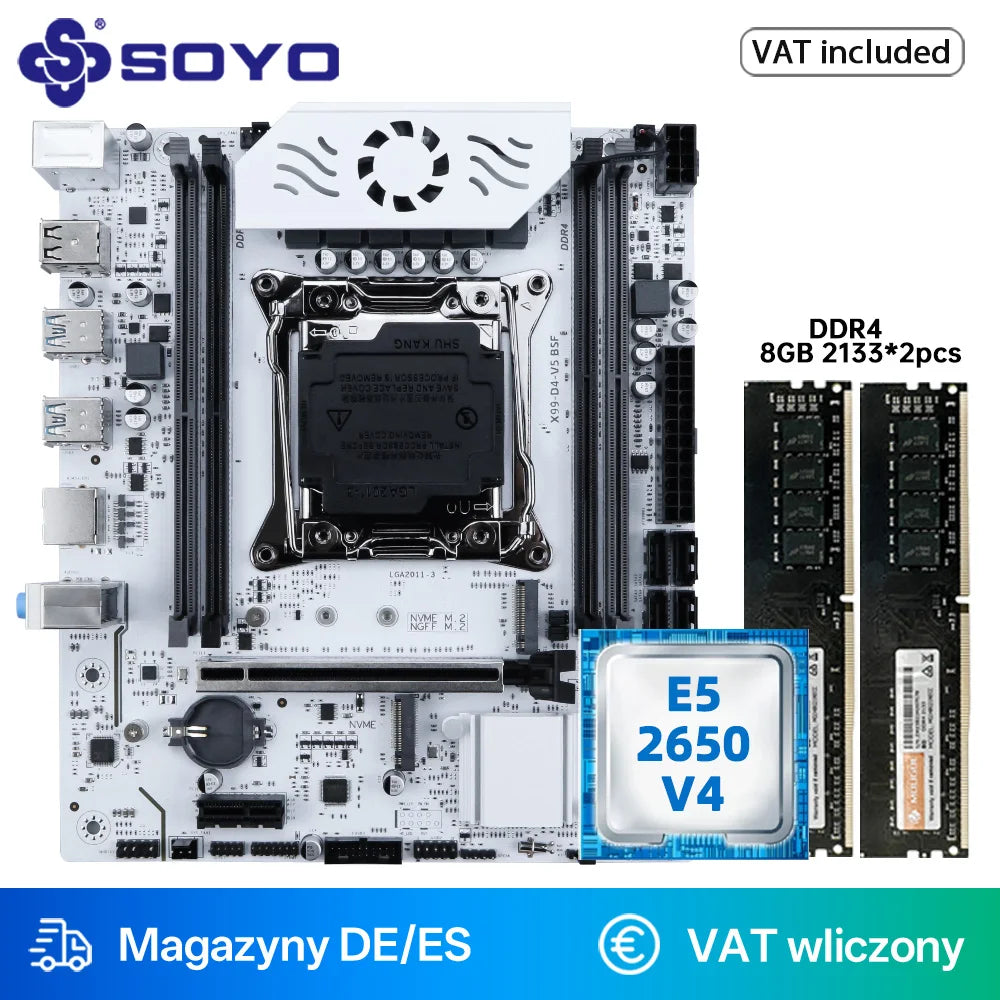

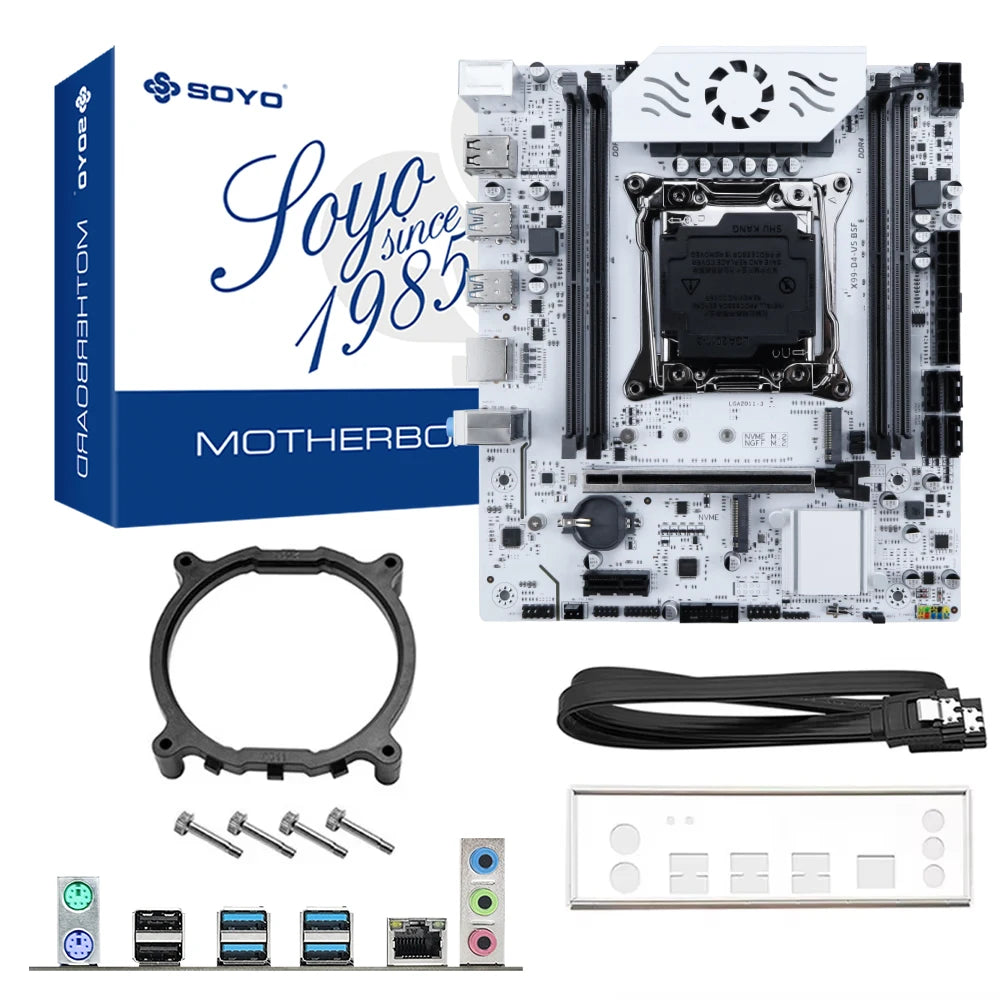

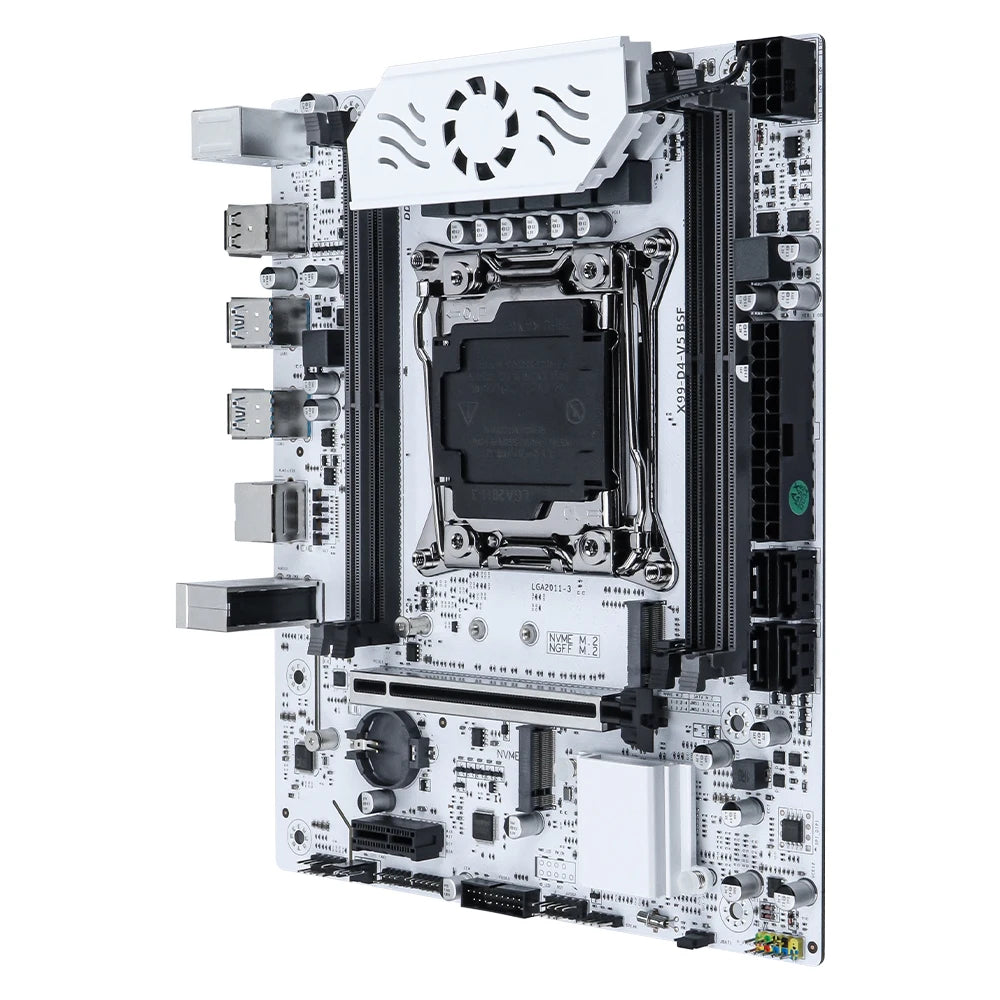

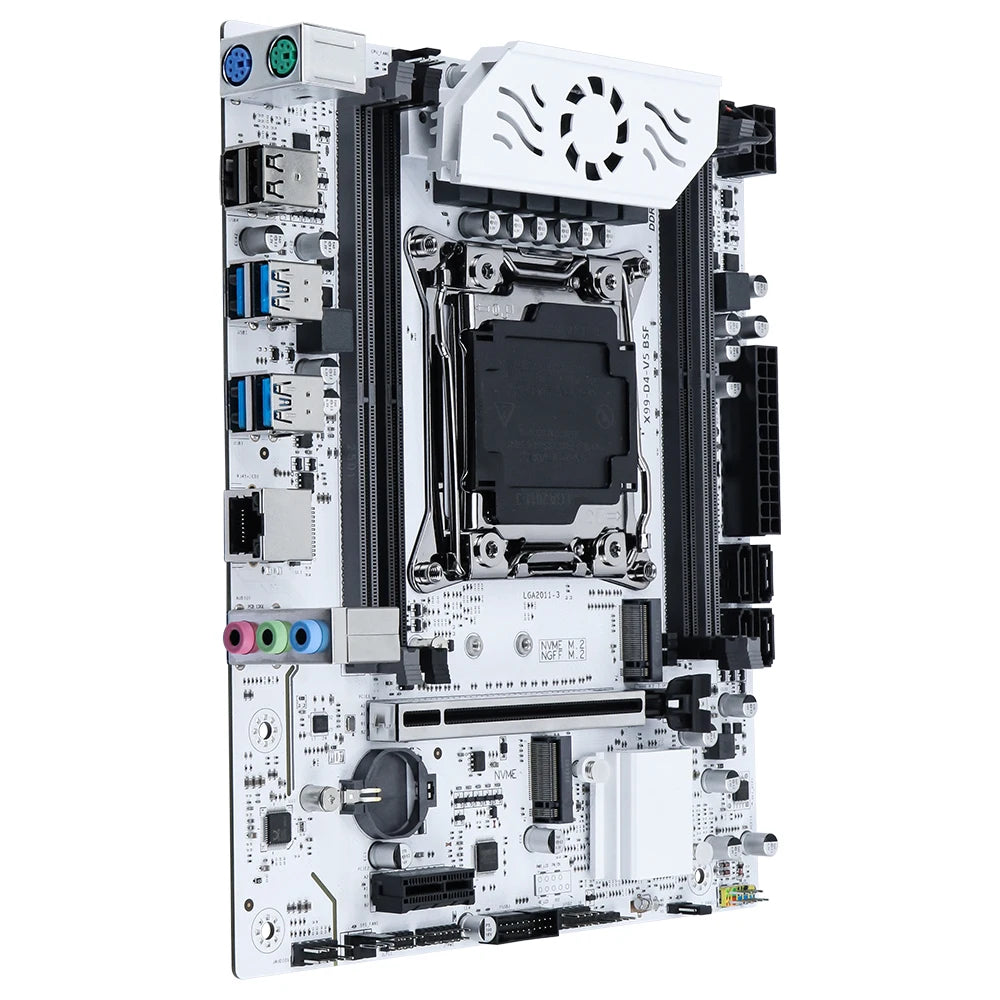

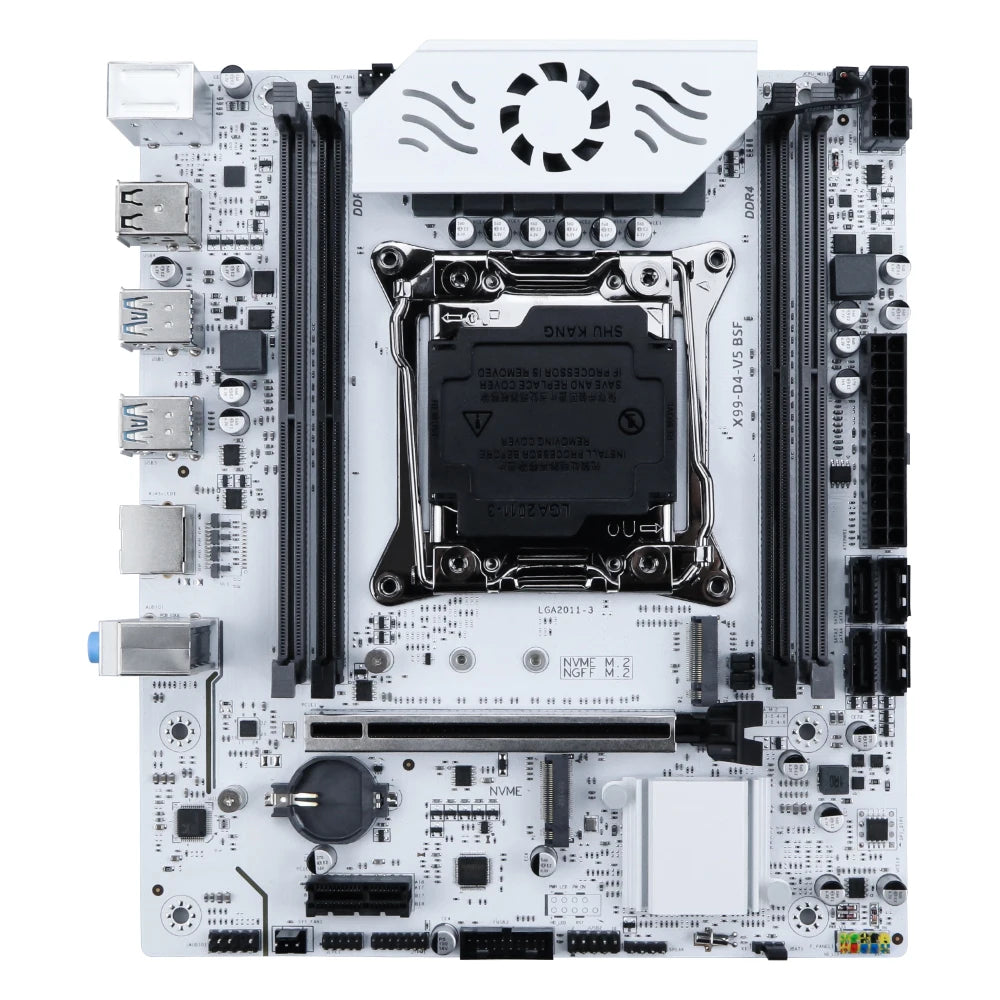

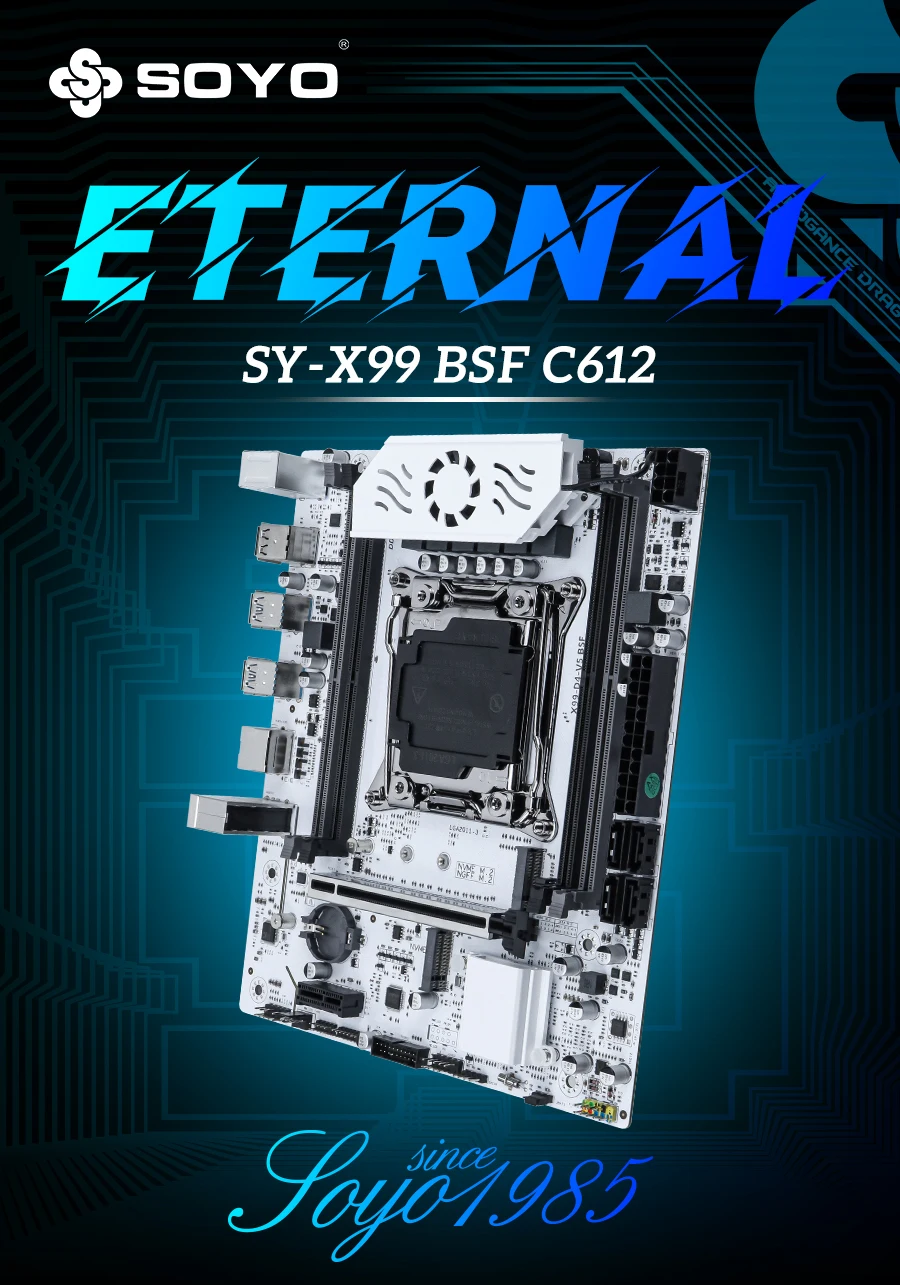

SOYO X99 Motherboard Set With LGA2011-3 Xeon E5 2650 V4 CPU DDR4 16GB (2*8GB) 2133MHZ RAM Memory NVME M.2 SATA C612 Chipset
E5-2650 V4 / 2xDDR4 8G 2133MHZ / Motherboard+CPU+RAM
HK$1,154.00 HKD
Angebotspreis
HK$1,154.00 HKD
Normaler Preis
HK$0.00 HKD
SOYO X99 Motherboard Set With LGA2011-3 Xeon E5 2650 V4 CPU DDR4 16GB (2*8GB) 2133MHZ RAM Memory NVME M.2 SATA C612 Chipset
HK$1,154.00 HKD
Angebotspreis
HK$1,154.00 HKD
Normaler Preis
HK$0.00 HKD
✔ I have reviewed the product version and details
Abholung derzeit nicht verfügbar
SPECIFICATIONS
Application: Desktop
Back I/O Ports: 1x RJ45
Battery Included: No
Brand Name: SOYO
Chipset: C612
Chipset Manufacturer: Intel
Form Factor: Micro-ATX
Maximum Ram Capacity: 128 GB
Memory channel: Double
Number Of Memory Slots: 8
Number of M.2: 2
Number of PCI: 2
Number of PCIe x 1: 1
Number of PCIe x 16: 1
Number of PCIe x 8: 0
Number of SATA Ports: 4
Onboard LAN: 1x RJ45
Origin: Mainland China
PCI - E standards: PCI-E 3.0
Package: Yes
Processor compatibility: Intel Xeon E Series
RAID Supported: No
Socket Type: LGA 2011-3
Special Features: None
Storage Interface Type: SATA,SATA 2,SATA 3,M.2 (NVMe)
Support Memory Type: DDR4
Support USB Type: USB 2.0,USB 3.0
Supports M.2 SSD: 2242,2280
Usage Scenario: Gaming,Audio & Video,Office,Video Production
With CPU: Yes

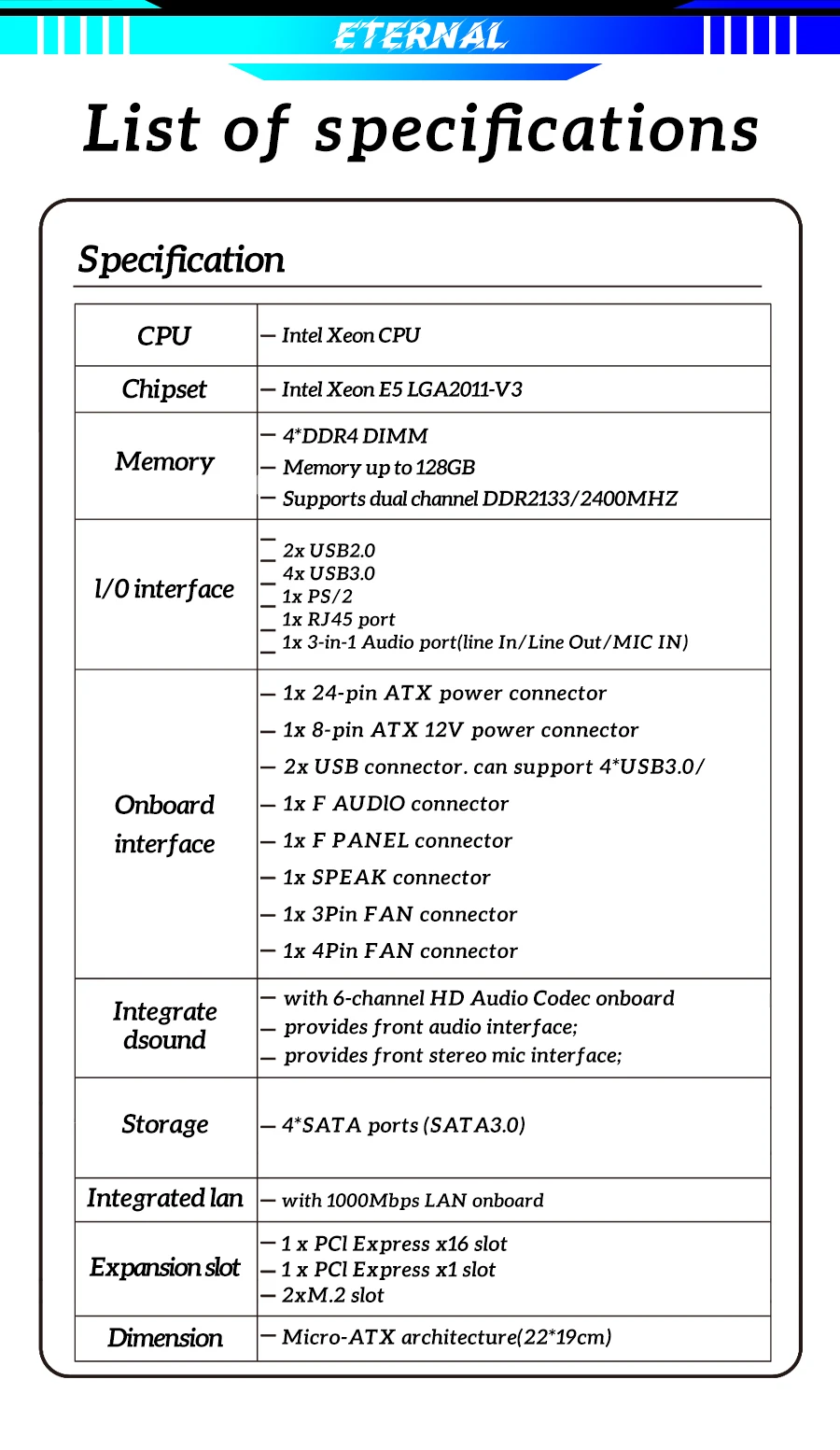

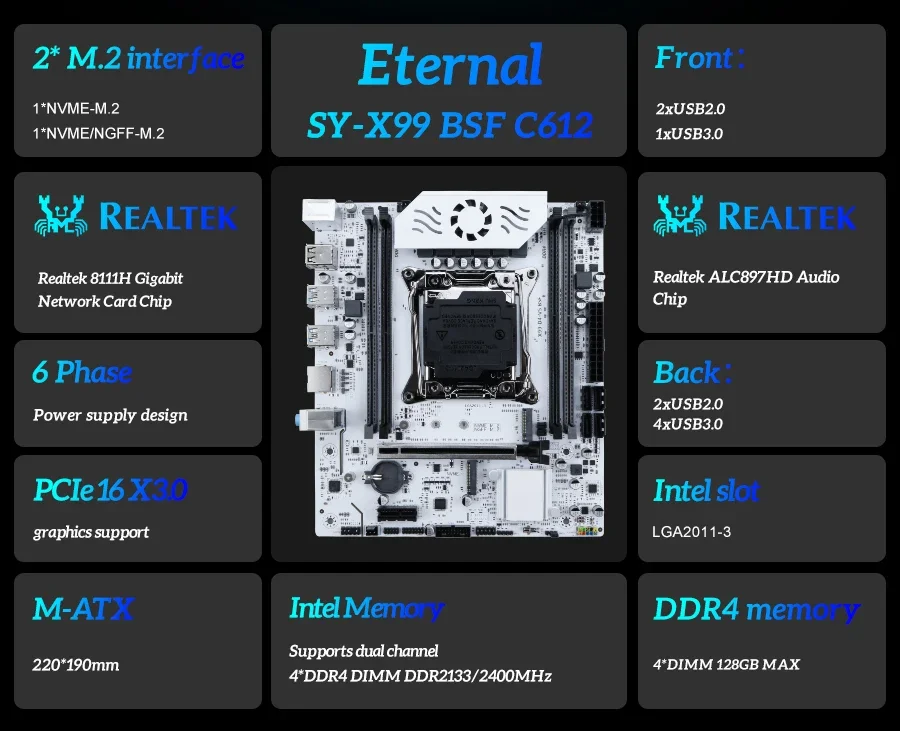

**Product Specifications**
**Chipset**
Intel C612

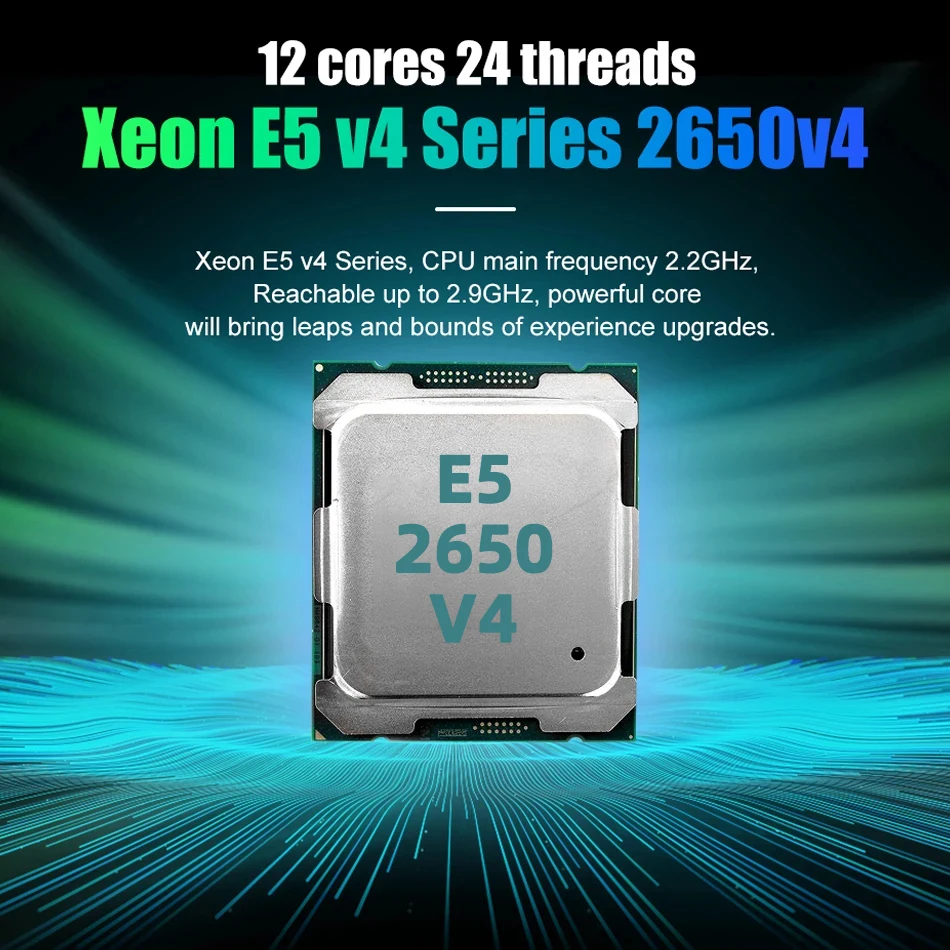

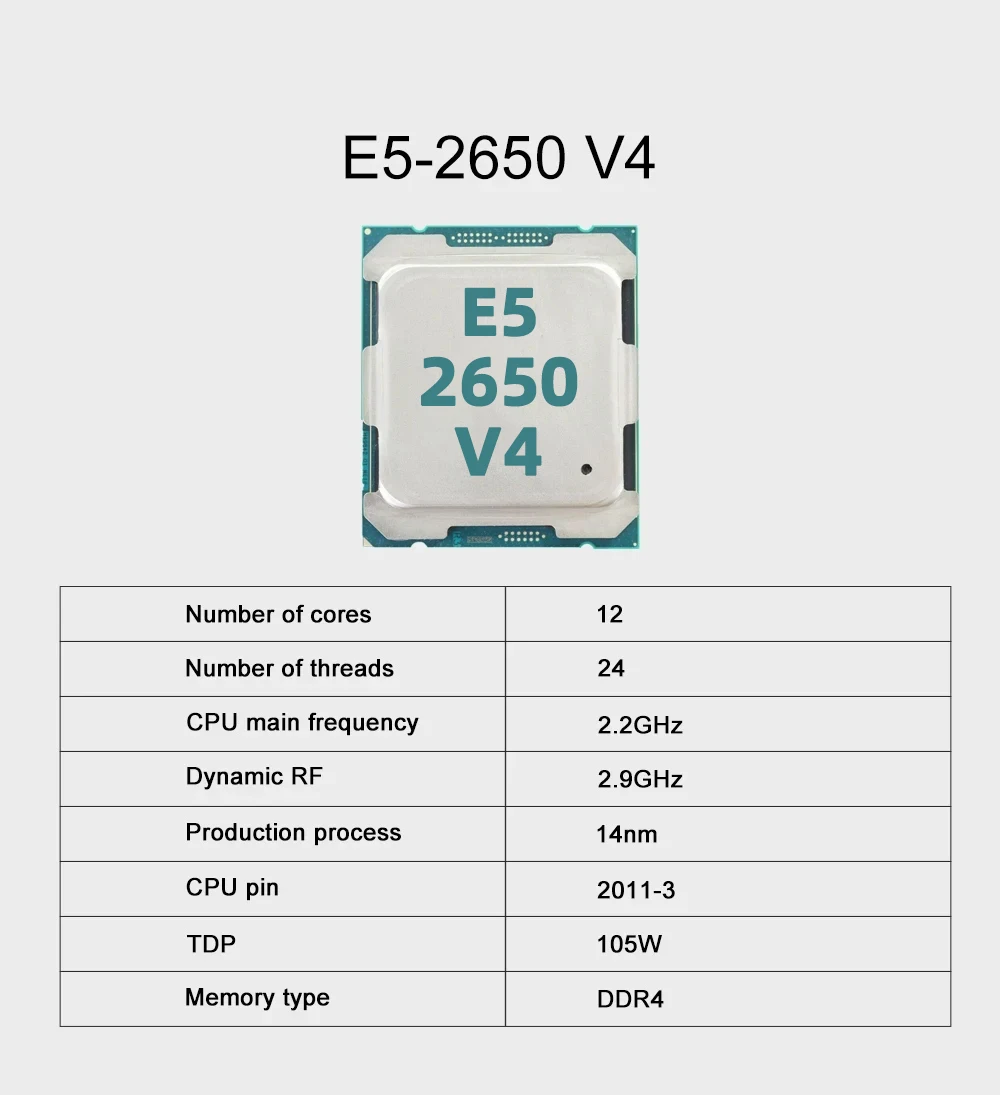

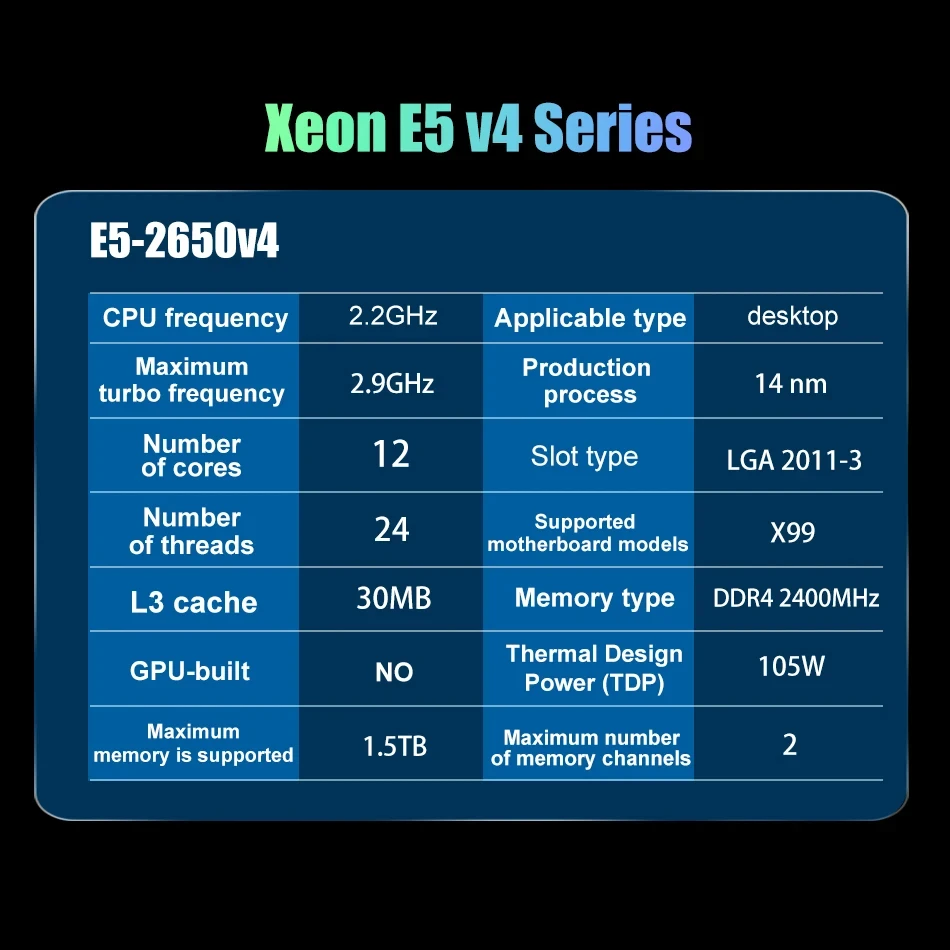

**CPU**
- Intel Xeon E5 LGA2011-V3 socket processors
- Supported models: E5-2603V3, 2666V3, 2673V3, 2680V3, 2678V3, 2696V3, 2684V4, 2696V4, etc.

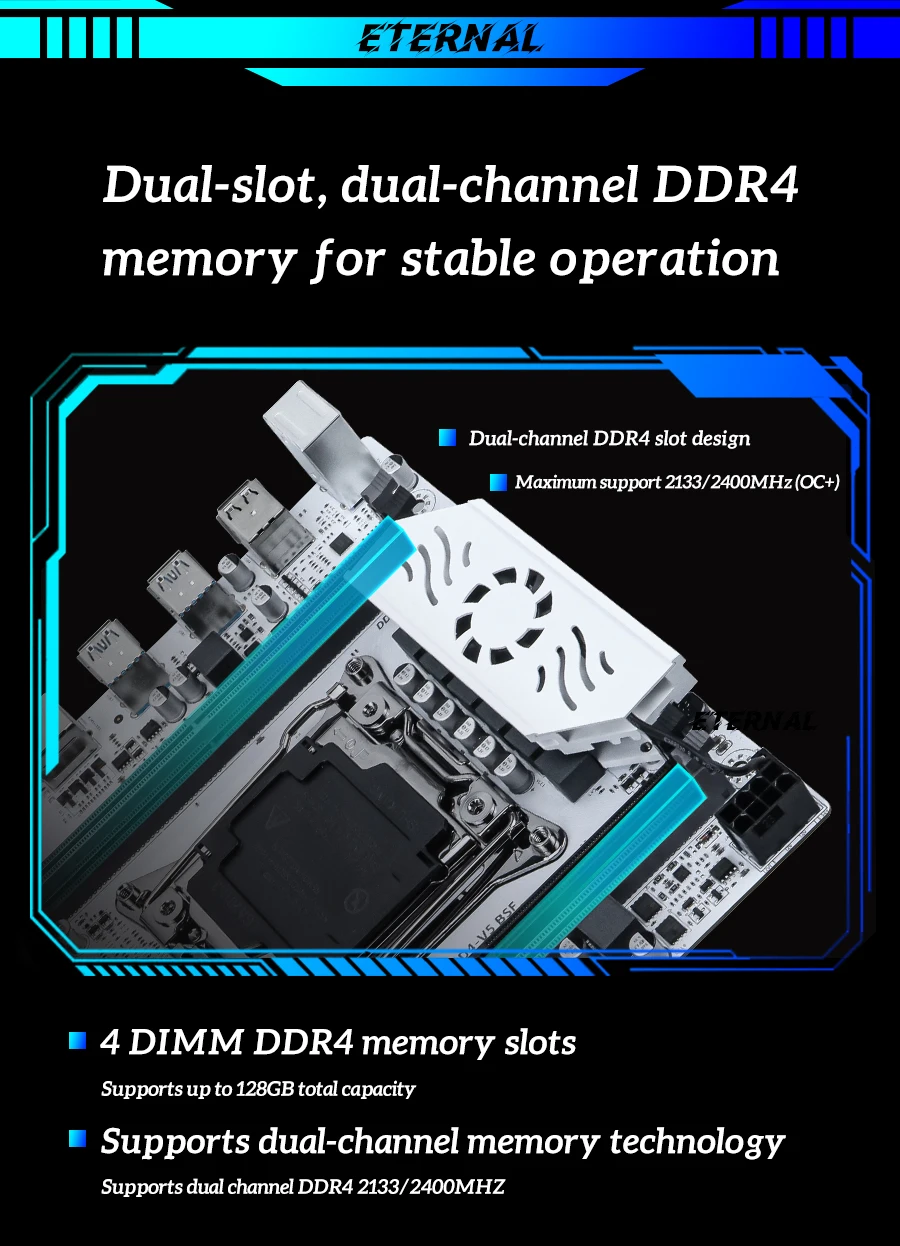

**Memory**
- 4 x DDR4 DIMM slots
- Supports 2133/2400MHz (Max), up to 128GB (32GB x 4)
- Gray slots indicate primary channels

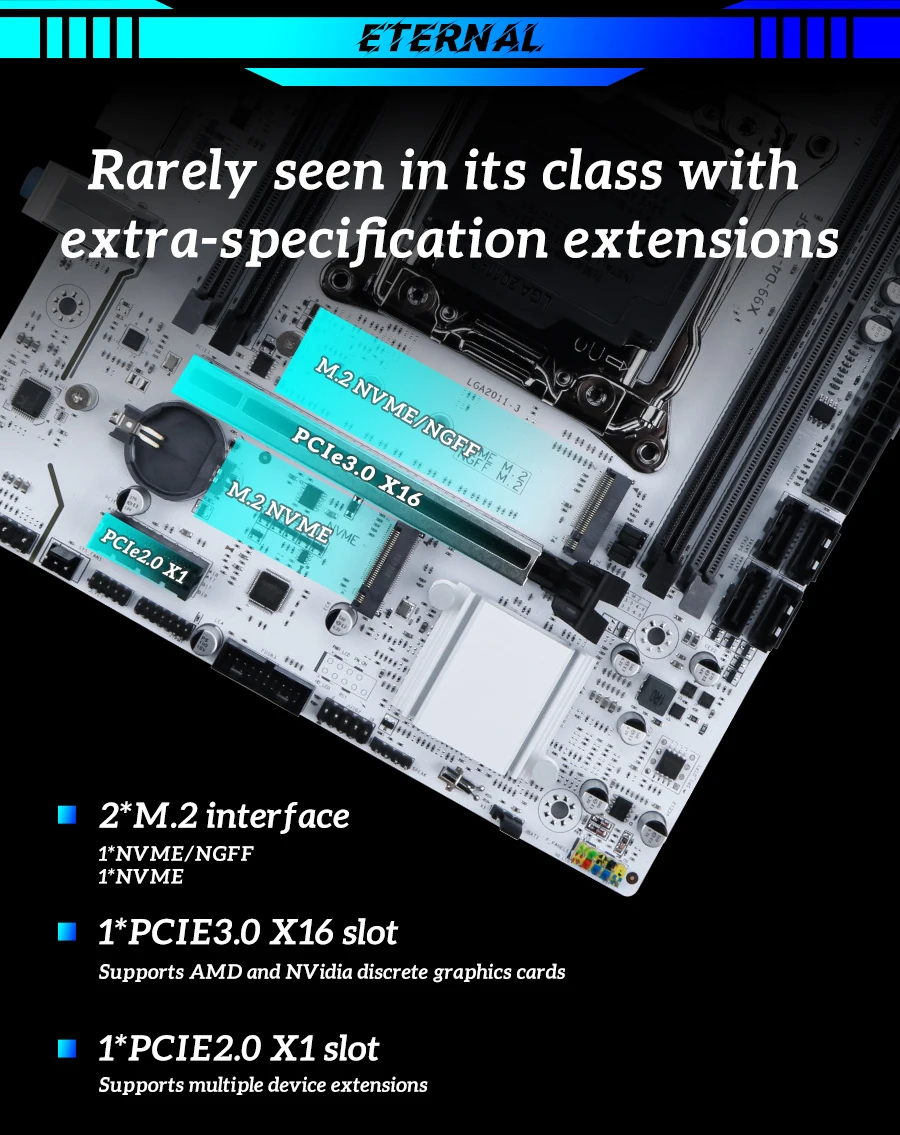

**Storage**
- 2 x M.2 slots:
- **Upper slot**: NVMe protocol (PCIe 3.0 x4/SATA3.0)
- **Lower slot**: NVMe protocol (PCIe 3.0 x4)
- 4 x SATA3.0 interfaces
**TPM**
- 1 x 14-pin header (compatible with MSI 14-pin/TPM 2.0 module)
**Networking**
- 1 x RJ45 port
- **LAN chip**: Realtek RTL8111H Gigabit Ethernet
**PS/2 Ports**
- 1 x PS/2 Keyboard port
- 1 x PS/2 Mouse port
**Audio**
- Rear I/O: 1 x Line Out, 1 x MIC In, 1 x Line In
- Internal header: 1 x Front Audio header
- **Audio chip**: Realtek ALC897 HD Audio
**USB Ports**
- Rear I/O: 2 x USB 2.0, 4 x USB 3.0
- Internal headers:
- 1 x USB 2.0 header (expandable to 2 ports)
- 1 x USB 3.0 header (expandable to 2 ports)

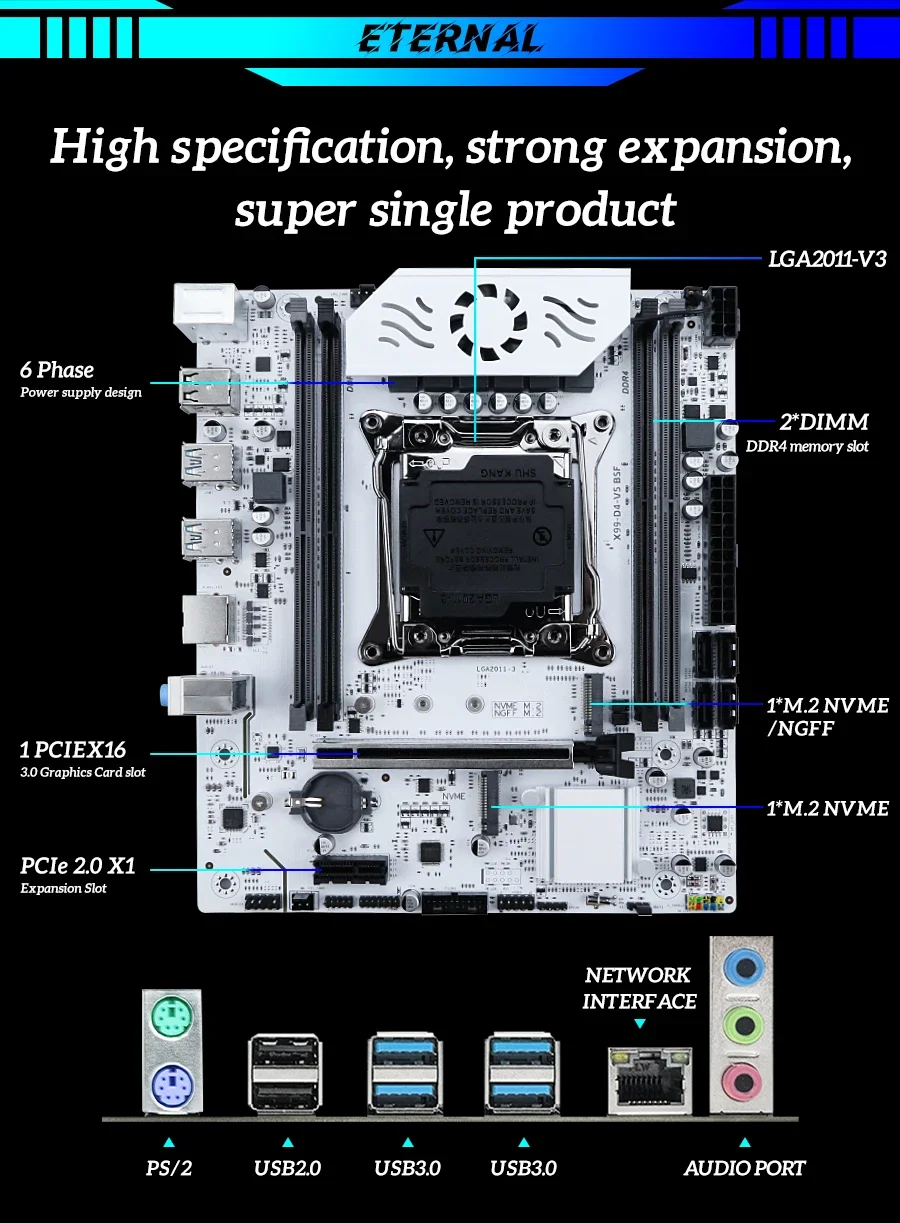

**PCIe Slots**
- **PCIe1**: PCIe x16 3.0 slot (from CPU)
- **PCIe2**: PCIe x1 2.0 slot (from PCH)
**Functional Headers**
- 1 x FPANEL (front panel)
- 1 x 4-pin CPU fan
- 1 x 3-pin system fan
- 1 x JBAT (CMOS clear)
- 1 x JLPC (LPC debug)
- 1 x SPEAK (system speaker)

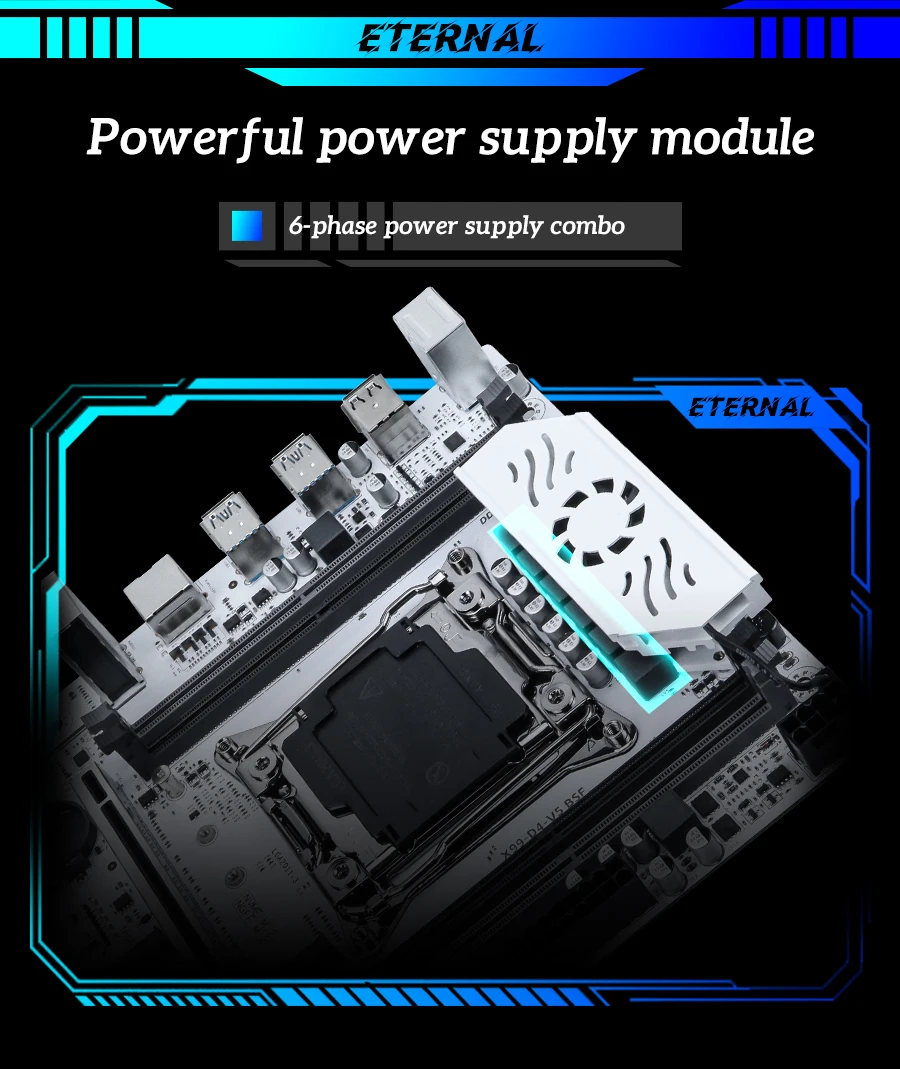

**Power Input**
- 24-pin ATX + 8-pin EPS connectors
**Dimensions**
- 220 x 190mm (4-layer PCB)
