SPECIFICATIONS

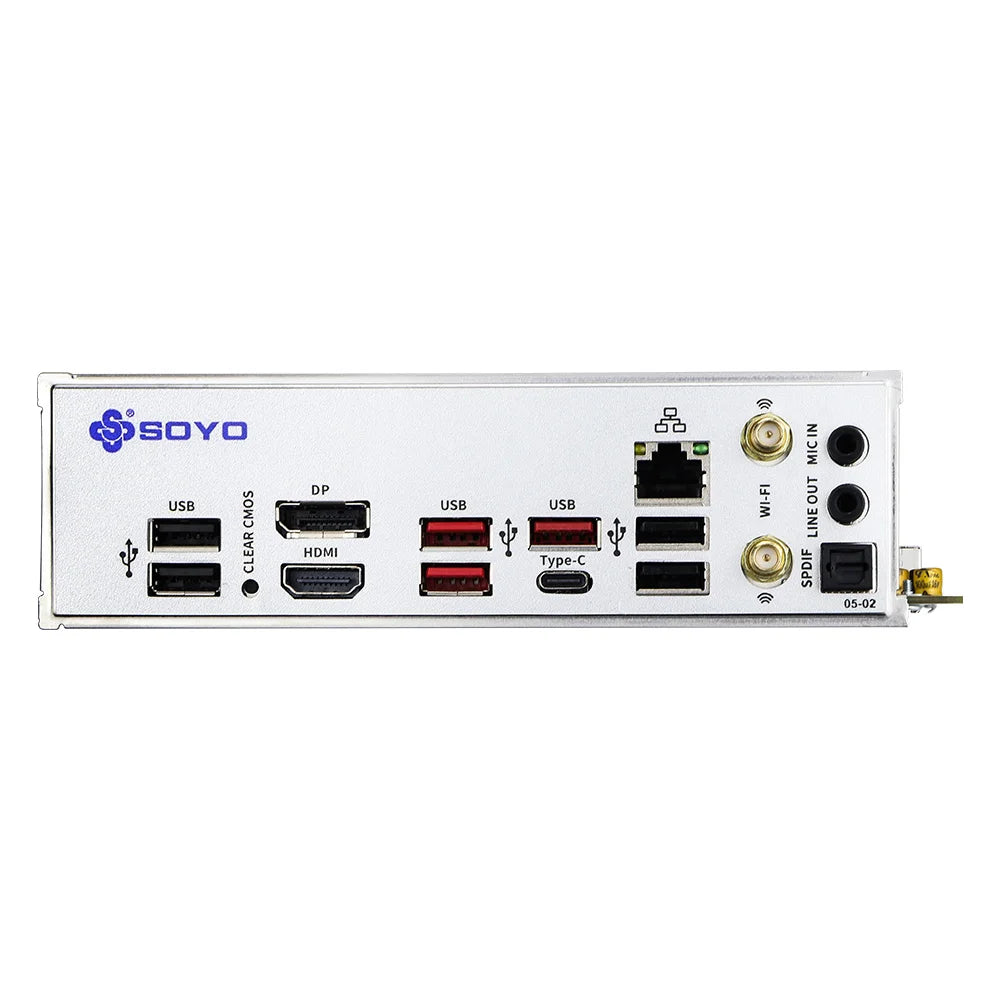

Back I/O Ports: 1x RJ45,WiFi,Disply Port,HDMI 2.0

Battery Included: No

Brand Name: SOYO

Chipset Manufacturer: AMD

Maximum Ram Capacity: 64 GB

Number of PCI: 1

Onboard LAN: 1x RJ45,WIFI 6 (AX),Bluetooth v5.1

PCI - E standards: PCI-E 5.0

Package: Yes

Processor compatibility: AMD Ryzen 7000 Series-R3,AMD Ryzen 7000 Series-R5,AMD Ryzen 7000 Series-R7,AMD Ryzen 7000 Series-R9

RAID Supported: Yes

Special Features: Cooling Armor

Storage Interface Type: SATA 3,M.2 (NVMe)

Support Memory Type: DDR5

Usage Scenario: Enthusiast & Overclocking,Gaming,Audio & Video,Video Rendering,MaxCompute

With CPU: No

> > CPU parameters:AMD AM5 Ruilong 7000/8000/9000 Series Desktop Processors

> > memory parameters:2*DDR5, supporting 4800~6000+MHz frequency (synchronous overclocking), with a maximum capacity of 64G.

> > hard disk interface:1*M.2 interface (supporting PCIE5.0 x4 speed), 1*M.2 interface (supporting PCIE4.0 x4 speed on the back), 4*SATA3.0 interface.

> > USB interface:It always supports 6*USB2.0 interface, 5*USB3.2 interface and 2*TYPC interface (up to 10gbps, transmission only).

> > display interface:1*HDMI (supporting 2.0), 1*DP (supporting 1.4)

> > expansion slot:1*PCIE-16X (supporting 5.0x16)

> > audio parameters:Realtek ALC897 series high definition audio independent sound card is adopted.

> > NIC interface:1*Realtek 8125 2.5G network card, 1*M.2 WIFI interface (pcie protocol).

> > power supply interface:1*24PIN ATXPWR 1*8PIN ATX12V
