SPECIFICATIONS

Application: Desktop

Back I/O Ports: 1x RJ45

Battery Included: No

Brand Name: MACHINIST

Chipset: C612

Chipset Manufacturer: Intel

Choice: yes

Form Factor: Micro-ATX

High-concerned chemical: None

Max LAN Speed: 1000Mbps

Maximum Ram Capacity: 128 GB

Memory channel: Four

Number Of Memory Slots: 4

Number of M.2: 4

Number of PCI: 0

Number of PCIe x 1: 1

Number of PCIe x 16: 1

Number of PCIe x 4: 1

Number of PCIe x 8: 0

Number of SATA Ports: 6

Onboard Connectors & Header: 24-pin Main Power Connector,CPU Fan Connector(s),4-pin +12V Power Connector

Onboard LAN: 1x RJ45

Origin: Mainland China

PCI - E standards: PCI-E 3.0

Package: Yes

Ports: USB 3.0

Processor compatibility: Intel Xeon

RAID Supported: No

Socket Type: LGA 2011-3

Special Features: None

Storage Interface Type: SATA 2,M.2 (NVMe)

Support Memory Type: DDR4

Support USB Type: USB 2.0,USB 3.0

Supports M.2 SSD: 2280

Usage Scenario: Gaming,Audio & Video,Office,Video Production,others

With CPU: No

> > The TPM interfaces of the X99 V9S and X99 U9 models can only be installed using the TPM2.0 accessory suitable for ASUS 14-pin.

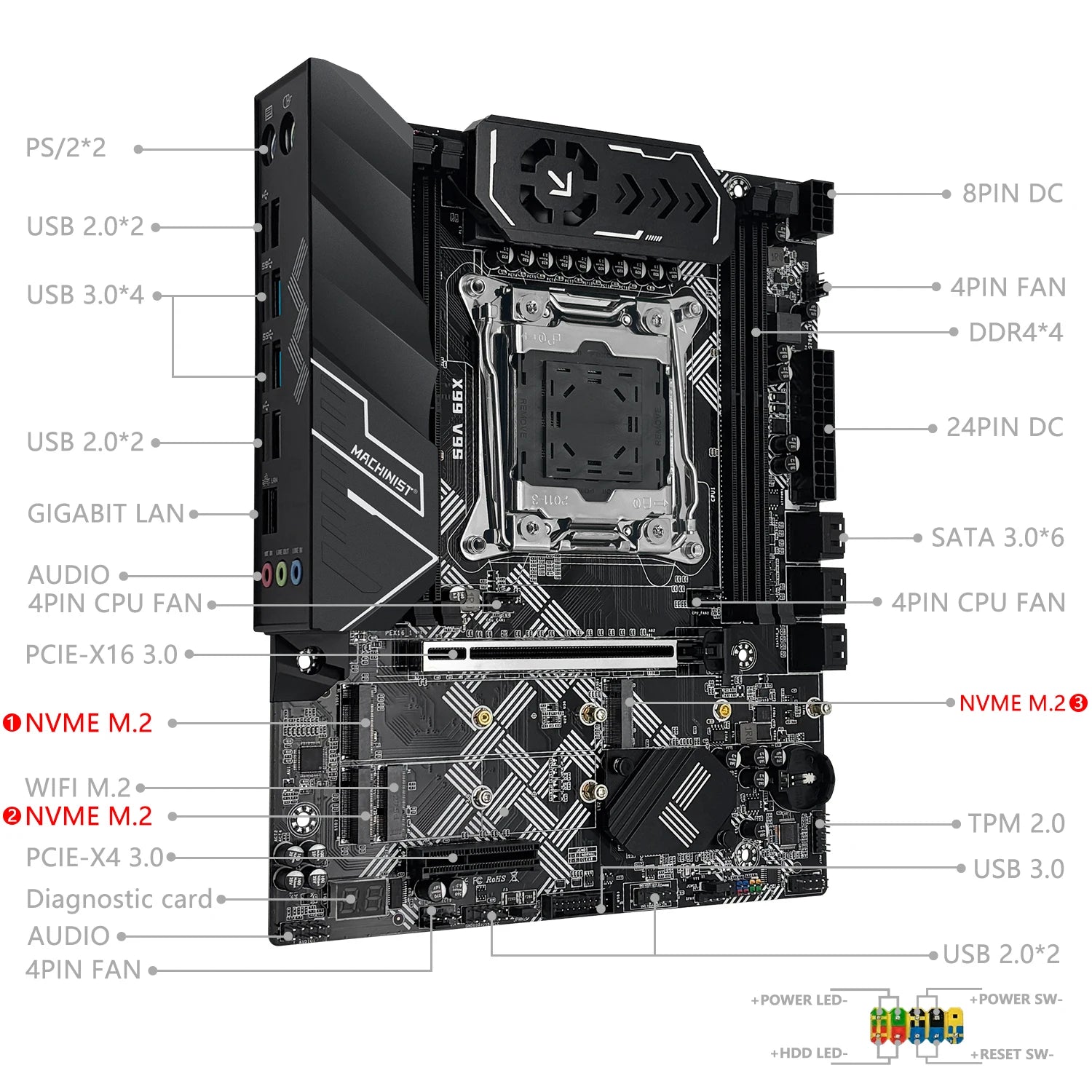

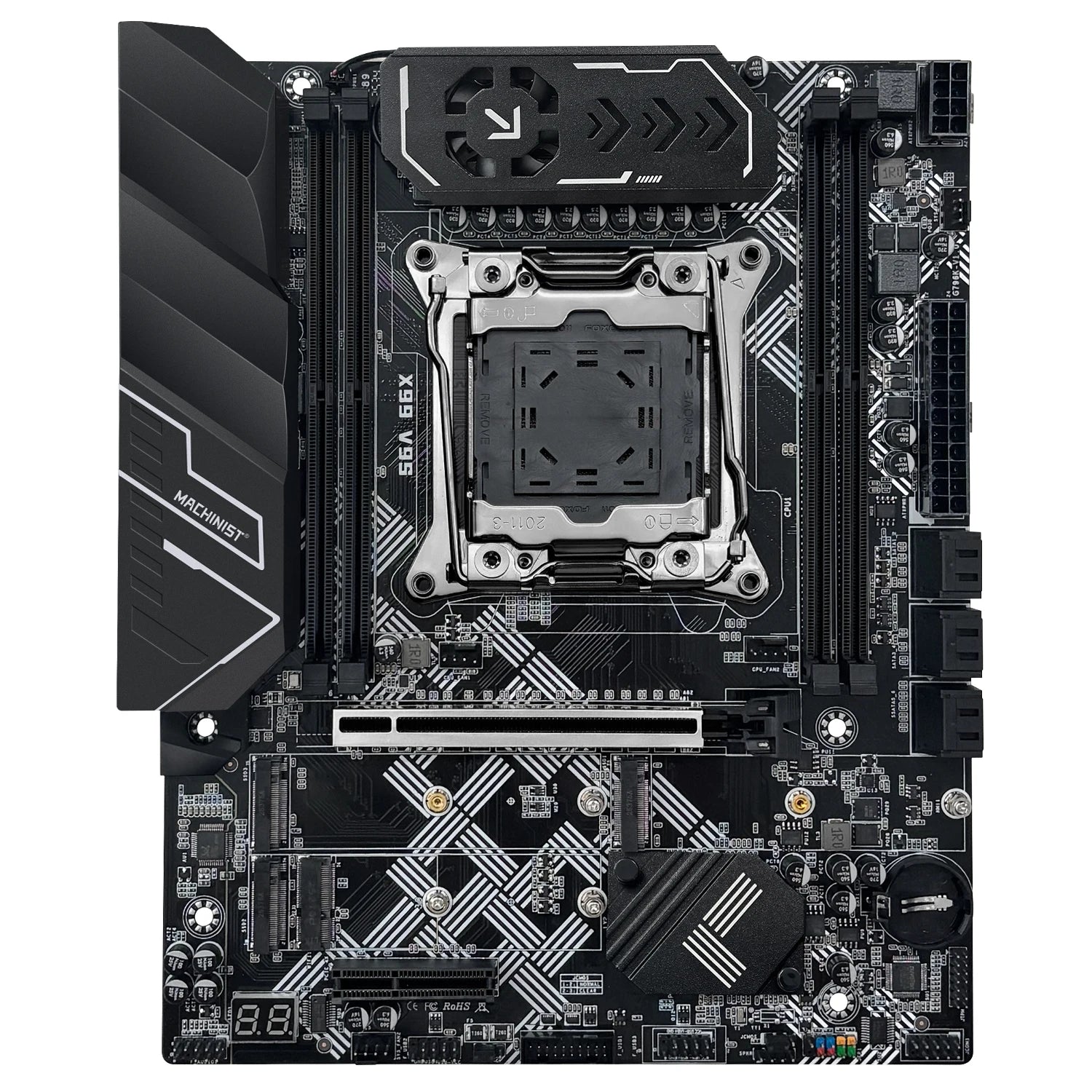

>> Motherboard information:

Brand :MACHINIST.

Motherboard model :X99 V9S .

Processor :Intel LGA 2011-3 pin series processor.

Chipset: X99/C612 Chipset.

> > Memory:

Technology: Four-channel DDR4.

The maximum capacity is 128GB (32G x 4).

Memory slot :4*DDR4.

Supported memory types: Supports DDR4 desktop memory and server memory.

Please use international brands such as Samsung, Kingston, Sandy, Micron and Hynix. Other brands may be incompatible."

>> Others:

Diagnosis card :1;

TPM interface: Applicable to ASUS 14-pin TPM2.0;

M.2 interface: 3 NVME M.2 interfaces;

WIFI: 1 NGFF M.2;

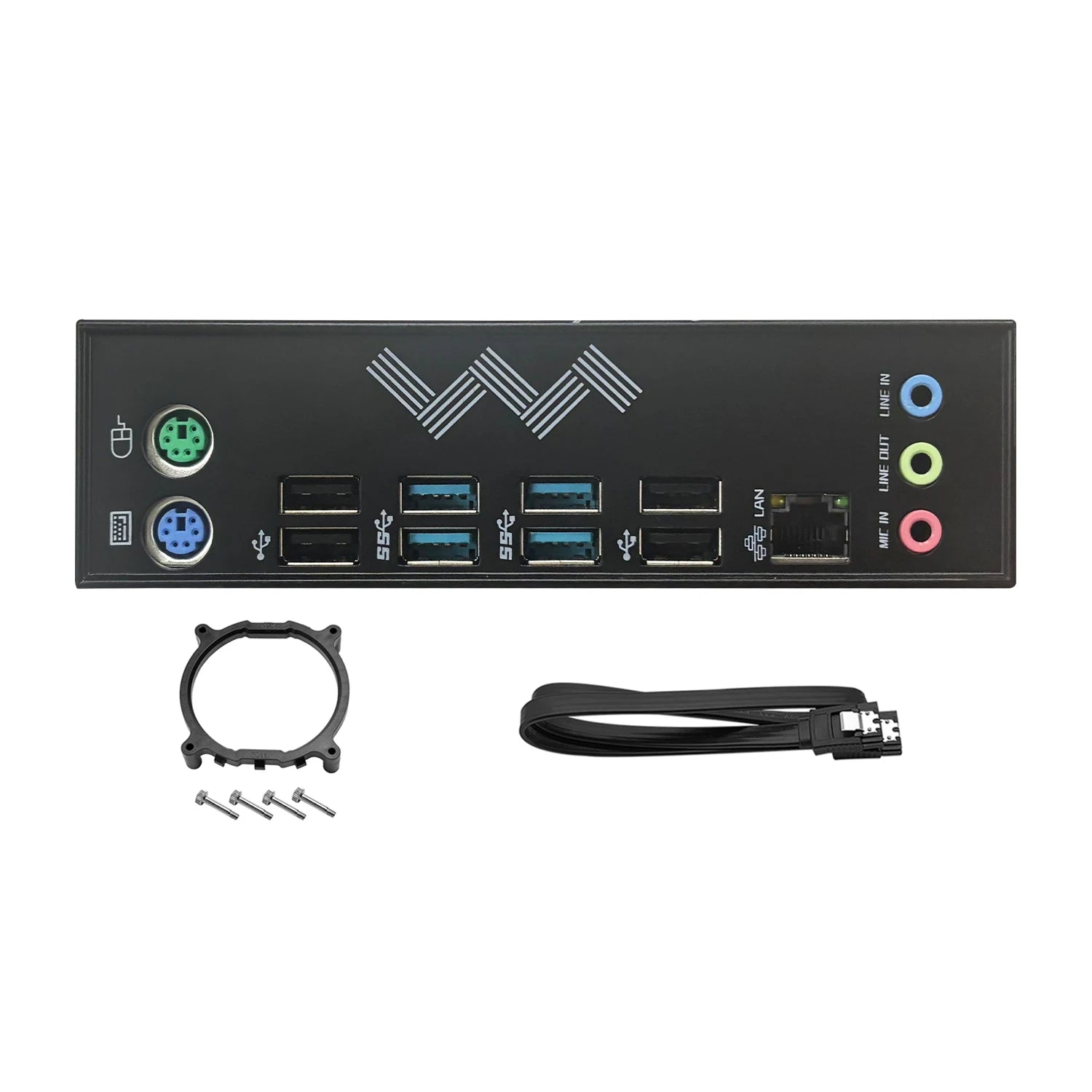

USB interface :4 USB2.0 ports; Four USB3.0 ports;

Ethernet: Gigabit network card;

PCIe: 1 PCIe 16x, 1 PCIe 4x;

SATA interface :6 (6 SATA3.0);

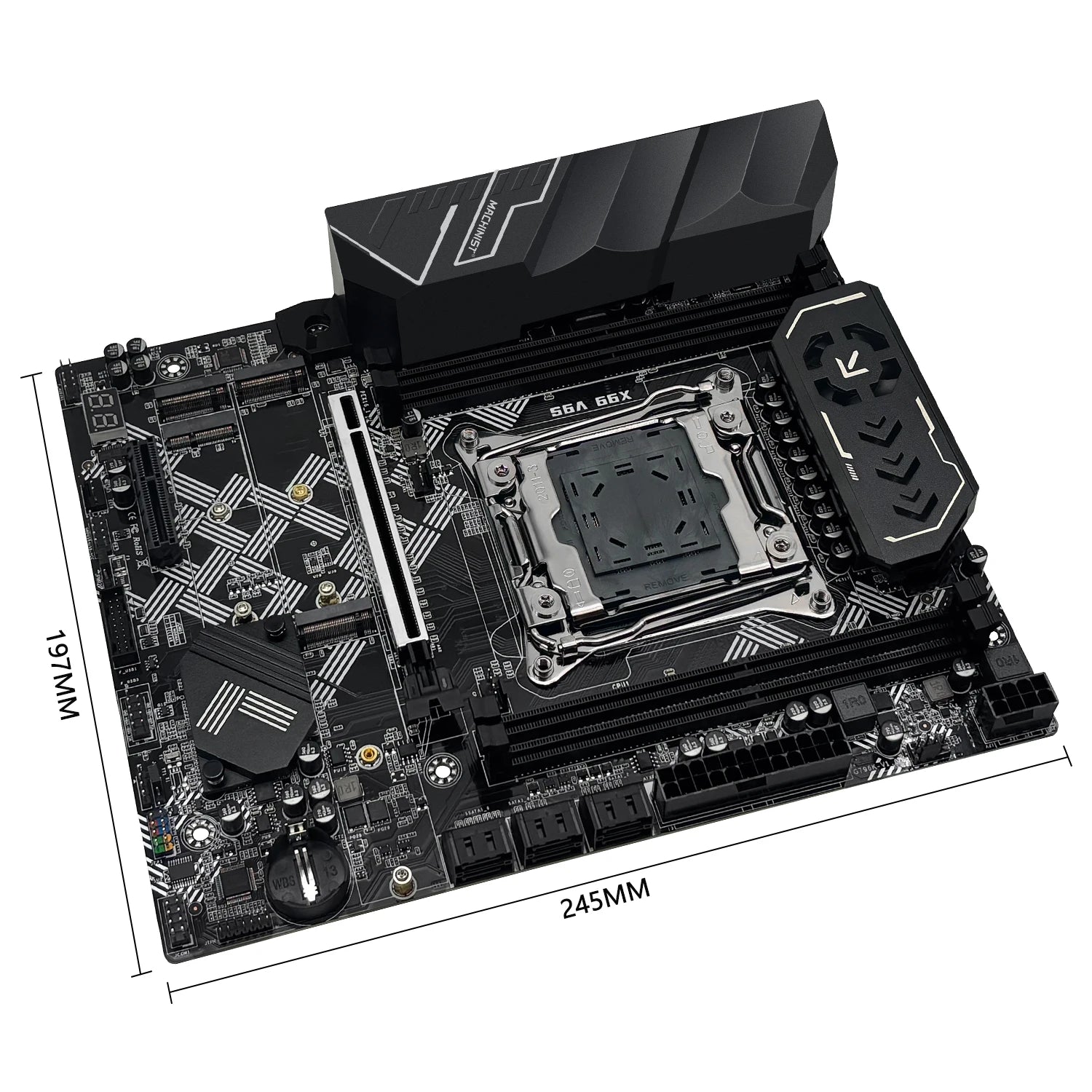

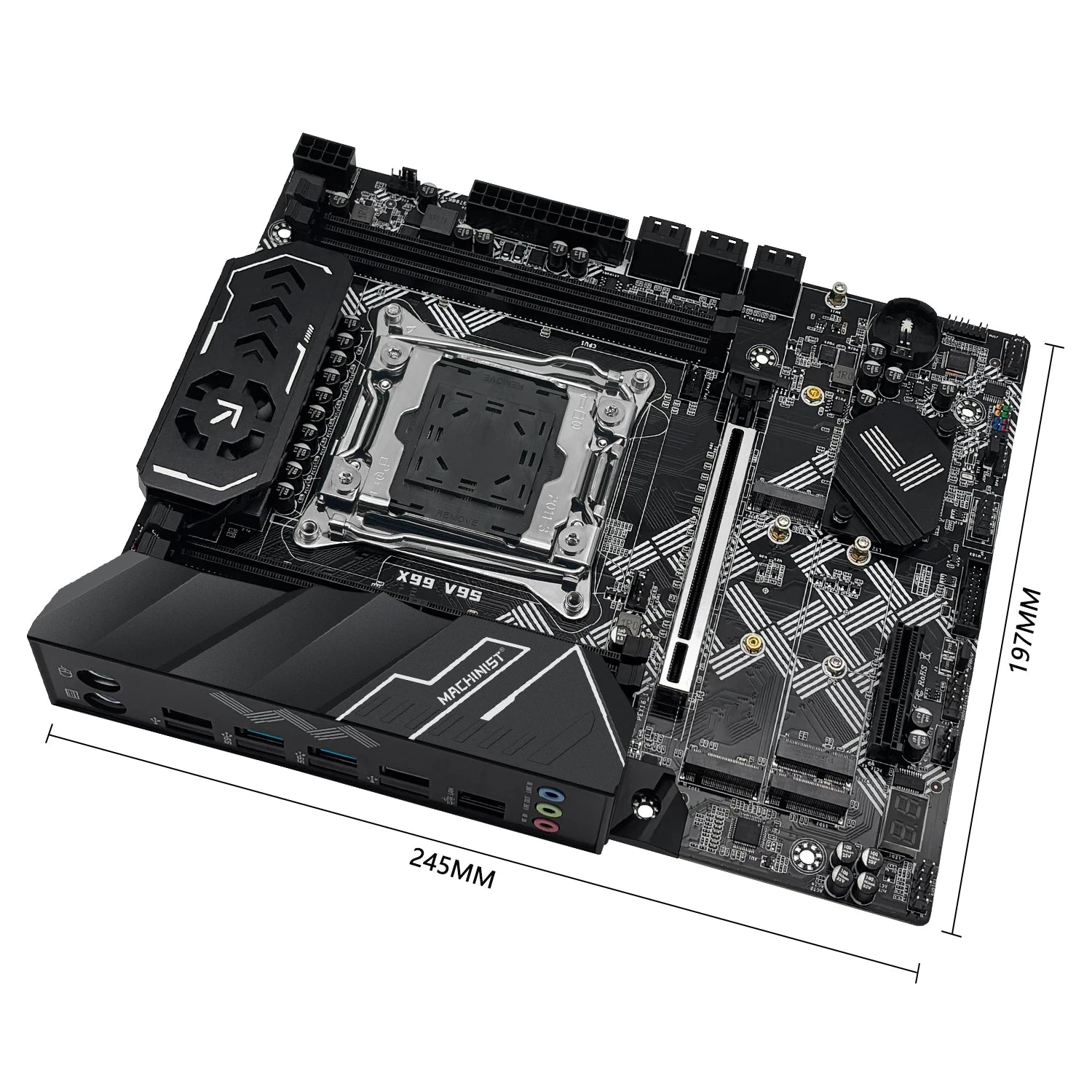

Overall dimensions :245mm * 197mm.

> > Regarding the tariff issue, please ensure that you can handle the customs clearance by yourself. If you cannot, we do not recommend that you purchase goods in our store. We are not responsible for tariffs. Thank you for your understanding.

> > Note:

(1) The color of the bottom plate of the trough may vary from batch to batch, but it will not affect the use of the product. The products are constantly being optimized and upgraded.

(2) Due to manual measurement, please allow an error of 1 to 3mm.

(3) Due to different displays and lighting conditions, the picture may not show the actual color of the item. Thank you for your understanding.

(4) This platform requires a powerful power supply. Please ensure that your power supply is sufficient to support this platform. (At least 500w brand power supply

(5) The battery in the motherboard photo is not included. It will be removed before shipment because the logistics requirements prohibit the use of this battery.
