SPECIFICATIONS

Accessories Type: Leverless Controller,Hitbox Leverless Controller

Arcade Controller: Leverless controller

Brand Name: haute42

Compatible Brand/Model: PC

Electric: Yes

Feature: 16 button with RGB mode,with Button Rim/Ambient Light,Magnetic Panel

Hign-concerned Chemical: None

Item: C16-S

Model Number: Hautepad C16 -S

Origin: Mainland China

PC System: Windows 10

Supported platforms: For PC/PS4/PS5/Switch 2 switch /Steam

With USB: YES

is_customized: YES

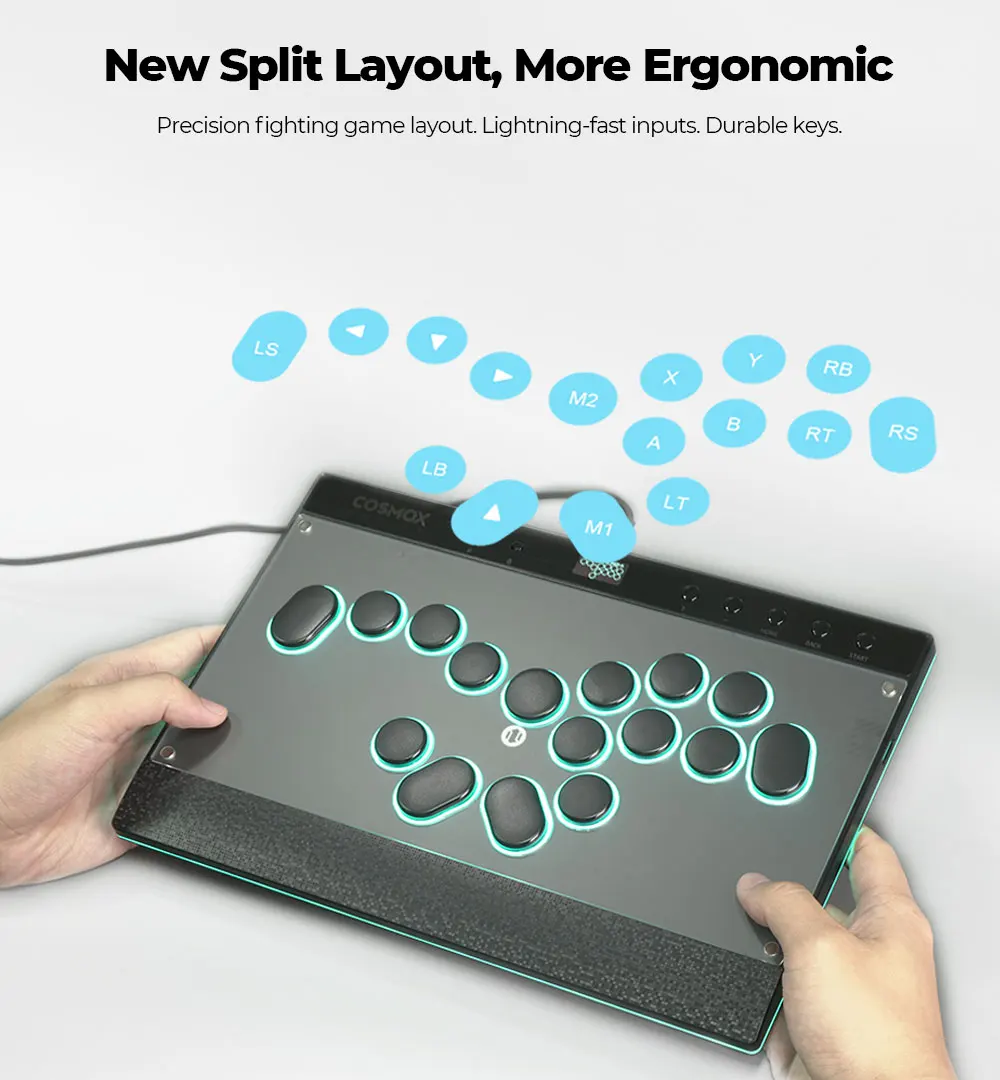

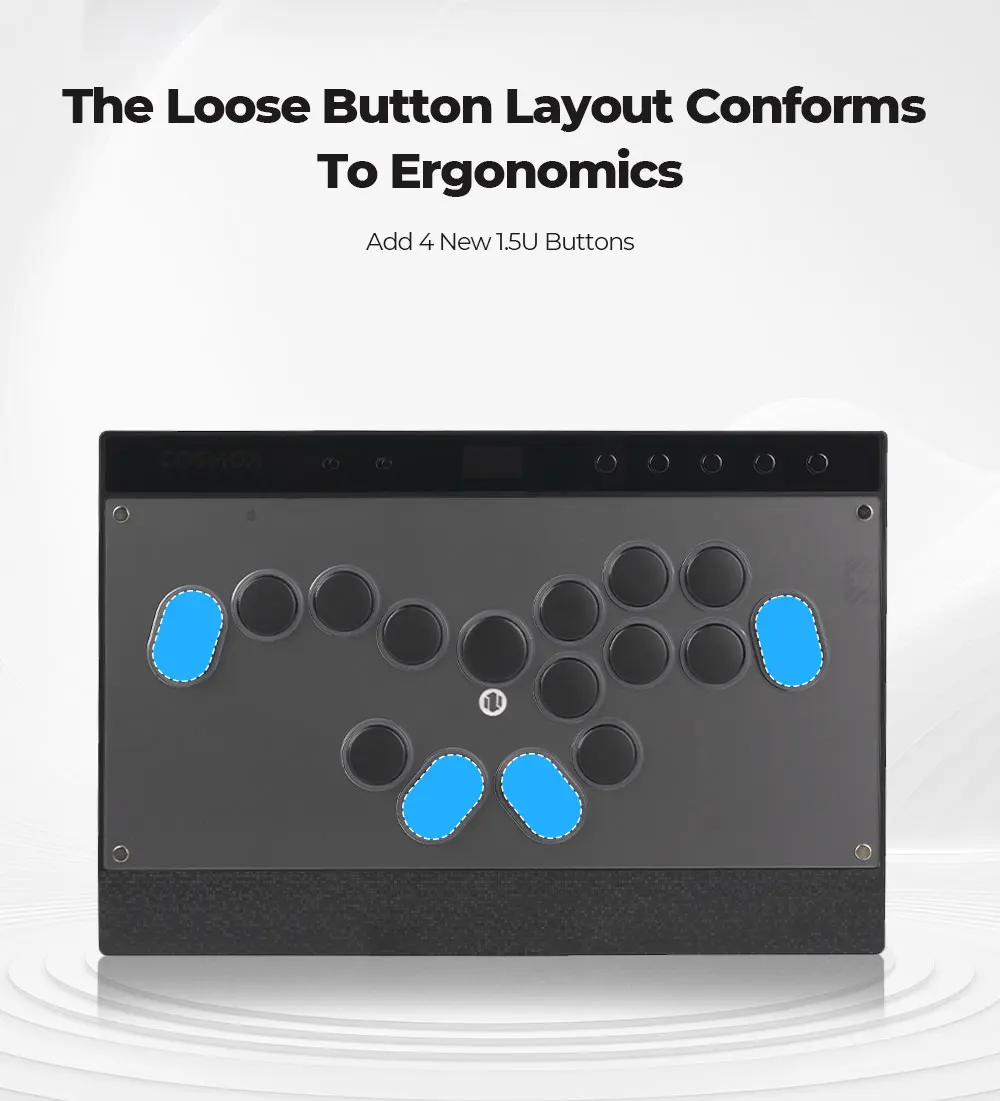

keyboard layout: Split Layout

leverless arcade stick: hitbox controller

Haute42 Magnetic Stickless Arcade Controller Keyboard C16-S Hitbox Leverless Controller For PC/PS4/PS5/Switch2/Switch Fight Stick Hitbox

Product Description

Working voltage: 5V

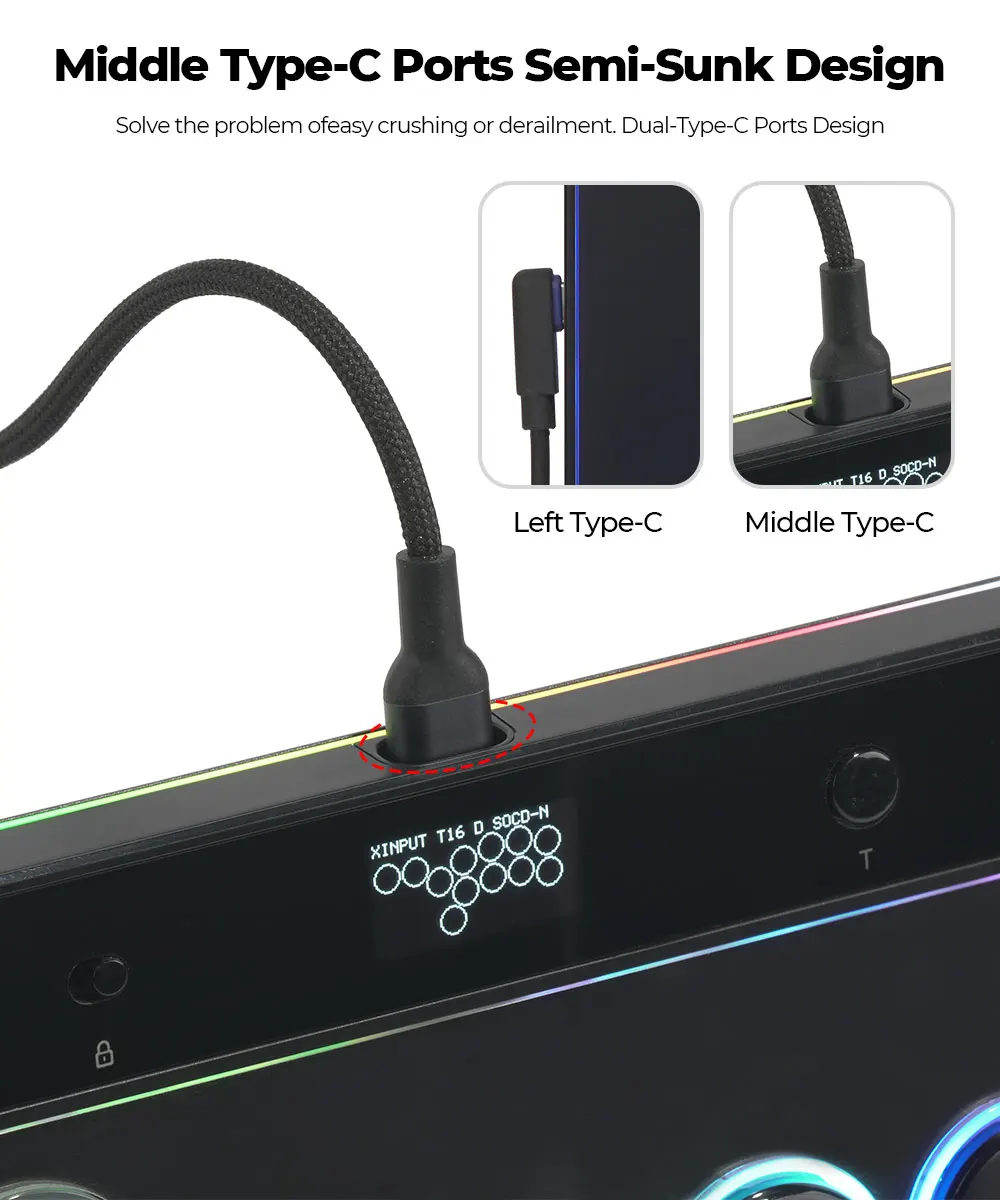

Link method: USB Type-C

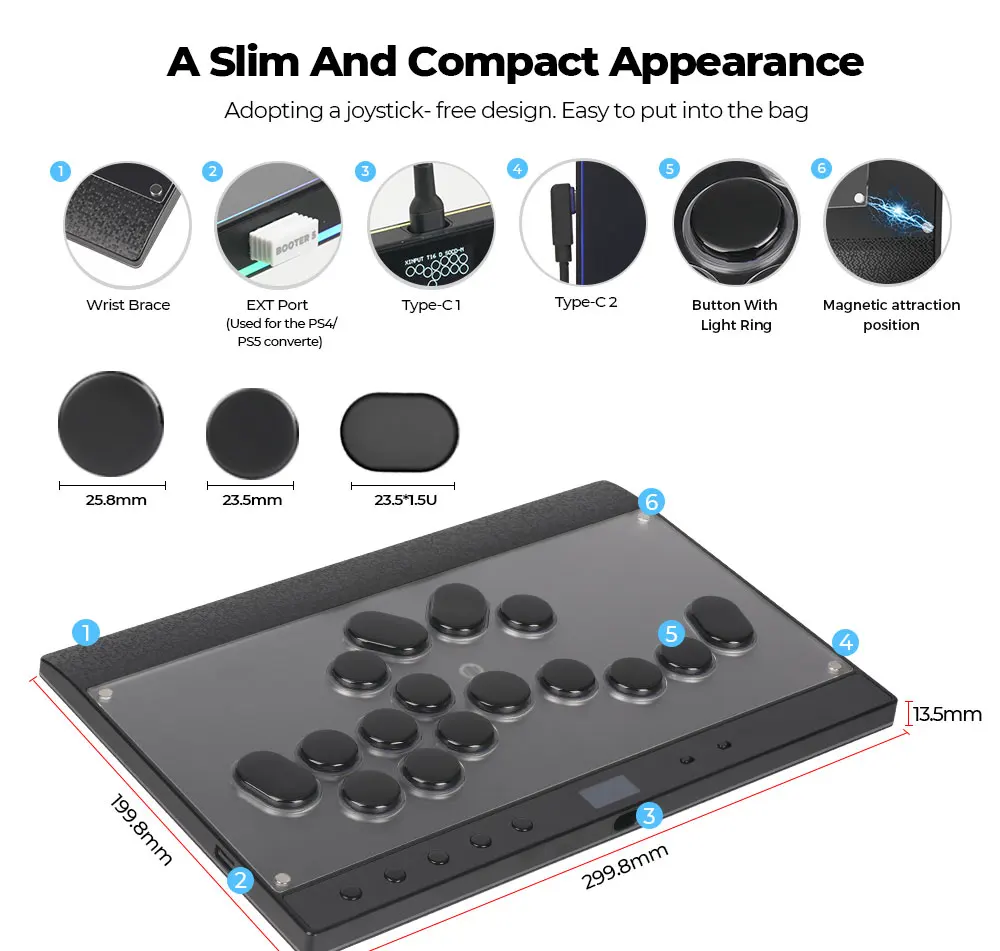

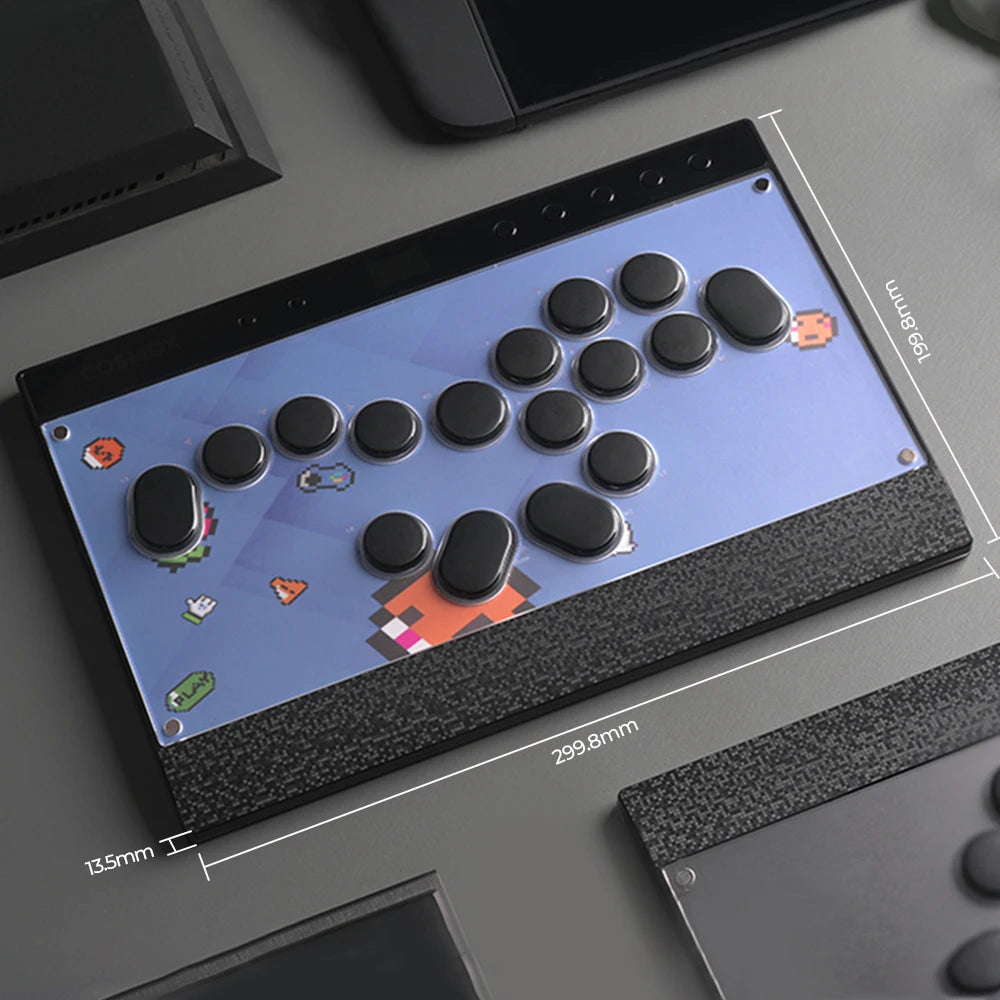

Product size: 299.8mm * 199.8mm * 13.5mm

Supported Platforms : pc /ps3/ps4/switch/ Android/Steam

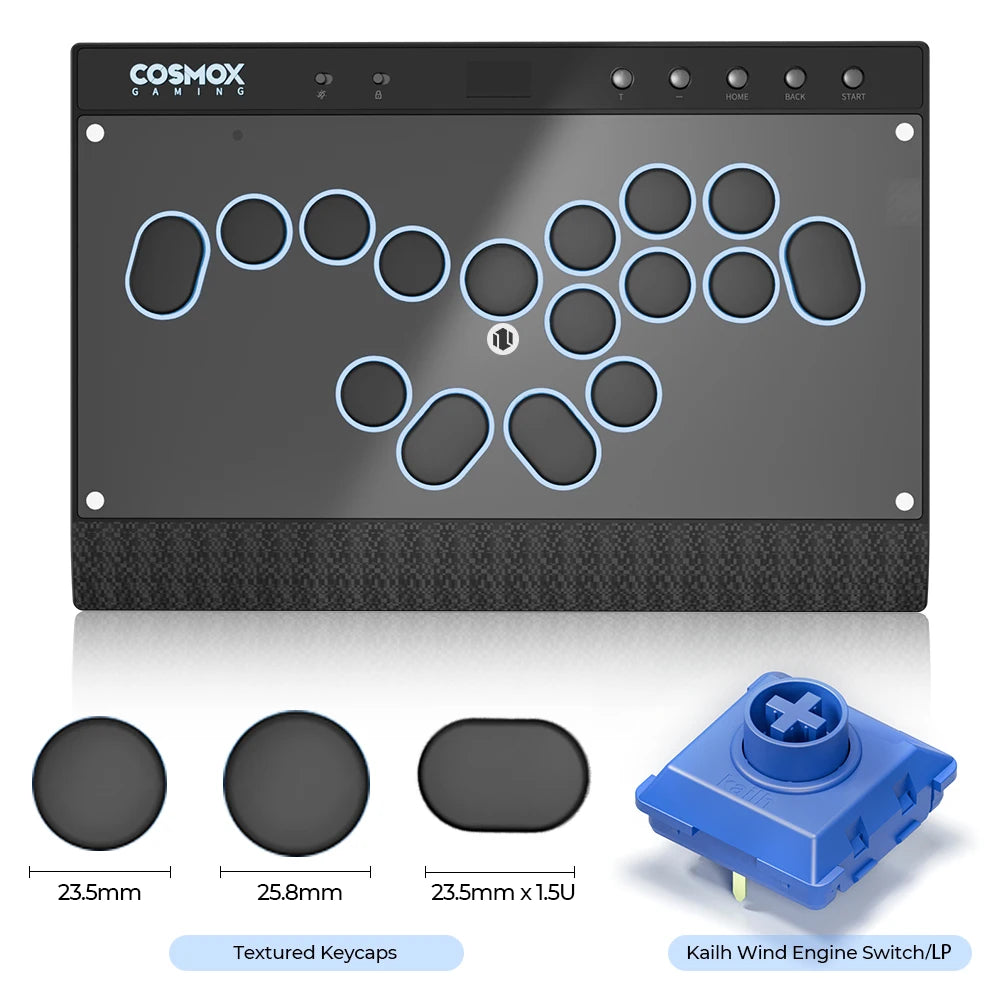

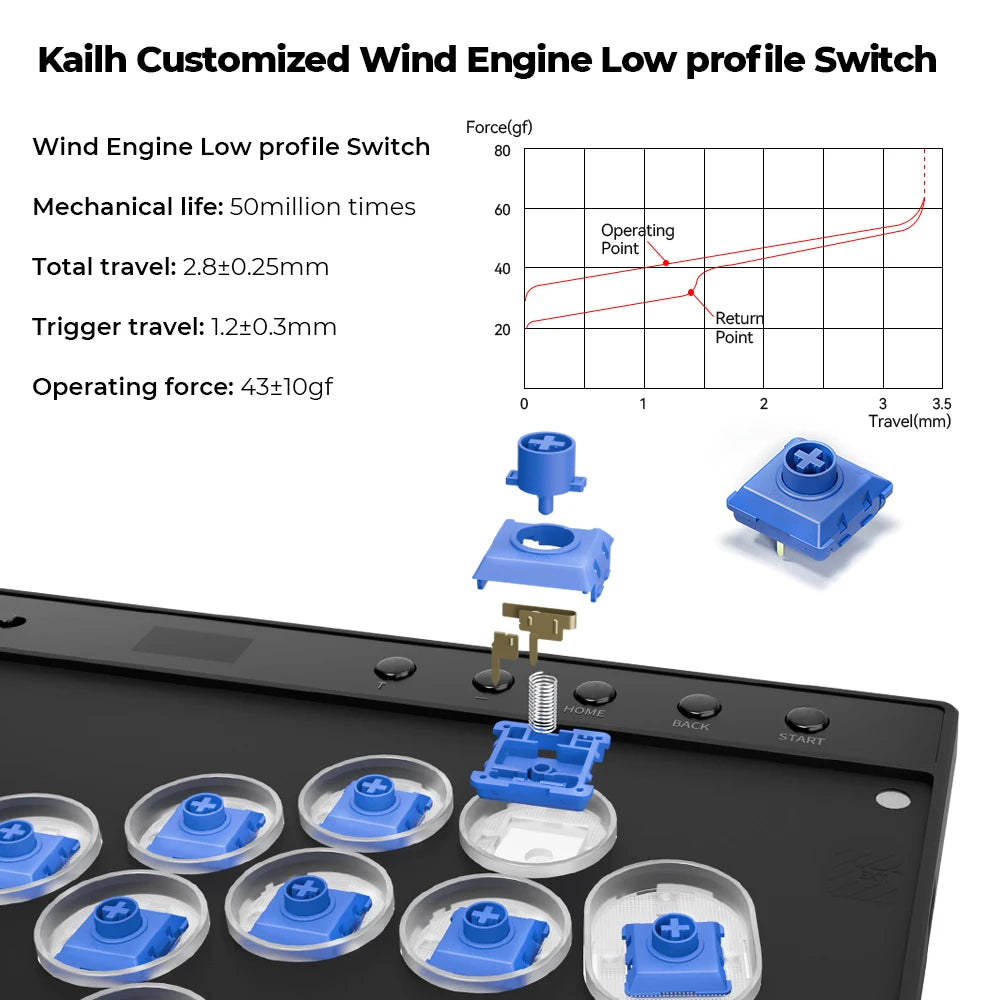

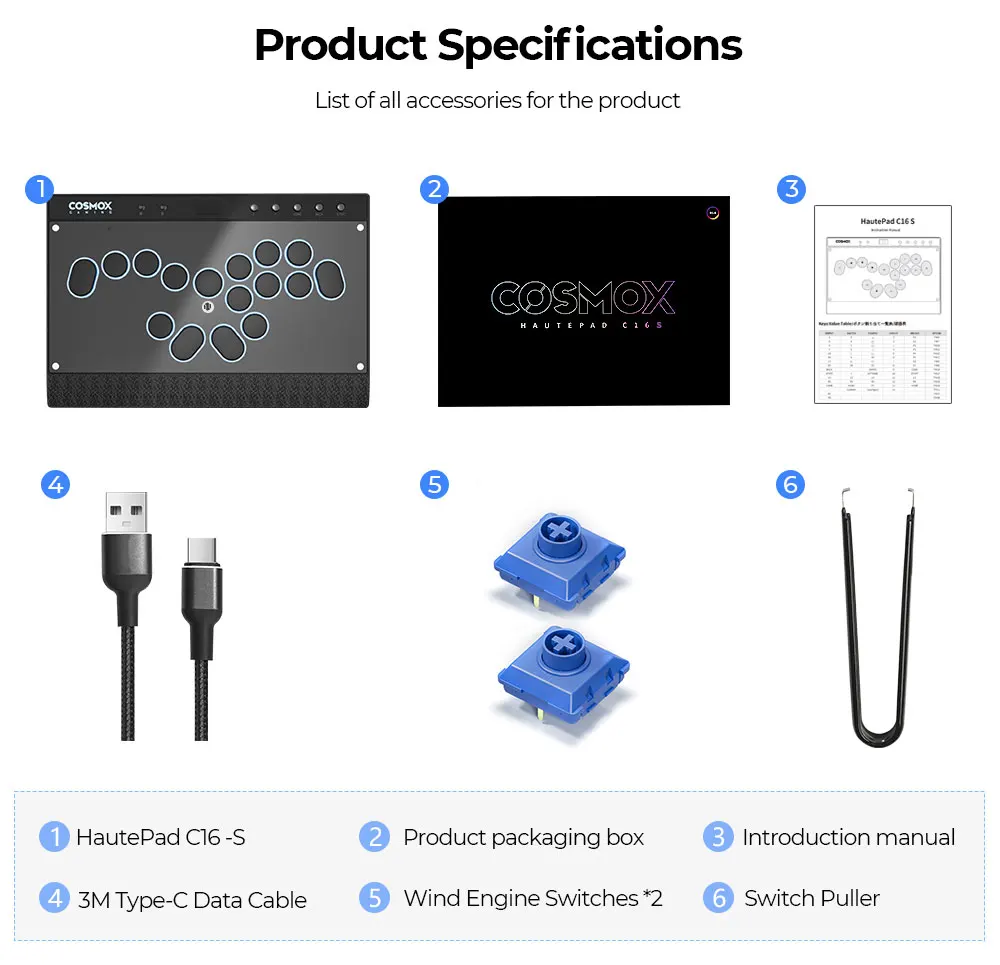

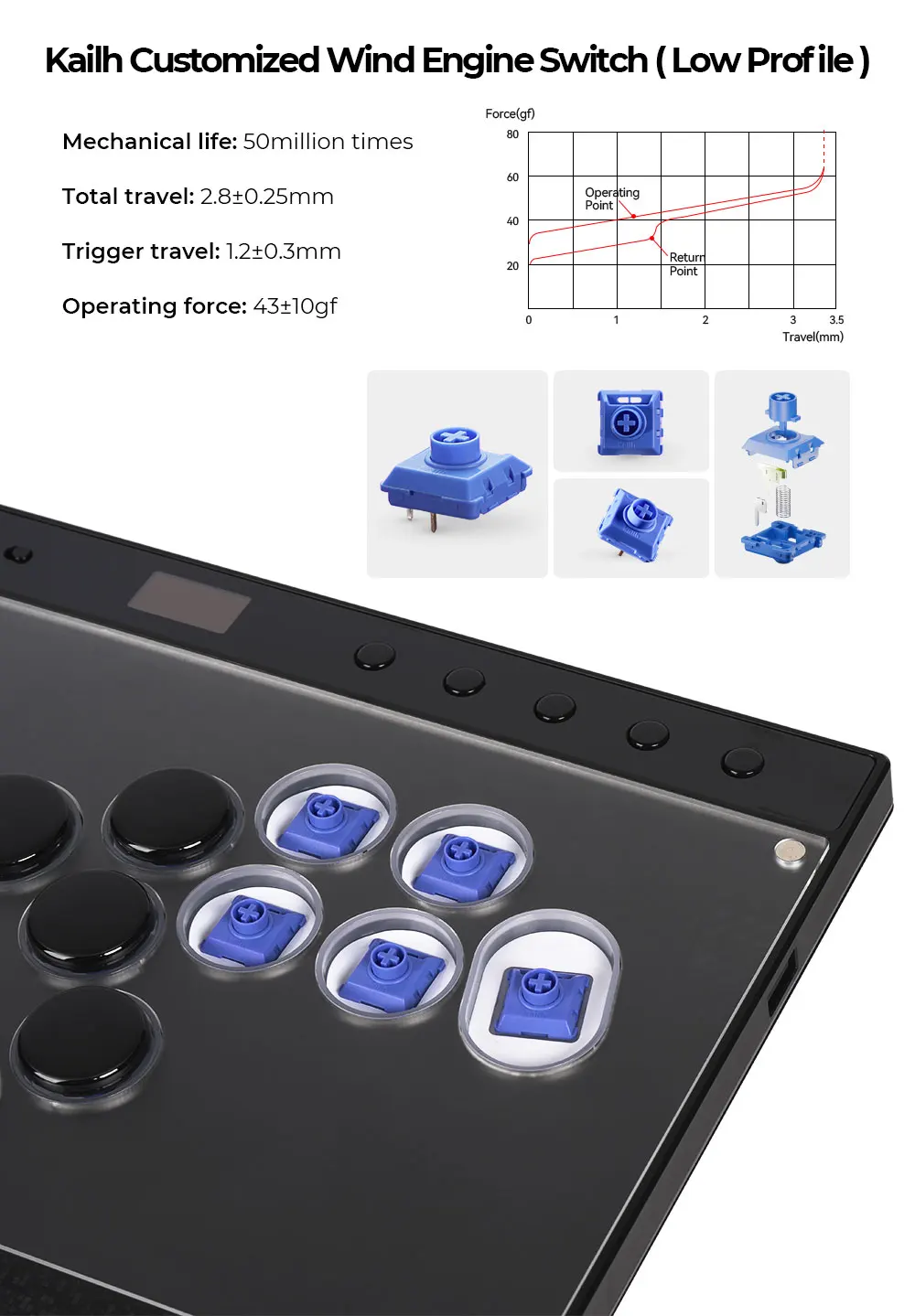

Product Specifications: Keyboard*1 ,Data Cable (3M) *1 Keycap Puller*1, Art Templates*6,Wind Engine Switch*2

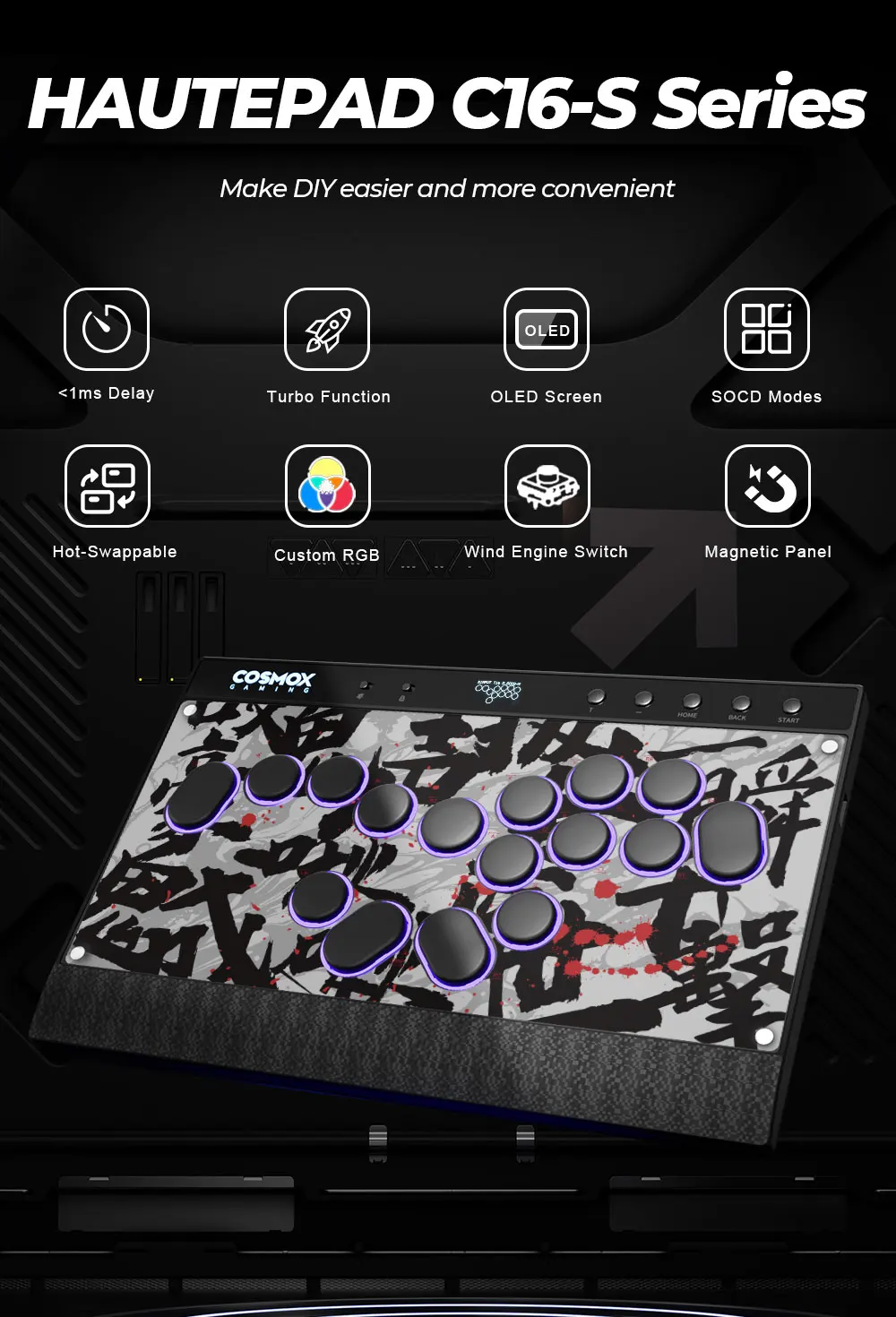

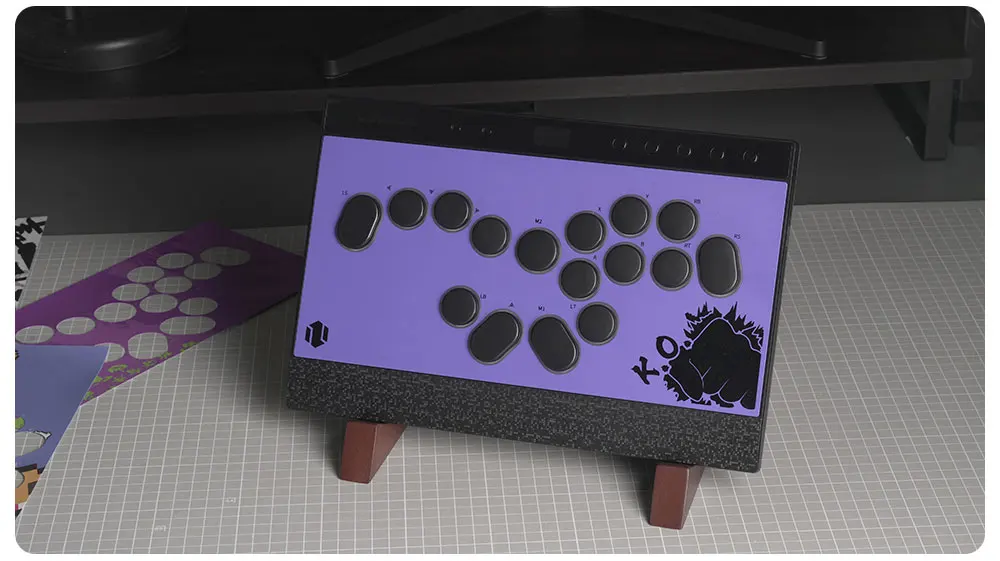

HautePad C16-S

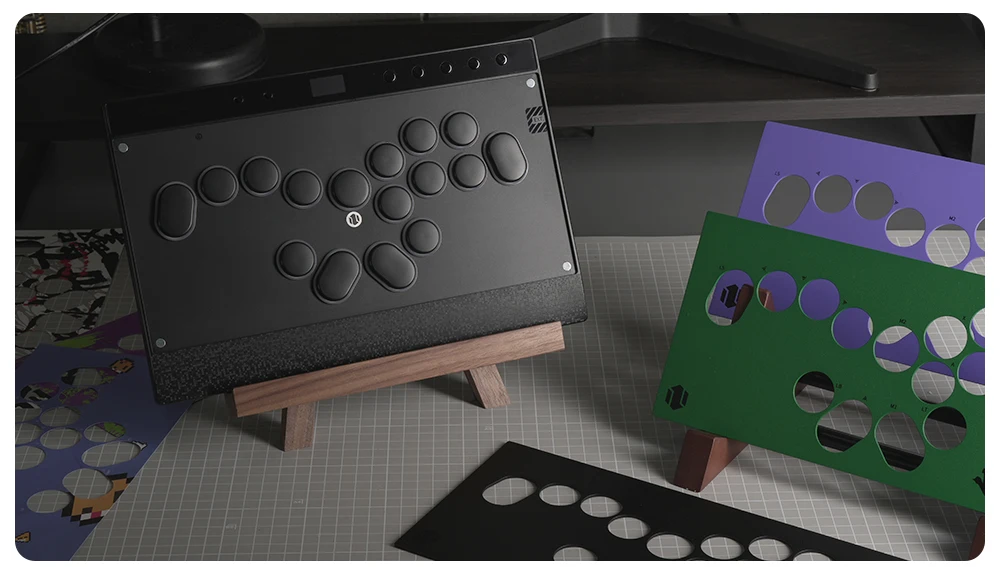

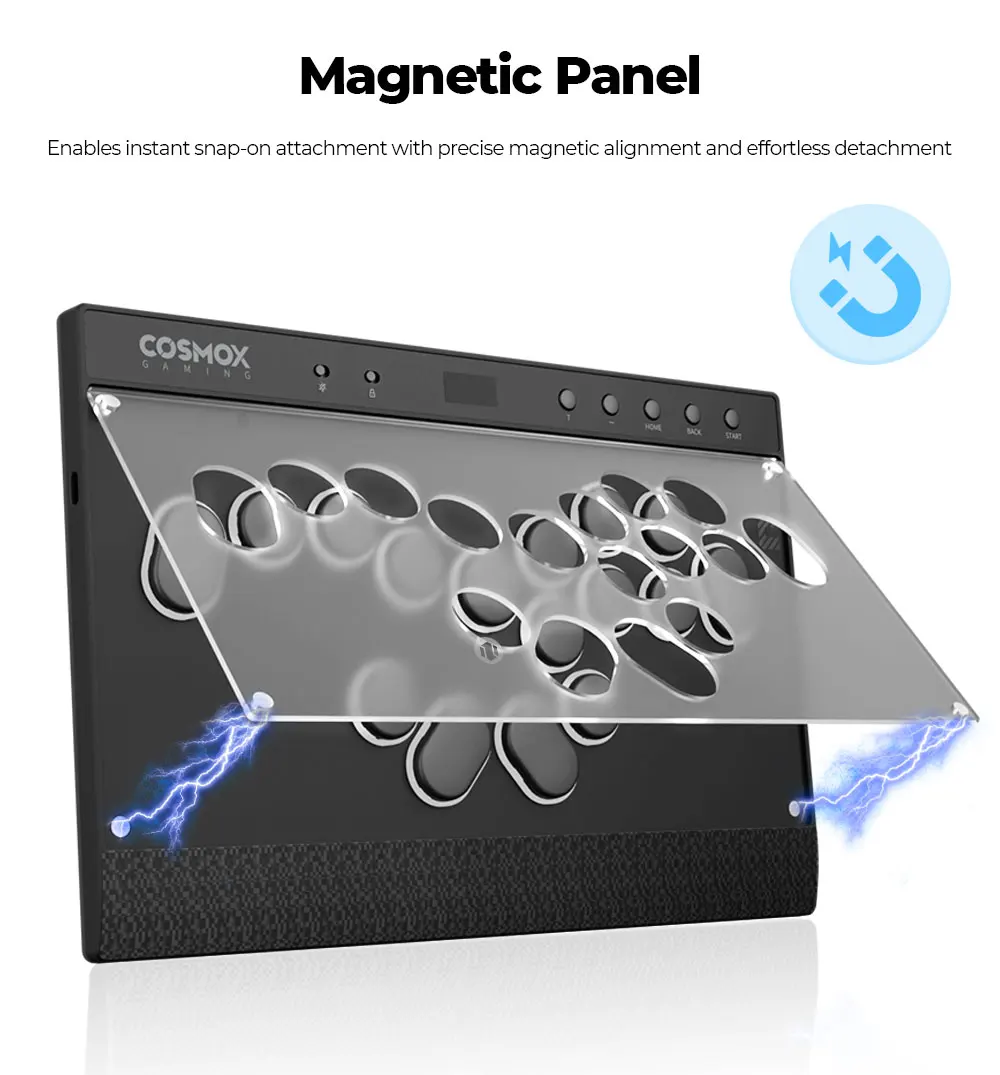

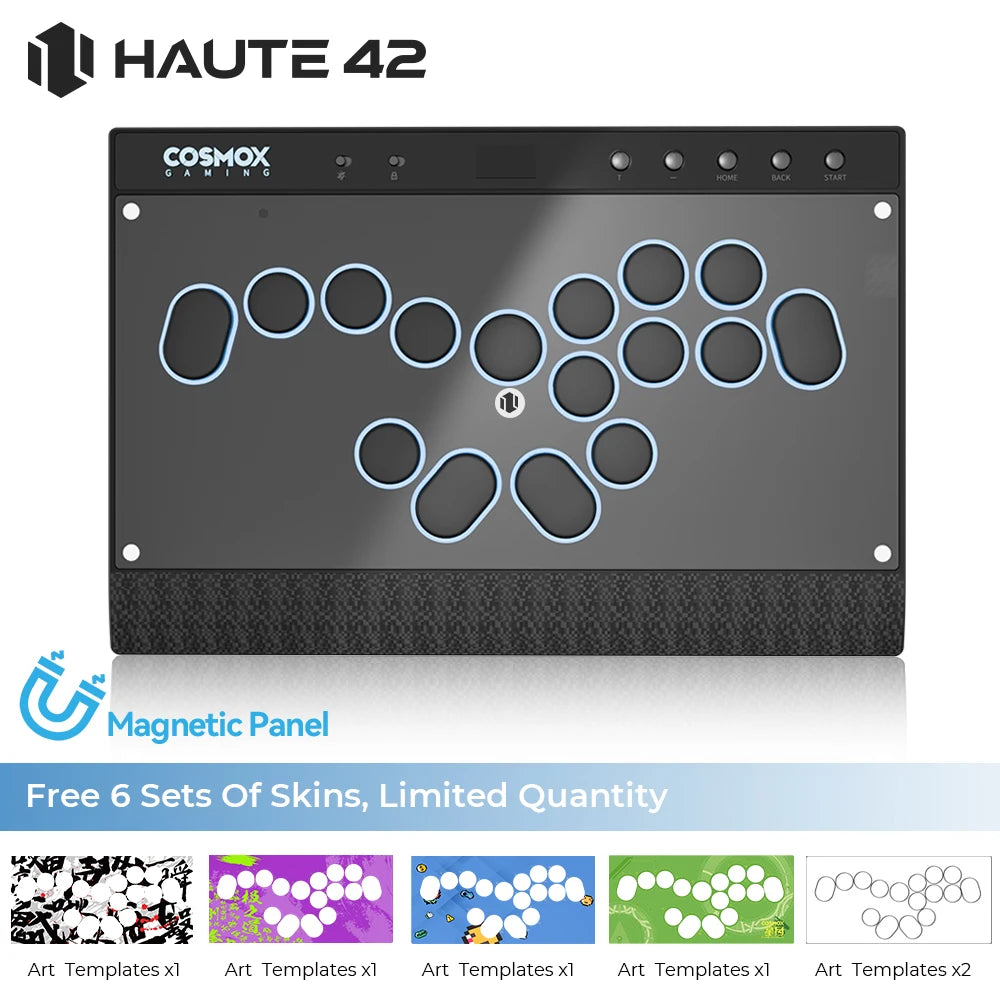

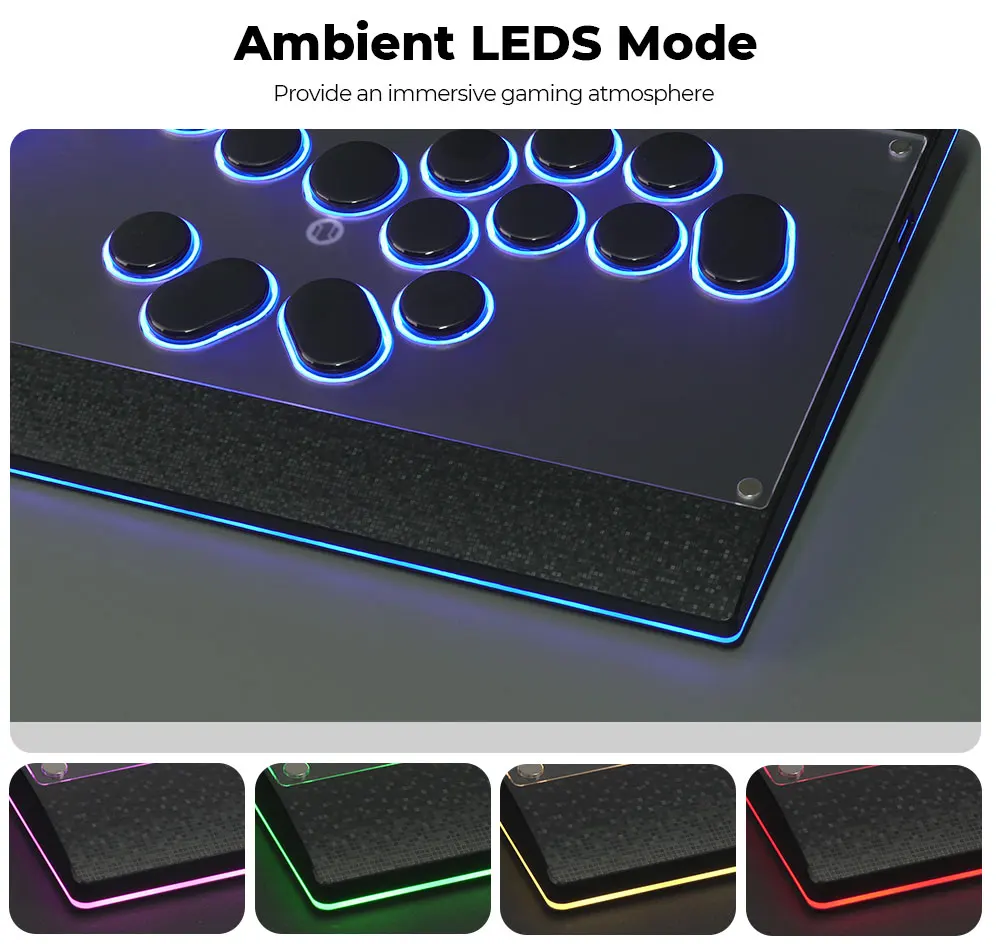

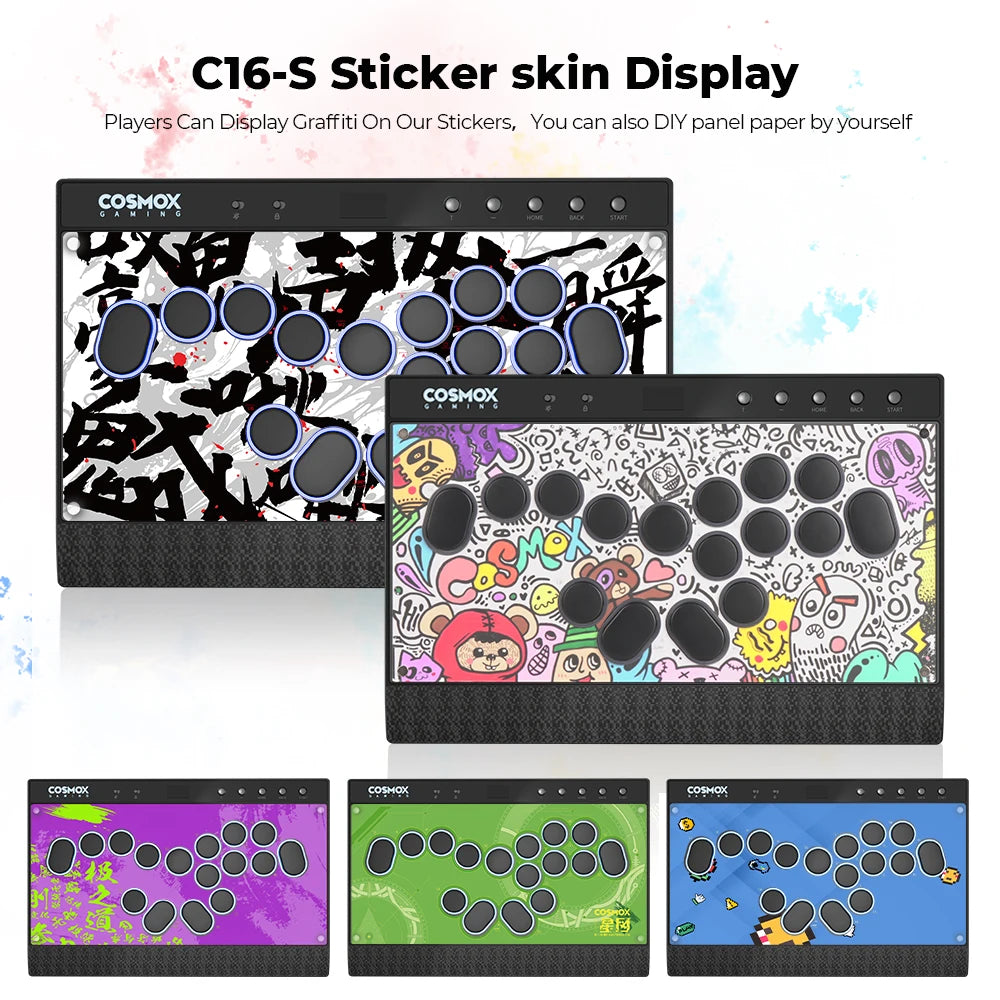

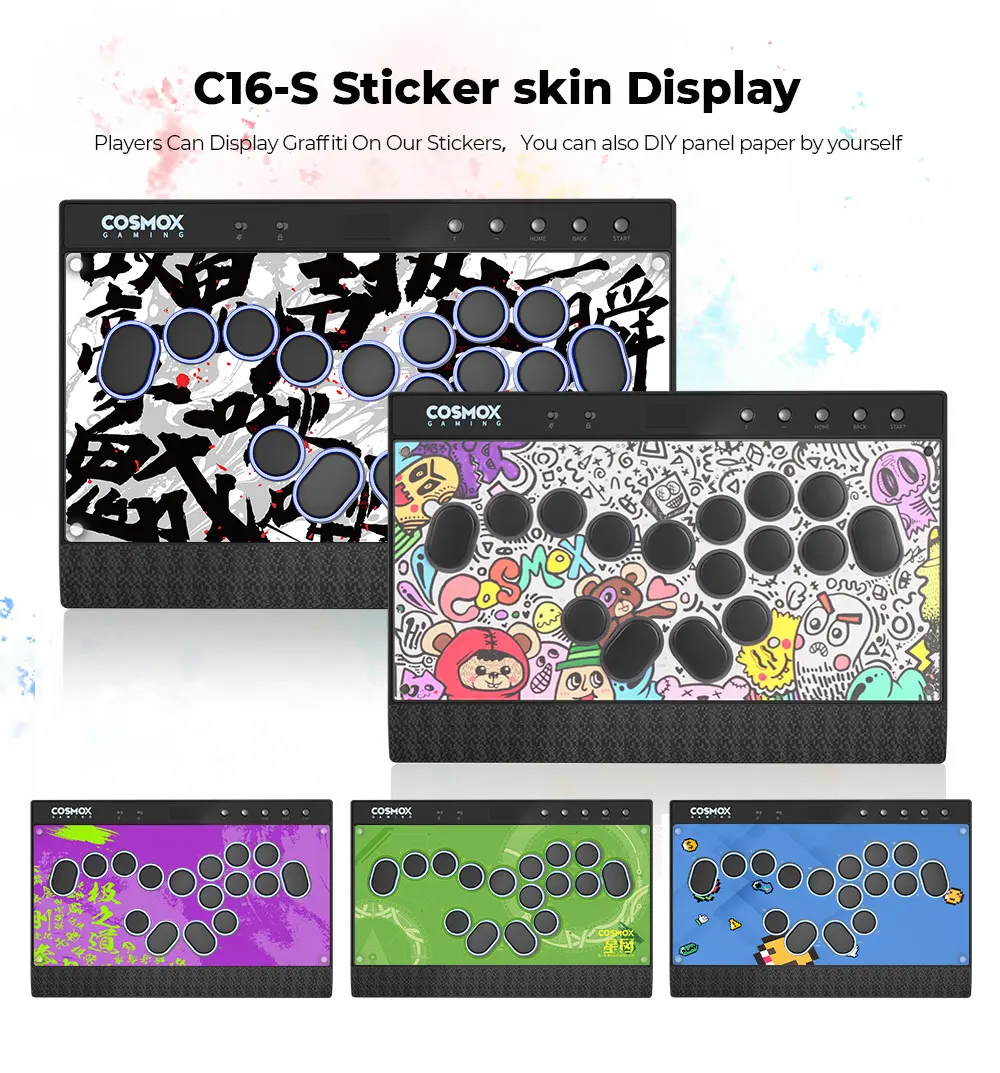

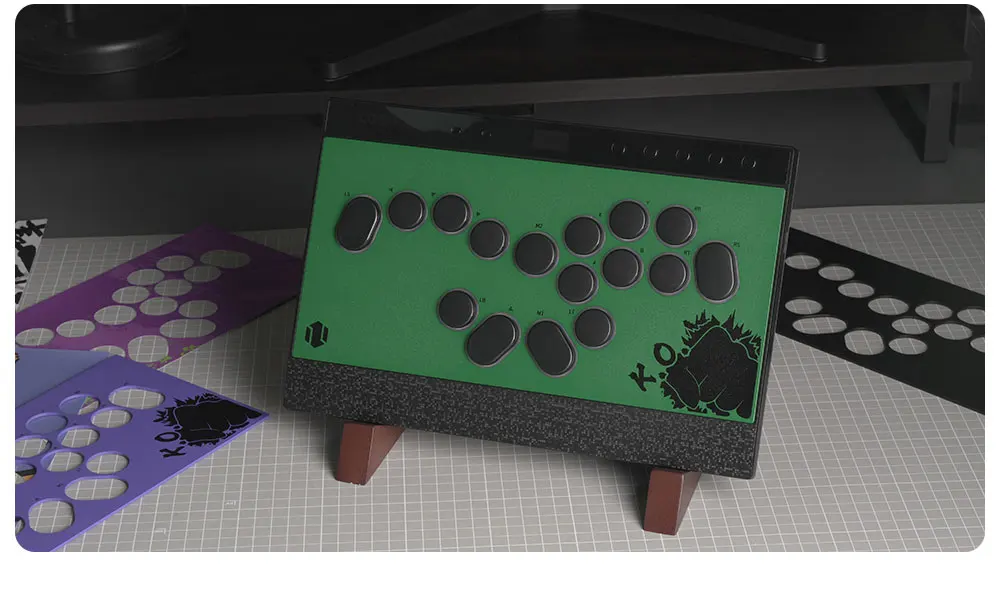

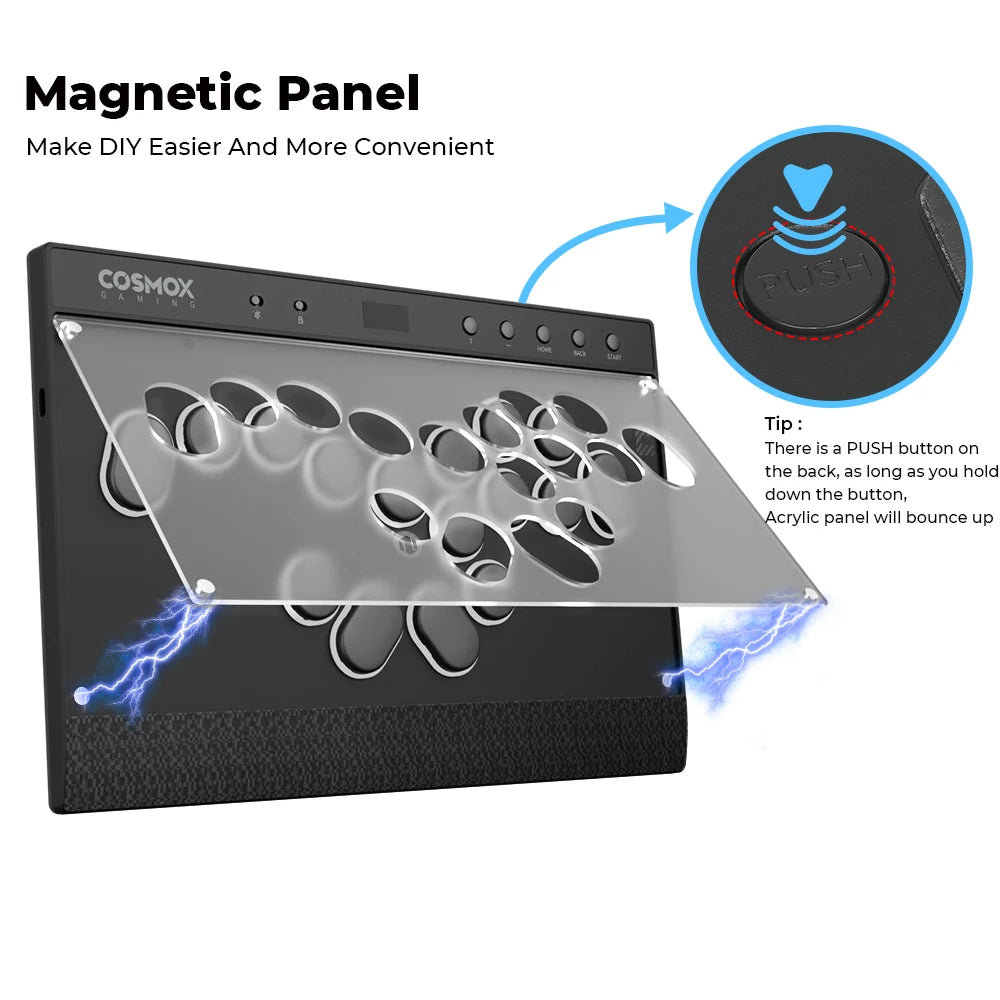

Magnetic Panel Design, Make DlY Easier And More Convenient，Newly Upgraded RGB Rim And Ambient LEDS Includes 6 sheets of DIY panel paper,

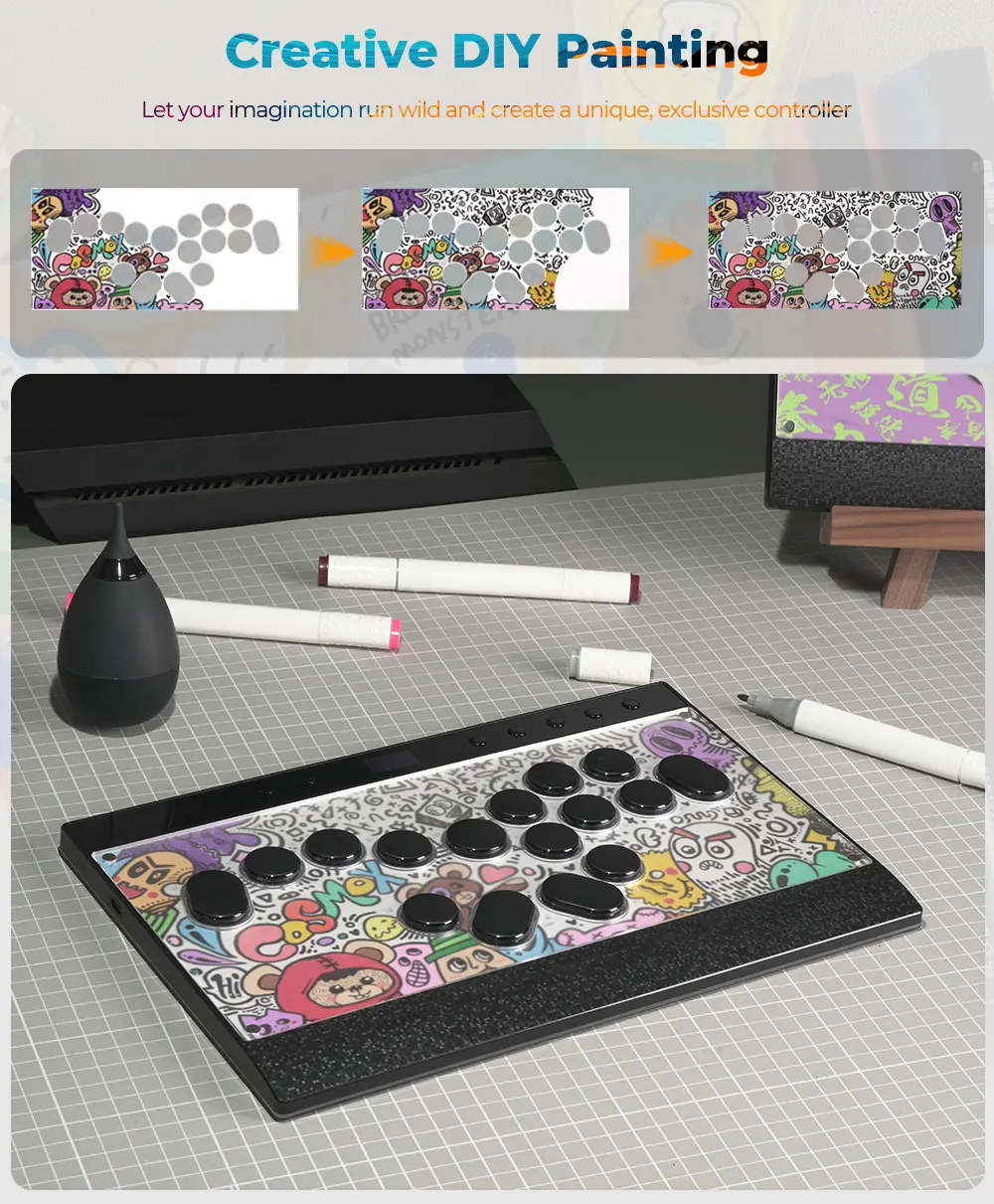

Realize DIY freedom and graffiti,

Show off your creative talent

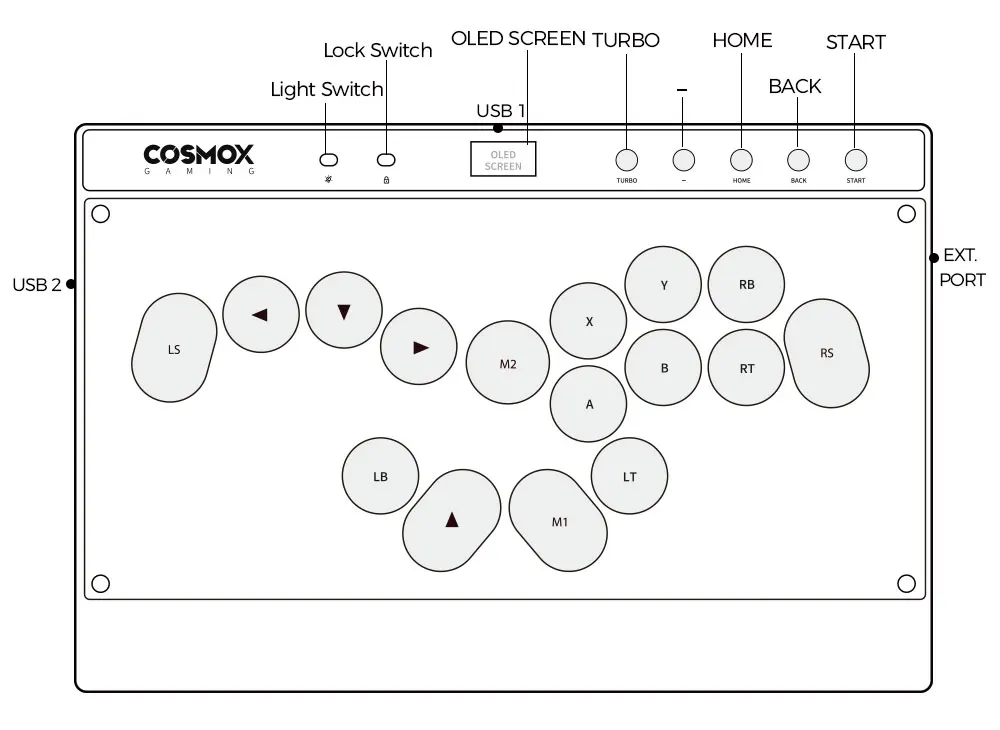

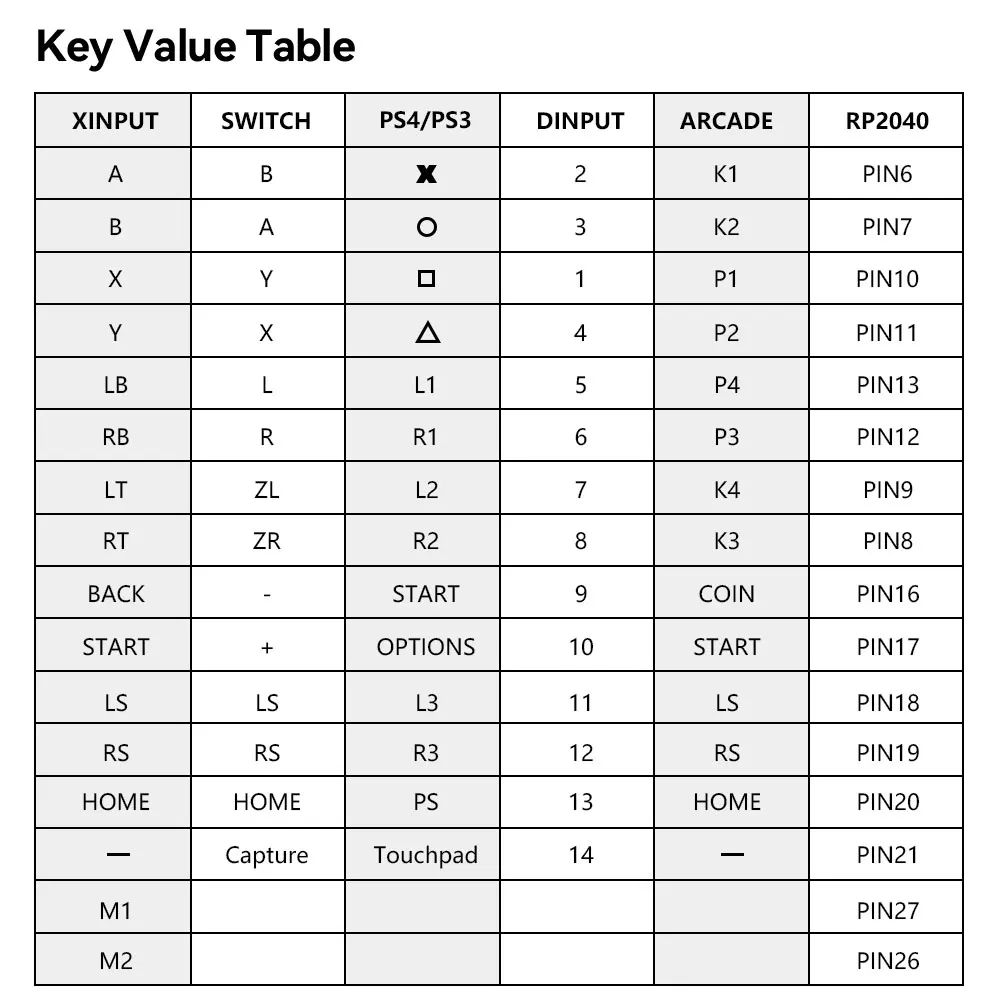

01 Compatibility

B — Xinput mode (Windows/Steam)

A — SWITCH mode

X — PS3 / Dinput mode (Raspberry Pi / Android)

Y — PS4 mode (Compatible with PS4 games on PS5 console）

RT — KEYBOARD mode

Input Mode

To change the input mode, hold one of the buttons(as shown above) as the controller is plugged in.

Tips：

This product defaults to Xinput mode，Input mode is saved across power cycles.

If there are games that do not compatible the above input modes , you can enter the Web Configurator to modify them for normal use.

PS4 /PS5 Mode

About PS4 /PS5 8 minute disconnection，there are two ways， one is insert a dongle or a officially authorized PS4 wired controller to the EXT.port，We don't have a recommend one，there are too many choices，maybe you can add our discord with other nice players in haute42 group，oficial Website：www.haute42.com

Web Configurator

This product contains a built-in web-based configuration application which can be started up by holding START when plugging your controller into a PC. Then access http://192.168.7.1 in a web browser to begin configuration.

TURBO

Hold TURBO，then press the button which you need to be set for turbo function，then this button will be continuous sending while you press it,to cancel this turbo key，just repeat the privious step.

The turbo key that set will be cleard when power off.

These keys can be set as a Turbo key: A / B / X / Y / LB / RB / LT / RT

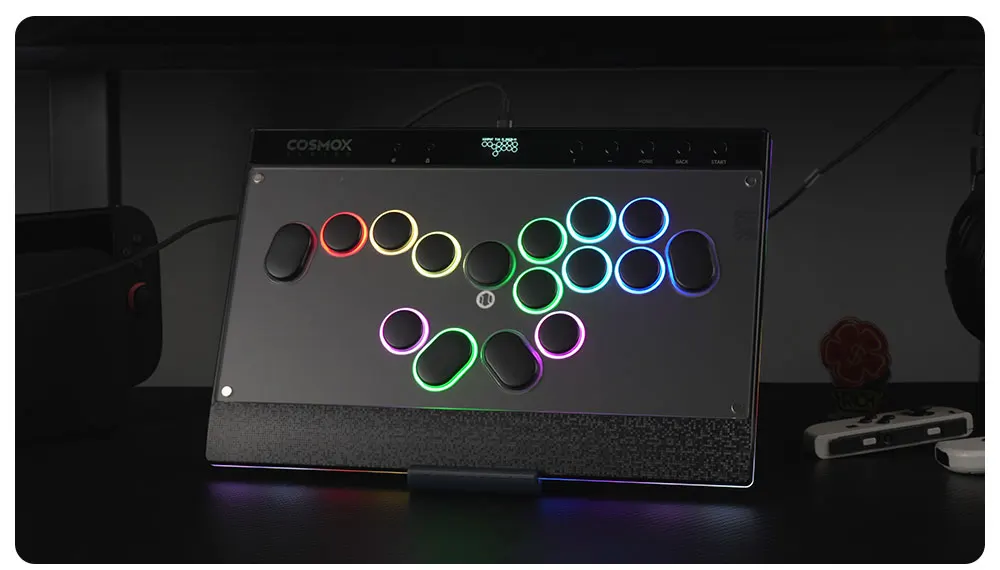

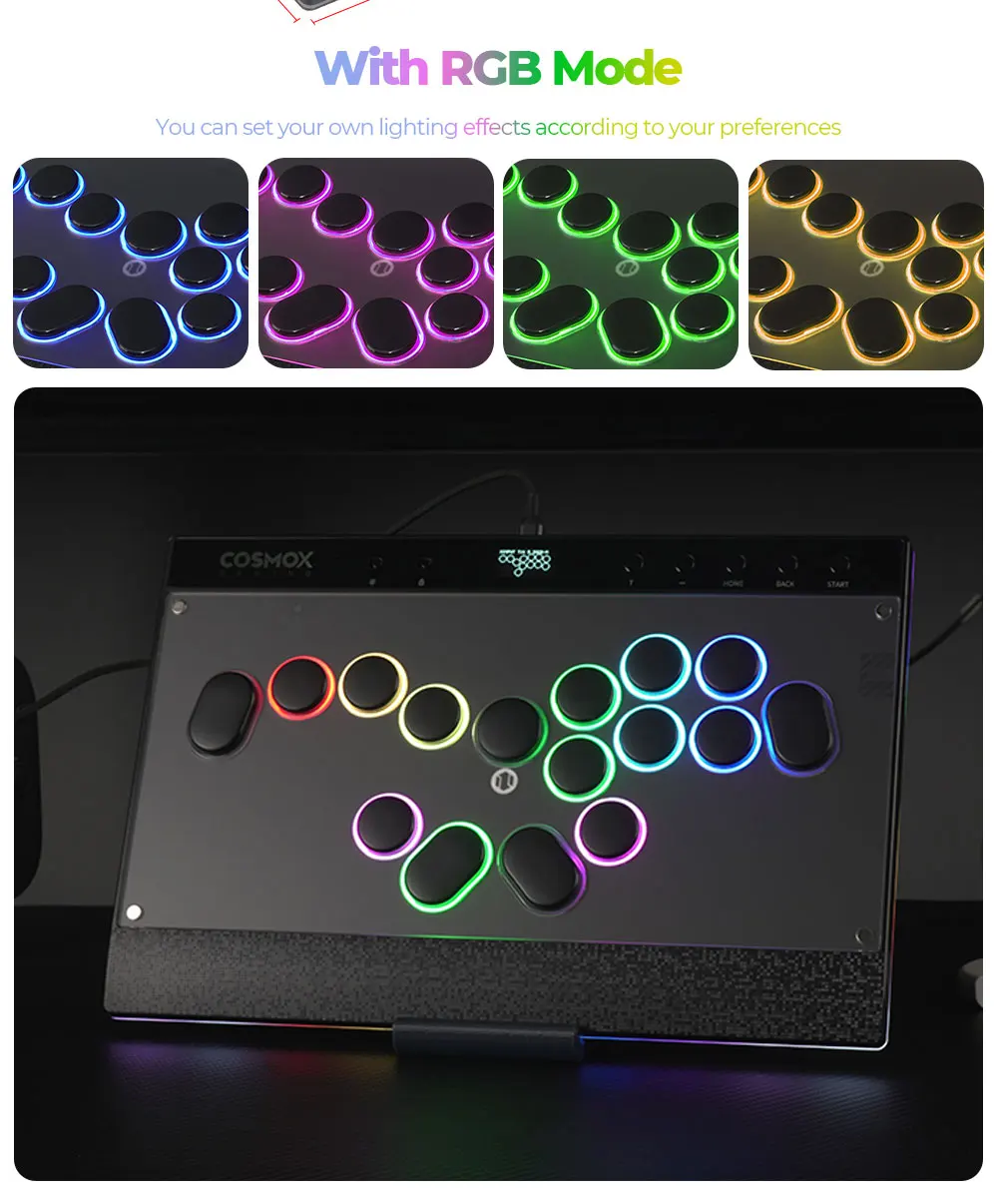

04 RGB LED Setting

●BACK + START + X Next Animation

●BACK + START + A Previous Animation

●BACK + START + Y Brightness Up

●BACK + START + B Brightness Down

●BACK + START + RB LED Parameter Up

●BACK + START + RT LED Parameter Down

●BACK + START + LB Pressed Parameter Up

●BACK + START + LT Pressed Parameter Down
